AIR CLEANER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

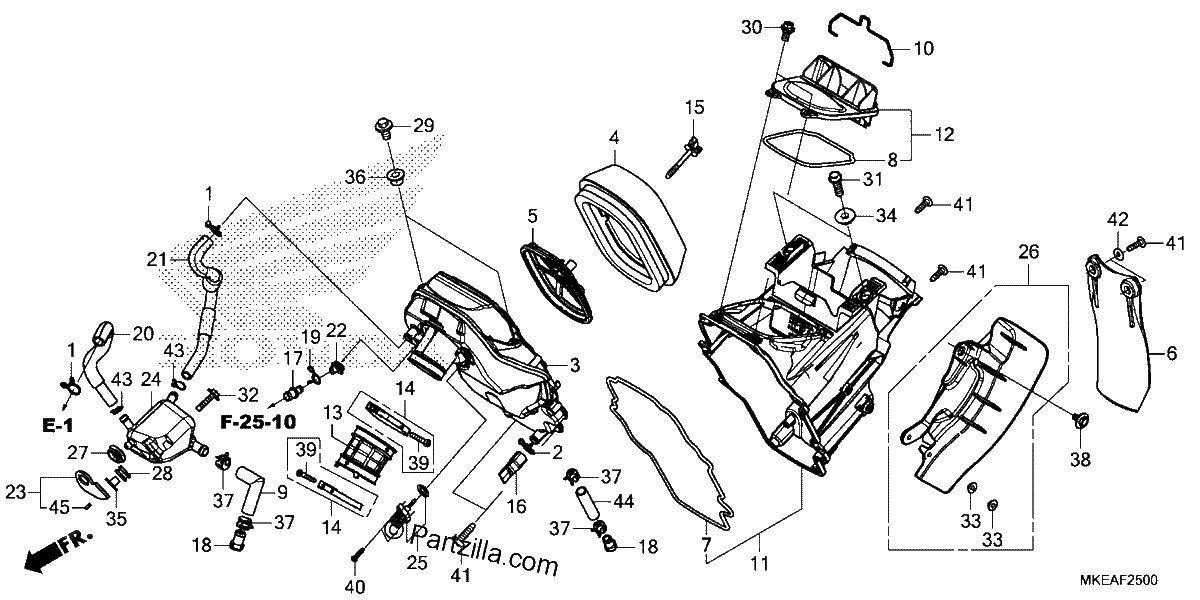

Diagrama de AIR CLEANER

Repuestos

#001
15771-551-000
CLIP, OIL DRAIN TUBE
$11.05¢5 525
1
#002
15772-551-000
CLIP, BREATHER TUBE
$2.44¢1 219
1
#003
17210-MKE-A51
HOUSING, AIR CLEANER
$152.89¢76 444
1
#004
17213-MKE-A50
ELEMENT, AIR CLEANER
$61.24¢30 619
1
#005
17214-MKE-A51
BASE ASSY., ELEMENT
$37.88¢18 938
1
#006
17218-MKE-A00
SPLASH GUARD
$49.00¢24 500
1
#007
17226-MKE-A50
SEAL, AIR CLEANER HOUSING
$10.04¢5 019
1
#008
17227-MKE-A50
SEAL, AIR CLEANER LID
$4.77¢2 387
1
#009
17227-MKJ-D00
TUBE, DRAIN
$10.55¢5 275
1
#010
17229-MKE-A50
SPRING, AIR CLEANER LID
$10.61¢5 306
1
#011
17233-MKE-A50
CASE SUB-ASSY., AIR CLEANER (RR)
$122.93¢61 463
1
#012
17234-MKE-A50
LID SUB-ASSY., AIR CLEANER
$41.50¢20 750
1
#013
17253-MKE-A50
TUBE, AIR CLEANER CONNECTING
$33.71¢16 856
1
#014
17255-MEN-A70
BAND, AIR CLEANER CONNECTING TUBE (60MM)
$20.45¢10 225
1
#015
17291-KSC-000
BOLT, ELEMENT SETTING
$8.44¢4 219
1
#016
17358-HA0-680
TUBE, DRAIN
$5.99¢2 994
1
#016
17358-HM8-000
TUBE, DRAIN
$5.99¢2 994
1
#017
17359-MAG-L00
JOINT, BREATHER TUBE
$6.39¢3 194
1
#018
17370-382-870
PLUG, BREATHER TUBE
$4.54¢2 269
1
#019
17371-174-670
CLIP, BREATHER TUBE
$2.82¢1 412
1
#020
17372-MKE-A50
TUBE A, BREATHER
$17.76¢8 881
1
#021
17373-MKE-A50
TUBE B, BREATHER
$31.11¢15 556
1
#022
17375-MKE-A50
JOINT, TUBE
$9.65¢4 825
1
#023
17521-MKE-A50
STAY, BREATHER TANK
$9.26¢4 631
1
#024
17551-MKE-A50
TANK, BREATHER
$50.23¢25 113
1
#025
37880-KWW-C01
SENSOR ASSY., AIR TEMPERATURE
$51.75¢25 875
1
#026
50335-MKE-A50
BOX Assembly., FUSE
$42.31¢21 156
1
#027
64266-MG9-770
GROMMET, SPEAKER PANEL
$3.65¢1 825
1
#028
80101-165-000
RUBBER, Rear FENDER CUSHION
$4.53¢2 263
1
#029
90020-GHB-640
BOLT, FLANGE (6X16)
$2.91¢1 456
1
#030
90101-ML3-840
BOLT, SHROUD SETTING
$5.15¢2 575
1
#031
90105-MEN-A60
BOLT (6X18)
$2.82¢1 412
1
#032
90116-MKE-A50
BOLT-WASHER (6X28)
$3.33¢1 663
1
#033
90127-KF0-770
COLLAR (6X4)
$4.15¢2 075
1
#034
90501-KZ4-J20
COLLAR A
$4.44¢2 219
1
#035
90502-GG2-000
COLLAR, RR. FENDER
$6.96¢3 481
1
#036
90503-MEY-670
COLLAR, FR. ENGINE GUARD
$4.45¢2 225
1
#037
91406-MS8-000
CLAMP, TUBE (D14.5)
$4.71¢2 356
1
#038
93404-06012-07
BOLT-WASHER (6X12)
$1.99¢994
1
#038
93404-06012-08
BOLT-WASHER (6X12)
$1.99¢994
1
#039
93500-04030-0G
SCREW, PAN (4X30)
$4.34¢2 169
1
#040
93911-25520
SCREW, TAPPING (5X20)
$1.00¢500
1
#041
93913-25580
SCREW, TAPPING (5X20)
$1.25¢625
1
#042
94103-05700
WASHER, PLAIN (5MM)
$1.21¢606
1
#043
95002-02130
CLIP, TUBE (B12.5)
$1.47¢737
1
#044
95003-37006-31
TUBE, VINYL (11X15X60) (95003-37001-60M) (NA USE ALT: 95003-37001-60M)
No Disponible
1
#045
96220-30080
ROLLER (3X8)
$0.41¢206
1
