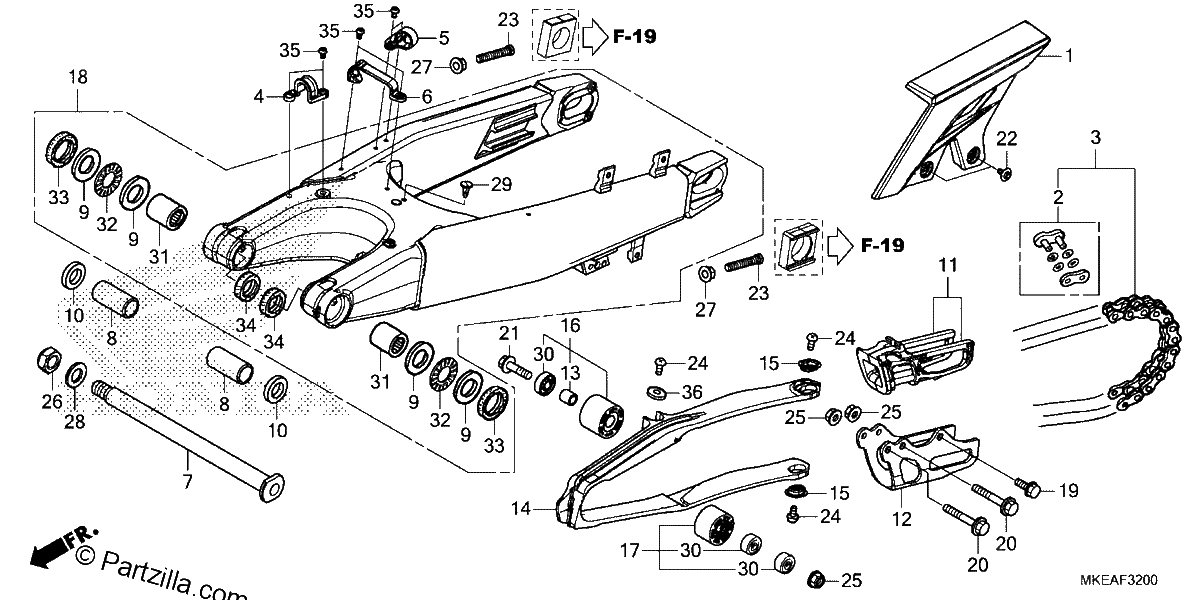

SWINGARM
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
CASE, DRIVE CHAIN
$86.42¢43 211
#002
MASTER LINK (RK)(SEAL TYPE)
$8.13¢4 065
#003
CHAIN, DRIVE (RK520EXU-120-LJFZ) (RK) (STANDARD LINK 114L)
$239.17¢119 583
#004
GUIDE, BRAKE HOSE
$10.29¢5 146
#005
GUIDE A, BRAKE HOSE
$4.91¢2 455
#006
GUIDE B, BRAKE HOSE
$6.43¢3 214
#007
SHAFT, SWINGARM PIVOT
$27.32¢13 662
#008
COLLAR, SWINGARM (45MM)
$26.90¢13 449
#009
WASHER, SWINGARM SIDE THRUST
$2.28¢1 138
#010
COLLAR, SWINGARM PIVOT SIDE
$11.59¢5 796
#011
GUIDE SET, CHAIN
$34.11¢17 054
#012
PLATE, CHAIN GUIDE
$50.62¢25 312
#013
COLLAR, CHAIN TENSIONER
$3.22¢1 610
#014
SLIDER, CHAIN
$97.65¢48 823
#015
WASHER, CHAIN SLIDER
$3.06¢1 529
#016
ROLLER, CHAIN (34MM)
$64.22¢32 108
#017
ROLLER, CHAIN (LOWER) (34MM)
$64.22¢32 108
#018
SWINGARM SUB-Assembly., Rear. NH900L (DEEP BLACK)
$1220.66¢610 328
#019
BOLT, FLANGE (6X12)
$2.54¢1 271
#020
BOLT, FLANGE (6X45)
$3.21¢1 604
#021
BOLT, FLANGE (8X32)
$3.90¢1 949
#022
BOLT, SPECIAL (6MM)
$3.36¢1 679
#023
BOLT, HEX. (8X47.5)
$3.36¢1 679
#024
SCREW, PAN (5X8)
$3.09¢1 547
#025
NUT, U (6MM) (FUSE RASHI)
$4.54¢2 271
#026
NUT, U HEX. (14MM)
$6.49¢3 243
#027
NUT, HEX. (8MM)
$3.79¢1 897
#028
WASHER (26X14X2.8)
$7.41¢3 703
#028
WASHER (14MM)
$7.41¢3 703
#029
CLIP, TRIM (5MM) *NH900L*(DEEP BLACK)
$7.61¢3 807
#030
BEARING, RADIAL BALL (608UU)
$15.71¢7 855
#031
BEARING, NEEDLE (22X29X30) (NTN)
$46.30¢23 149
#031
BEARING, NEEDLE (THOMPSON)
$39.35¢19 676
#032
BEARING, NEEDLE THRUST
$14.37¢7 187
#033
DUST SEAL (30X37X3)
$7.35¢3 674
#034
DUST SEAL (22X29X3)
$5.91¢2 956
#035
SCREW, PAN (5X8)
$1.07¢535
#036
WASHER, PLAIN (5MM)
$1.12¢558
