LEFT CRANKCASE COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

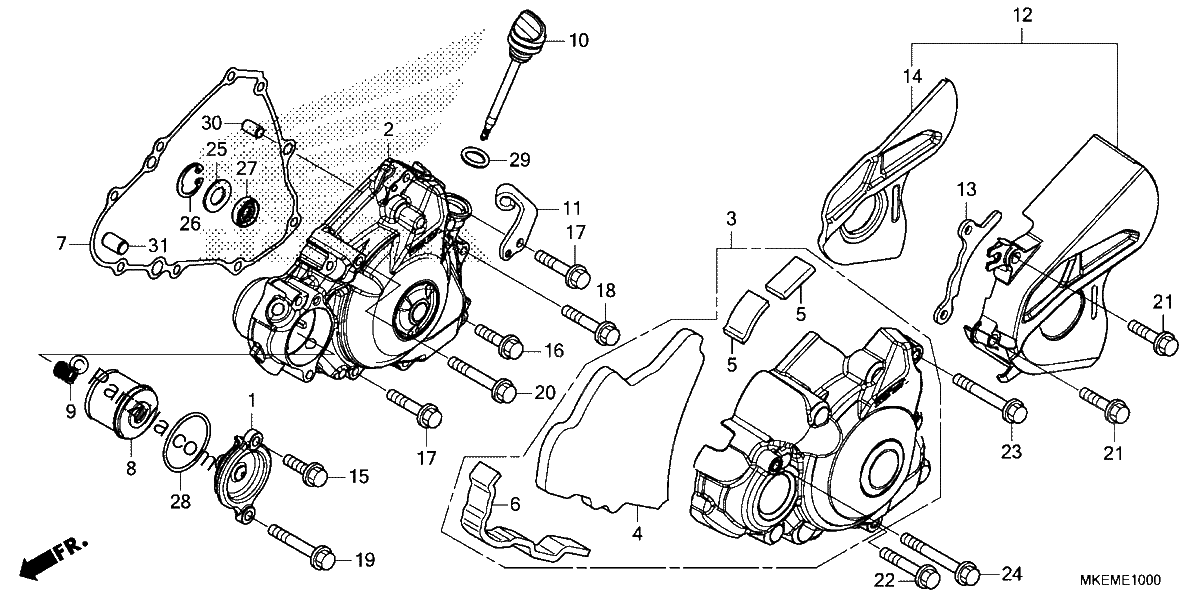

Diagrama de LEFT CRANKCASE COVER

Repuestos

#001
11333-MKE-A00
COVER, OIL FILTER
$44.41¢22 207
1
#002
11340-MKE-A50
COVER, L CRANKCASE
$281.43¢140 714
1
#003
11370-MKE-A50
OVER COVER, L CRANKCASE
$87.85¢43 924
1
#004
11376-MKE-A50
MAT A, L COVER
$6.73¢3 364
1
#005
11377-MKE-A50
MAT B, L. COVER
$1.07¢535
1
#006
11378-MKE-A50
MAT C, L COVER
$4.37¢2 185
1
#007
11395-MKE-A01
GASKET, L. COVER
$20.24¢10 120
1
#008
15412-MEN-671
FILTER, ENGINE OIL
$8.38¢4 192
1
#009
15414-MEB-670
SPRING, OIL FILTER
$3.10¢1 553
1
#010
15651-MKE-A50
DIPSTICK, OIL
$11.11¢5 555
1
#011
22838-MKE-A00
RECEIVER, CLUTCH CABLE
$7.99¢3 996
1
#012
23810-MKE-AD0
COVER, DRIVE SPROCKET
$72.79¢36 397
1
#013
23812-MKE-A50
GUIDE, DRIVE CHAIN
$11.99¢5 997
1
#014
23813-MKE-AD0
RUBBER, DRIVE SPROCKET COVER
$35.74¢17 871
1
#015
90020-GHB-650
BOLT, FLANGE (6X18)
$2.75¢1 374
1
#016
90020-GHB-680
BOLT, FLANGE (6X25)
$2.68¢1 340
1
#017
90020-GHB-720
BOLT, FLANGE (6X35)
$2.94¢1 472
1
#018
90020-GHB-740
BOLT, FLANGE (6X40)
$3.15¢1 576
1
#019
90020-GHB-760
BOLT, FLANGE (6X50)
$3.36¢1 679
1
#020
90020-GHB-770
BOLT, FLANGE (6X55)
$3.53¢1 765
1
#021
90021-GHB-700
BOLT, FLANGE (6X30)
$2.75¢1 374
1
#022
90025-GHB-750
BOLT, FLANGE (6X45)
$3.36¢1 679
1
#023
90025-GHB-780
BOLT, FLANGE (6X60)
$3.62¢1 811
1
#024
90025-GHB-790
BOLT, FLANGE (6X65)
$3.98¢1 989
1
#025
90401-MEY-670
WASHER (13X24X1.6)
$2.33¢1 167
1
#026
90602-MEB-670
CIRCLIP, SPECIAL INNER (24MM)
$3.42¢1 708
1
#027
91204-MEN-A31
OIL SEAL (10X21X5)
$4.30¢2 151
1
#028
91302-PA9-003
O-RING (39.8X2.2) (ARAI)
$5.98¢2 990
1
#029
91307-KRN-A41
D-RING (14X3)
$3.36¢1 679
1
#030
94301-08140
PIN, DOWEL (8X14)
$2.66¢1 328
1
#031
94301-10160
PIN, DOWEL (10X16)
$2.69¢1 346
1
