RIGHT CRANKCASE COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

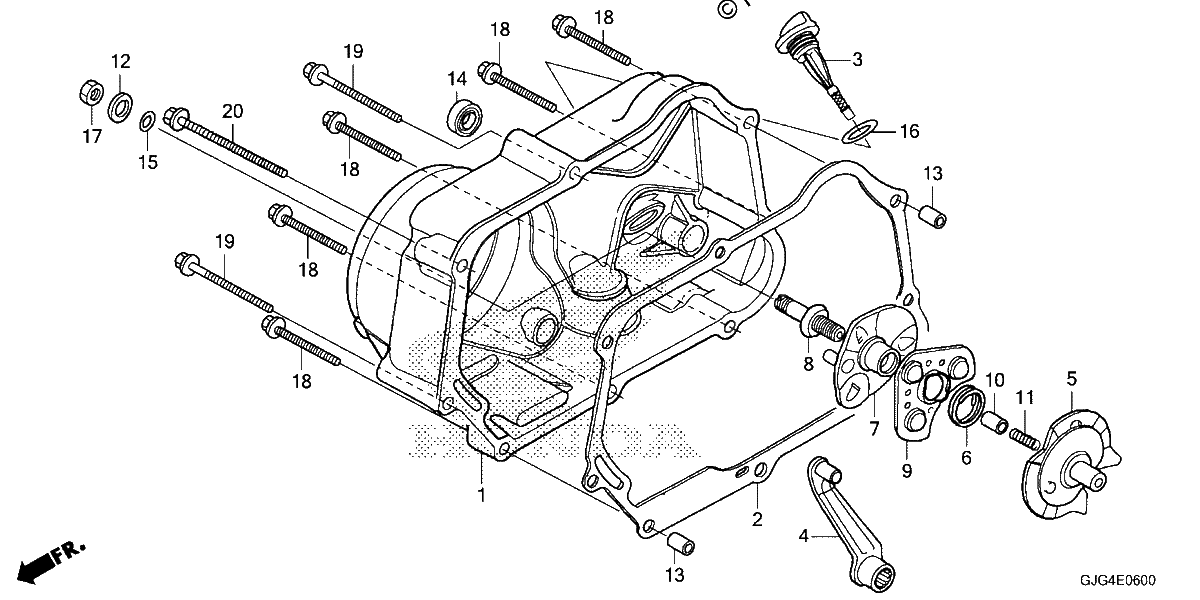

Diagrama de RIGHT CRANKCASE COVER

Repuestos

#001
11330-GEL-A80
COVER, R. CRANKCASE
$195.43¢97 713
1
#002
11394-GW8-681
GASKET, R. CRANKCASE COVER
$15.75¢7 875
1
#003
15651-179-701
DIPSTICK, OIL
$12.71¢6 356
1
#004
22810-GEL-A80
LEVER, CLUTCH
$41.31¢20 656
1
#005
22820-GEL-A80
PLATE, CLUTCH CAM
$24.67¢12 337
1
#006
22825-GEL-A80
SPRING, CAM PLATE SIDE
$4.10¢2 050
1
#007
22830-GEL-A80
PLATE, CLUTCH LIFTER
$19.75¢9 875
1
#008
22846-GEL-A80
BOLT, CLUTCH ADJUSTING
$5.86¢2 931
1
#009
22860-GEL-A80
RETAINER, BALL
$9.39¢4 694
1
#010
25551-GEL-A80
THROUGH, OIL
$7.09¢3 544
1
#011
25555-GEL-A80
SPRING, OIL THROUGH
$2.89¢1 444
1
#012
90485-KVR-C00
WASHER (8MM)
$3.63¢1 813
1
#013
90702-KVR-C00
PIN, DOWEL SPECIAL (8X12)
$5.64¢2 819
1
#014
91202-302-010
OIL SEAL (13.8X24X5)
$6.11¢3 056
1
#014
91202-KFL-841
OIL SEAL (13.8X24X5)
$6.11¢3 056
1
#014
91205-HB2-771
OIL SEAL (13.8X24X5)
$6.11¢3 056
1
#014
91205-HB2-772
OIL SEAL (13.8X24X5)
$6.11¢3 056
1
#015
91303-001-010
O-RING (8MM)
$3.11¢1 556
1
#016
91307-KRM-840
O-RING (18X3)
$1.06¢531
1
#017
94030-08000
NUT, HEX. (8MM)
$1.38¢688
1
#018
96001-06040-00
BOLT, FLANGE (6X40)
$2.79¢1 394
1
#019
96001-06065-00
BOLT, FLANGE (6X65)
$3.01¢1 506
1
#020
96001-06080-00
BOLT, FLANGE (6X80)
$2.85¢1 425
1
