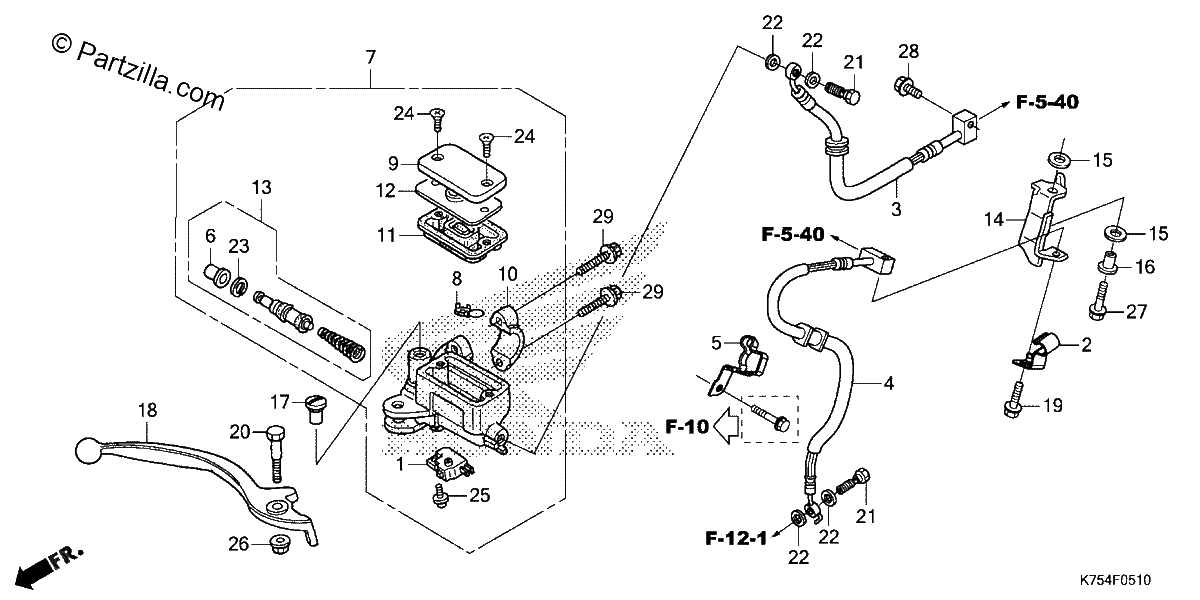

FRONT BRAKE MASTER CYLINDER 2
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
SWITCH Assembly., Front STOP (ALPS)
$19.77¢9 884
#002
CLAMP, SPEED SENSOR WIRE (FR)
$3.00¢1 501
#003
HOSE B, Front BRAKE
$35.91¢17 957
#004
HOSE A, FR. BRAKE
$41.64¢20 821
#005
CLAMP B, Front BRAKE HOSE
$7.01¢3 507
#006
BOOT
$13.10¢6 549
#007
MASTER CYLINDER SUB-Assembly., Front BRAKE (NISSIN)
$128.67¢64 337
#008
PROTECTOR
$4.78¢2 392
#009
CAP, MASTER CYLINDER (COO)
$4.63¢2 317
#009
CAP, MASTER CYLINDER
$4.63¢2 317
#010
HOLDER, MASTER CYLINDER
$14.48¢7 239
#011
DIAPHRAGM
$10.00¢5 002
#012
PLATE, DIAPHRAGM
$2.69¢1 346
#013
MASTER CYLINDER SET
$42.69¢21 344
#014
STAY, FR. BRAKE HOSE
$31.35¢15 675
#015
WASHER, RUBBER
$0.85¢426
#016
COLLAR, JOINT STAY MOUNTING (TWO-WAY)
$4.92¢2 461
#017
PLUG, HANDLE LEVER BRACKET
$2.94¢1 472
#018
LEVER, Right HANDLEBAR (COO)
$17.73¢8 866
#018
LEVER, R. HANDLEBAR
$17.73¢8 866
#019
BOLT, FLANGE (6X18)
$3.36¢1 679
#020
BOLT, HANDLE LEVER PIVOT
$7.24¢3 622
#021
BOLT, OIL (10X22)
$8.18¢4 088
#022
WASHER, OIL BOLT
$4.46¢2 231
#023
CIRCLIP
$2.85¢1 426
#024
SCREW, FLAT (4X12)
$1.07¢535
#024
SCREW, FLAT (4X12)
$1.07¢535
#025
SCREW-WASHER (4X12)
$1.59¢793
#025
SCREW-WASHER (4X12)
$1.59¢793
#026
NUT, FLANGE (6MM)
$0.74¢368
#027
BOLT, FLANGE (6X20)
$1.92¢960
#028
BOLT, FLANGE (6X12)
$2.13¢1 064
#029
BOLT, FLANGE (6X22)
$2.75¢1 374
