SHELTER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

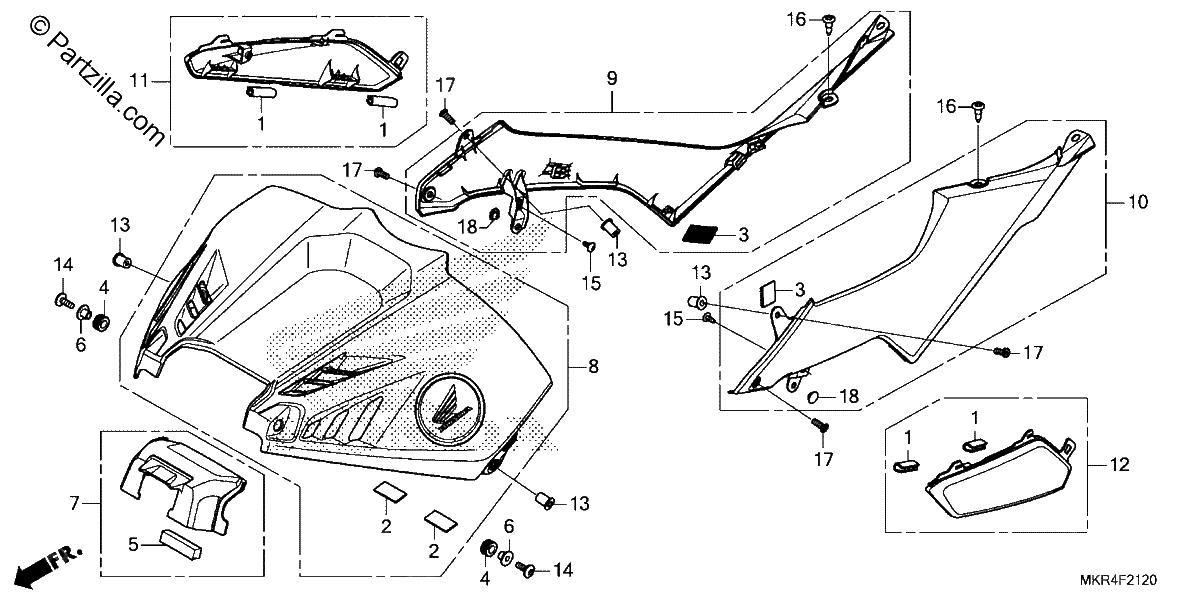

Diagrama de SHELTER

Repuestos

#001
17516-HC4-000
TRIM, FUEL TANK
$5.09¢2 547
1
#002
17542-K64-N00
FASTENER B, DUAL LOCK (15X30)
$4.19¢2 093
1
#003
17581-MGZ-J00
FASTENER B, DUAL LOCK (20X30)
$2.81¢1 403
1
#004
19639-GBC-000
RUBBER, MOUNTING
$1.66¢828
1
#005
64604-MFJ-J00
MAT C, L. RR. COVER (LOWER)
$2.39¢1 196
1
#006
77219-MBZ-K00
COLLAR, TAILLIGHT MOUNT
$2.48¢1 242
1
#007
83140-MKR-D10
COVER Assembly., ESL
$12.14¢6 072
1
#008
83150-MKR-D20ZA
SHELTER ASSY., FR. (TYPE1) (WL)
$485.64¢242 823
1
#009
83160-MKR-D20ZA
COVER Assembly., Right SIDE (TYPE1) (WL)
$226.02¢113 011
1
#010
83170-MKR-D20ZA
COVER ASSY., L. SIDE (TYPE1) (WL)
$226.02¢113 011
1
#011
83180-MKR-D10
COVER ASSY., R. FRAME
$24.51¢12 253
1
#012
83190-MKR-D10
COVER ASSY., L. FRAME
$24.51¢12 253
1
#013
90111-KW3-003
NUT, COWL SETTING (5MM)
$5.04¢2 519
1
#014
90113-MCJ-000
SCREW, PAN (5X15)
$2.64¢1 322
1
#015
90114-MJK-N20
SCREW, TAPPING (4X10)
$2.68¢1 340
1
#016
90116-SP0-003
CLIP, BUMPER SEAL
$5.27¢2 633
1
#017
90117-MKF-D40
BOLT, SPECIAL (5X14)
$3.01¢1 507
1
#018
90852-446-630
PLUG, HOLE
$3.04¢1 518
1
