FRAME

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

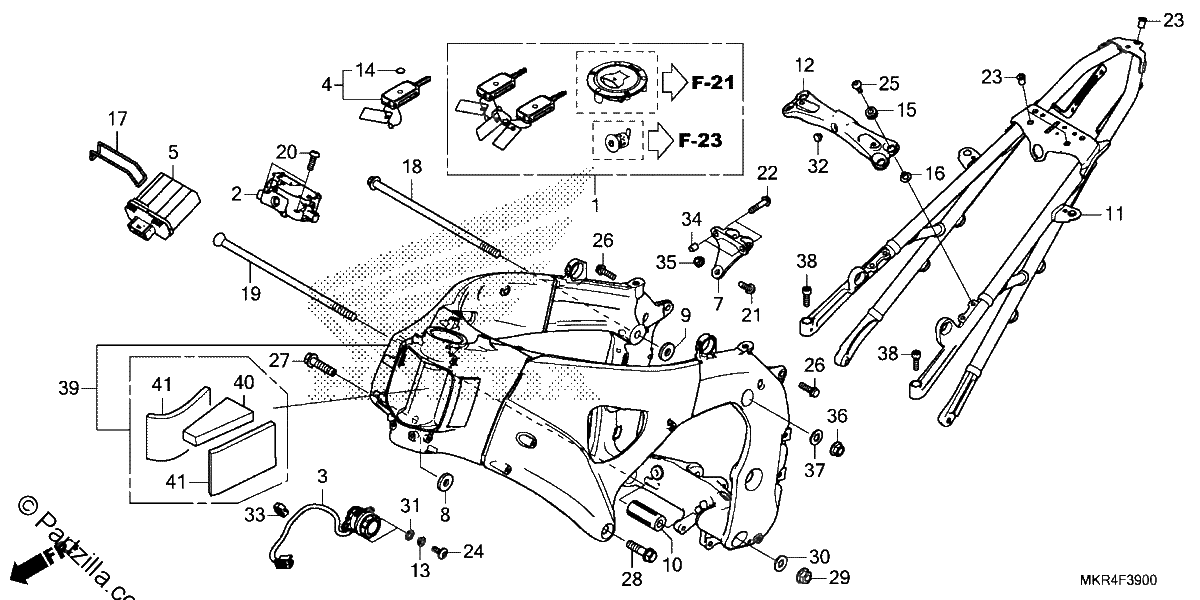

Diagrama de FRAME

Repuestos

#001
35010-MKR-A30
LOCK SET, SMART
$561.67¢280 836
1
#001
35010-MKR-A32
LOCK SET, SMART
$561.67¢280 836
1
#002
35100-MKR-D11
LOCK Assembly., STEERING ELECTRIC
$499.10¢249 550
1
#003
35120-MKR-A31
SWITCH Assembly., IGNITION
$90.93¢45 465
1
#004
35121-MKR-A31
FOB ASSY. (BLANK)
$262.52¢131 261
1
#004
35121-MKR-A32
FOB ASSY.
$262.52¢131 261
1
#005
35140-MKR-A31
CONTROL UNIT, SMART
No Disponible
1
#005
35140-MKR-A32
CONTROL UNIT, SMART
No Disponible
1
#007
50121-MKR-D10
BRACKET, RR. CUSHION
$51.37¢25 685
1
#008
50192-MKR-D10
COLLAR A, ENGINE HANGER
$9.22¢4 611
1
#009
50193-MKR-D10
COLLAR C, ENGINE HANGER
$5.22¢2 610
1
#010
50194-MKR-D10
COLLAR D, ENGINE HANGER
$43.81¢21 908
1
#011
50210-MKR-D10ZA
RAIL, SEAT *NHA86M*(MAT BALLISTIC BLACK)
$1038.32¢519 162
1
#012
50250-MKR-D10
CROSS, SEAT RAIL
$15.57¢7 785
1
#013
61101-KZZ-910
COLLAR, REFLECTOR
$1.09¢546
1
#014
35148-K78-N10
BATTERY (CR2032) (PANASONIC) (MSDS)
$5.28¢2 639
1
#014
72148-S04-000
BATTERY (CR2032)
$8.35¢4 174
1
#014
35148-K1W-D00
BATTERY (CR2032) (MURATA) (MSDS)
$6.79¢3 393
1
#015
80101-165-000
RUBBER, Rear FENDER CUSHION
$4.16¢2 081
1
#016
84706-163-670
COLLAR, TAILLIGHT MOUNTING
$4.55¢2 277
1
#017
89012-KZL-930
BAND, TOOL
$1.47¢736
1
#018
90101-MKR-D10
BOLT, FLANGE (12X285.5)
$22.14¢11 069
1
#019
90102-MKR-D10
BOLT, SPECIAL (12X317.5)
$30.52¢15 260
1
#020
90107-MBG-000
BOLT, ONE-WAY (8MM)
$3.36¢1 679
1
#021
90108-MKR-D10
BOLT, FLANGE (8X28)
$3.24¢1 621
1
#022
90109-MKR-D10
BOLT, FLANGE (8X35)
$3.24¢1 621
1
#023
90111-KW3-003
NUT, COWL SETTING (5MM)
$5.04¢2 519
1
#024
90116-MJM-D40
BOLT, SPECIAL (6X16)
$2.66¢1 328
1
#025
90118-MEJ-J00
SCREW, PAN (6X20)
$2.53¢1 265
1
#026
90162-MKR-D10
BOLT, FLANGE (8X28)
$3.24¢1 621
1
#027
90163-MKR-D10
BOLT, FLANGE (12X50)
$18.43¢9 217
1
#028
90164-MKR-D10
BOLT, FLANGE (12X45)
$18.43¢9 217
1
#029
90371-MFL-000
NUT, FLANGE (12MM)
$2.06¢1 029
1
#030
90504-MKR-D10
WASHER, PLAIN (12MM)
$3.63¢1 817
1
#031
90507-KCR-000
WASHER, RUBBER
$1.60¢799
1
#032
90572-KV3-300
RUBBER, SEPARATOR MOUNTING
$4.78¢2 392
1
#033
90690-MEF-800
CLAMP, HARNESS
$1.54¢771
1
#034
94301-10140
PIN A, DOWEL (10X14)
$2.70¢1 351
1
#034
90703-HC4-000
PIN, DOWEL (10X14)
$2.70¢1 351
1
#035
94050-08000
NUT, FLANGE (8MM)
$1.06¢529
1
#036
94050-12000
NUT, FLANGE (12MM)
$1.17¢586
1
#037
94101-12000
WASHER, PLAIN (12MM)
$1.45¢724
1
#038
96600-08025-00
BOLT, SOCKET (8X25)
$2.39¢1 196
1
#039
50010-MKR-A30ZA
FRAME SET *NHA86M*(MAT BALLISTIC BLACK)
$3067.67¢1 533 836
1
#040
50131-MKR-A30
MAT A, AIR DUCT
$6.60¢3 301
1
#041
50132-MKR-A30
MAT B, AIR DUCT
$4.43¢2 214
1
