OIL COOLER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

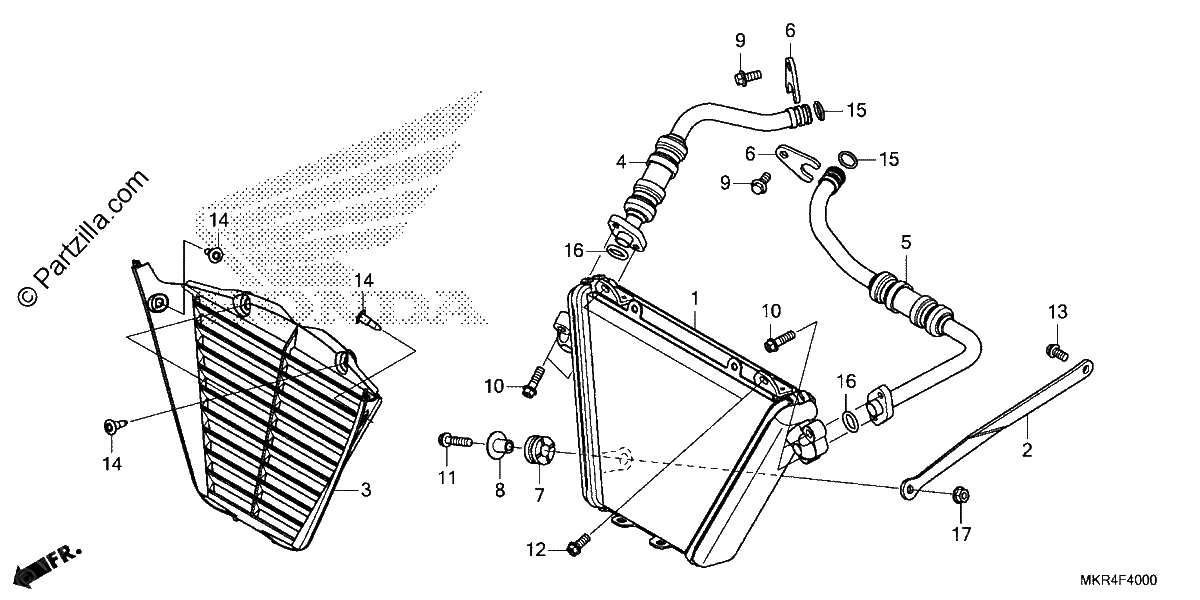

Diagrama de OIL COOLER

Repuestos

#001
15600-MKR-D11
COOLER, OIL
$480.80¢240 400
1
#002
15611-MKR-D10
STAY, OIL COOLER
$28.04¢14 019
1
#003
15640-MKR-D10
GRILLE, OIL COOLER
$26.15¢13 075
1
#004
15650-MKR-D10
PIPE, OIL COOLER IN.
$77.99¢38 994
1
#005
15660-MKR-D10
PIPE, OIL COOLER OUTLET
$100.20¢50 100
1
#006
15702-MKR-D10
PLATE, OIL PIPE
$20.35¢10 175
1
#007
19051-KA3-830
RUBBER, RADIATOR MOUNTING
$4.01¢2 006
1
#008
19052-MAC-680
COLLAR, RADIATOR MOUNTING
$6.23¢3 113
1
#009
90004-GHB-620
BOLT, FLANGE (6X14) (NSHF)
$4.15¢2 075
1
#010
90020-GHB-660
BOLT, FLANGE (6X20)
$2.99¢1 494
1
#011
90020-GHB-680
BOLT, FLANGE (6X25)
$2.91¢1 456
1
#012
90021-GHB-630
BOLT, FLANGE (6X14)
$2.88¢1 438
1
#013
90030-GHB-640
BOLT, FLANGE (6X16)
$2.99¢1 494
1
#014
90116-SP0-003
CLIP, BUMPER SEAL
$5.72¢2 863
1
#015
91305-MGC-003
O-RING (11.9X2.2)
$3.65¢1 825
1
#016
91314-MCF-000
O-RING (12X3)
$3.65¢1 825
1
#017
94050-06000
NUT, FLANGE (6MM)
$0.80¢400
1
