REAR SHOCK ABSORBER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

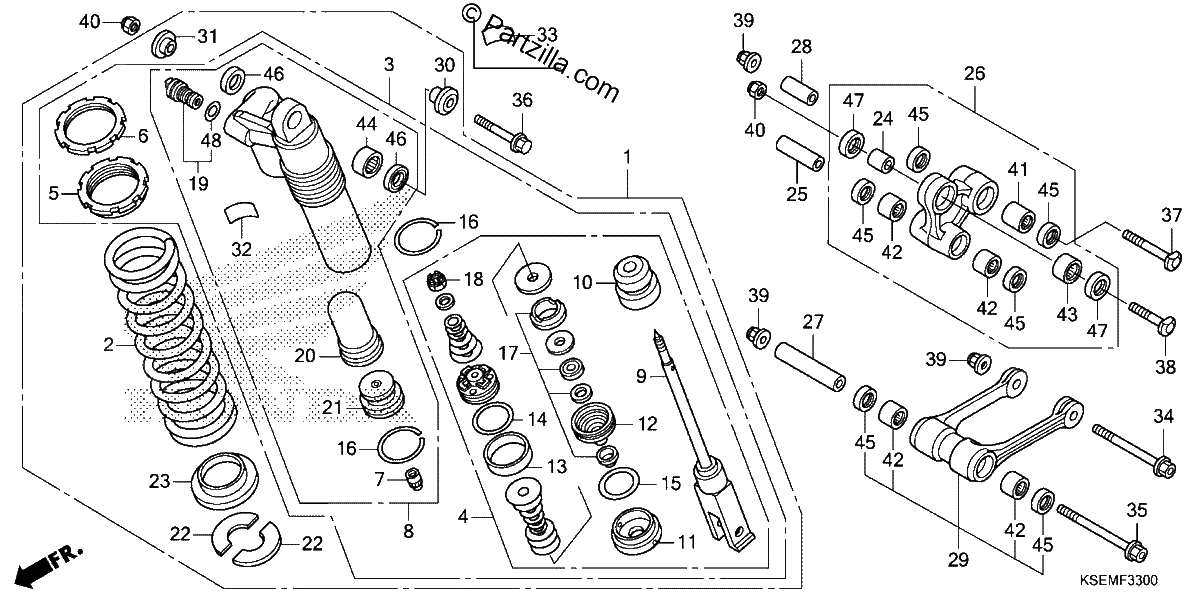

Diagrama de REAR SHOCK ABSORBER

Repuestos

#001
52400-KSE-306
CUSHION ASSY., RR. (COO)
$1076.96¢538 482
1
#001
52400-KSE-A81
CUSHION ASSY., RR.
$1076.96¢538 482
1
#002
52401-KSE-A31
SPRING, RR. SHOCK ABSORBER (49.0N/MM,5.0KGF/MM) (SHOWA)
$193.20¢96 600
1
#002
52401-KSE-A41
SPRING, RR. SHOCK ABSORBER (51.0N/MM,5.2KGF/MM) (SHOWA)
$193.20¢96 600
1
#002
52402-KSE-A41
SPRING, RR. SHOCK ABSORBER (53.0N/MM,5.4KGF/MM) (SHOWA)
$201.89¢100 947
1
#003
52410-KSE-305
DAMPER, RR. (COO)
$713.23¢356 615
1
#003
52410-KSE-A71
DAMPER, Rear.
$713.23¢356 615
1
#004
52421-KSE-A71
ROD, PISTON
$425.12¢212 560
1
#005
52422-MA0-003
ADJUSTER, SPRING
$46.49¢23 247
1
#006
52423-GBF-831
NUT, ADJUSTER
$25.41¢12 708
1
#007
52425-381-771
CAP, AIR VALVE
$5.63¢2 818
1
#008
52425-KSE-671
CASE, DAMPER
$399.56¢199 778
1
#009
52426-KSE-A71
ROD
$350.09¢175 047
1
#010
52427-GBF-831
RUBBER, STOPPER
$16.79¢8 395
1
#011
52428-KA4-741
CAP, CASE
$20.18¢10 091
1
#012
52429-KSE-A71
CASE, ROD GUIDE
$43.93¢21 965
1
#013
52431-MA0-771
RING, PISTON
$20.62¢10 310
1
#014
52432-GBF-831
O-RING (2.0X33.5)
$5.28¢2 639
1
#015
52434-KA3-681
O-RING (3.5X33.7)
$6.35¢3 174
1
#016
52435-MA0-771
RING, STOPPER
$5.88¢2 938
1
#017
52436-KSE-680
OIL SEAL SET
$13.42¢6 710
1
#018
52438-KA4-741
NUT, HEX. (12MM)
$3.36¢1 679
1
#019
52440-GBF-A01
ADJUSTER, COMPRESSION DAMPING FORCE
$59.54¢29 768
1
#020
52451-GBF-831
DIAPHRAGM
$19.20¢9 603
1
#021
52453-KSE-671
CAP, CHAMBER
$19.40¢9 700
1
#022
52455-GBF-831
STOPPER, SPRING SEAT
$6.55¢3 278
1
#023
52459-GBF-831
SEAT, SPRING
$26.47¢13 237
1
#024
52462-KSE-000
COLLAR D, CUSHION ARM
$9.18¢4 589
1
#025
52463-KSE-000
COLLAR B, CUSHION ARM
$10.33¢5 164
1
#026
52465-KSE-000
ARM SUB-ASSY., CUSHION
$276.76¢138 379
1
#027
52473-KSE-000
COLLAR A, CONNECTING ROD
$13.31¢6 653
1
#028
52473-KZ9-710
COLLAR, CUSHION CONNECTING ROD
$18.91¢9 453
1
#029
52479-KSE-000
ROD SUB-ASSY., CUSHION CONNECTING
$237.52¢118 761
1
#030
52486-GBF-830
COLLAR A, CUSHION (UPPER)
$8.07¢4 036
1
#031
52487-GBF-830
COLLAR B, CUSHION (UPPER)
$6.89¢3 444
1
#032
87516-KZ1-600
LABEL, RR. DAMPER WARNING
$7.97¢3 985
1
#034
90101-KK6-000
BOLT, FLANGE (10X85)
$8.61¢4 307
1
#035
90101-KSE-000
BOLT, FLANGE (10X105)
$9.14¢4 571
1
#036
90128-KSE-000
BOLT, FLANGE (10X67)
$9.96¢4 980
1
#037
90153-KSE-000
BOLT, LINK (10X73)
$7.75¢3 875
1
#038
90153-KZ4-710
BOLT, CUSHION (LOWER) (10X43.5)
$9.68¢4 842
1
#039
90304-GE8-003
NUT, U (10MM) (FUSE RASHI)
$4.09¢2 047
1
#040
90306-KZ4-711
NUT, U (10MM)
$4.17¢2 087
1
#041
91071-KV3-005
BEARING, NEEDLE (KOYO)
$26.59¢13 294
1
#042
91072-KT7-003
BEARING, NEEDLE (17X24X20) (NTN)
$21.57¢10 787
1
#043
91074-KRN-711
BEARING, NEEDLE (19X26X13)
$9.15¢4 577
1
#044
91077-GS2-702
BEARING, NEEDLE (16X22X12)
$23.55¢11 776
1
#045
91262-KV3-831
DUST SEAL (17X24X5) (ARAI)
$6.91¢3 456
1
#046
91351-GS2-701
DUST SEAL, RR. CUSHION (UPPER)
$4.99¢2 496
1
#047
91351-KSE-003
DUST SEAL (19X26X3)
$3.36¢1 679
1
#048
91356-GBF-831
O-RING (16.8X1.9)
$4.48¢2 242
1
