REAR BRAKE MASTER CYLINDER 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

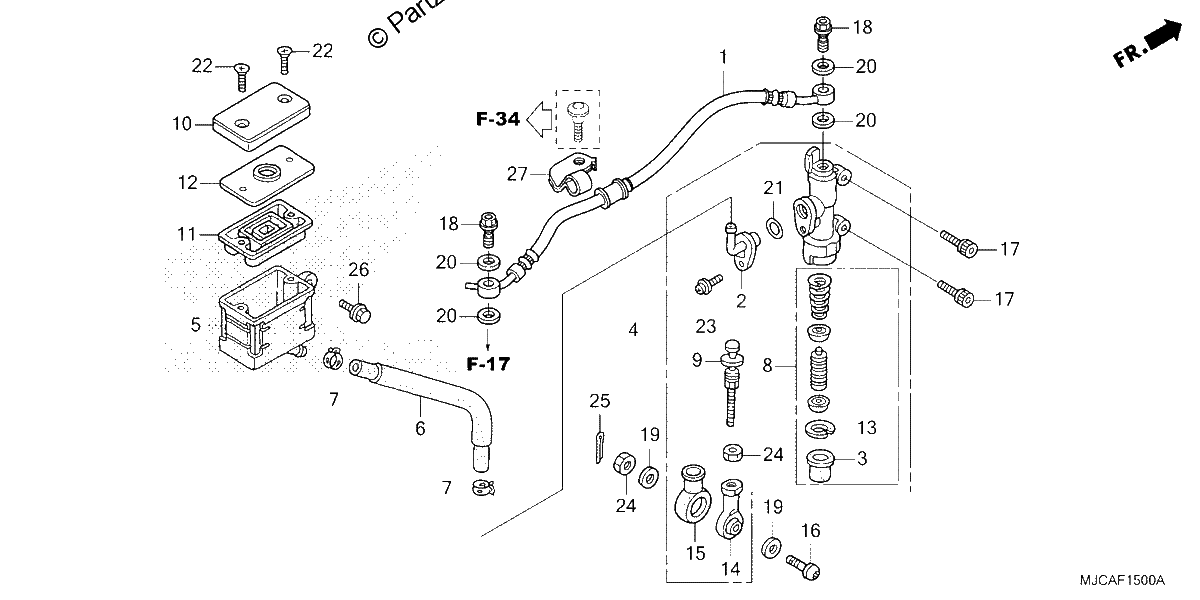

Diagrama de REAR BRAKE MASTER CYLINDER 1

Repuestos

#001
43310-MJC-N41
HOSE, Rear BRAKE (NICHIRIN)
$66.58¢33 293
1
#001
43310-MFJ-D02
HOSE, RR. BRAKE
$66.58¢33 293
1
#002
43503-MEE-006
CONNECTOR
$7.85¢3 927
1
#003
43504-MB2-006
BOOT
$10.80¢5 399
1
#004
43510-MFJ-D01
MASTER CYLINDER SUB-ASSY., RR.
$157.61¢78 804
1
#005
43511-KV3-831
CUP, OIL
$25.32¢12 661
1
#006
43512-MFJ-D01
HOSE, RR. MASTER CYLINDER
$17.24¢8 619
1
#007
43514-KS6-701
CLAMP, MASTER CYLINDER OIL HOSE
$14.02¢7 009
1
#008
43520-MB2-315
PISTON SET, MASTER CYLINDER (NISSIN)
$49.67¢24 834
1
#009
43530-MCZ-006
ROD, PUSH
$29.05¢14 525
1
#010
45513-HR0-305
CAP, MASTER CYLINDER (COO)
$4.63¢2 317
1
#010
45513-KK1-771
CAP, MASTER CYLINDER
$4.63¢2 317
1
#011
45520-MG7-006
DIAPHRAGM
$11.33¢5 664
1
#012
45521-HA2-006
PLATE, DIAPHRAGM
$11.59¢5 796
1
#013
46182-MEL-D21
CIRCLIP
$2.30¢1 150
1
#014
46505-MFJ-D01
TIE ROD
$75.34¢37 668
1
#015
46506-MFJ-D00
COVER, DUST
$9.20¢4 600
1
#016
90125-MCJ-750
BOLT, SOCKET (8X30)
$7.90¢3 950
1
#017
90135-MEL-000
BOLT, SOCKET (6X20)
$1.92¢960
1
#018
90145-MS9-612
BOLT, OIL (10X22)
$8.18¢4 088
1
#019
90443-GC8-000
WASHER, SPECIAL (8MM)
$3.15¢1 576
1
#020
90545-300-000
WASHER, OIL BOLT
$4.46¢2 231
1
#021
91212-422-006
O-RING (14.8X2.4)
$3.04¢1 518
1
#022
93600-04040-1G
SCREW, FLAT (4X40)
$0.56¢282
1
#023
93893-04012-07
SCREW-WASHER (4X12)
$1.59¢793
1
#023
93893-04012-17
SCREW-WASHER (4X12)
$1.59¢793
1
#024
94002-08000-0S
NUT, HEX. (8MM)
$1.47¢736
1
#025
94201-20150
PIN, SPLIT (2.0X15)
$1.23¢615
1
#026
96300-06016-00
BOLT, FLANGE (6X16)
$1.12¢558
1
#027
45155-MEE-000
CLAMP, BRAKE HOSE BUSH
$7.54¢3 772
1
