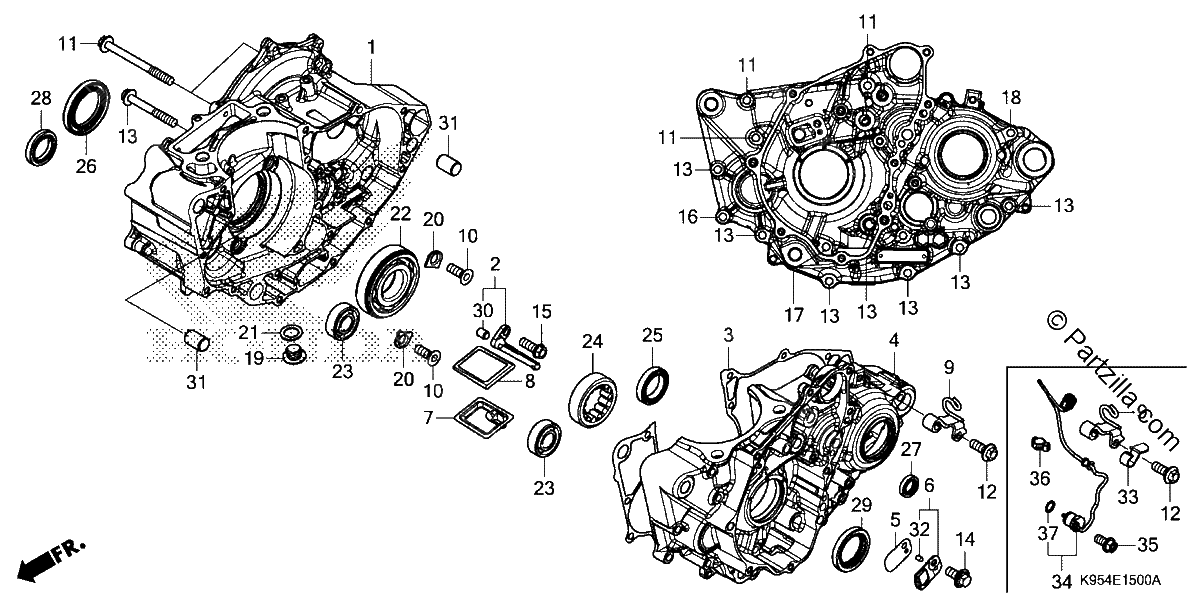

CRANKCASE
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
CRANKCASE, R.
$540.35¢270 175
#002
JET, PISTON
$63.56¢31 781
#003
GASKET, CRANKCASE
$32.30¢16 150
#004
CRANKCASE, Left
$534.30¢267 150
#005
VALVE, REED
$9.44¢4 719
#006
STOPPER, REED VALVE
$34.55¢17 275
#007
STRAINER, OIL
$22.89¢11 444
#008
SCREEN, OIL FILTER
$16.50¢8 250
#009
RECEIVER, CLUTCH CABLE
$13.75¢6 875
#010
SCREW, SPECIAL FLAT (6X17)
$2.31¢1 156
#011
BOLT, FLANGE (6X65)
$4.33¢2 163
#012
BOLT, FLANGE (6X16)
$2.91¢1 456
#013
BOLT, FLANGE (6X45)
$3.65¢1 825
#014
BOLT-WASHER (6X14)
$3.05¢1 525
#015
BOLT, FLANGE (6X16)
$2.91¢1 456
#016
BOLT, FLANGE (6X28)
$2.99¢1 494
#017
BOLT, FLANGE (6X50)
$3.73¢1 863
#018
BOLT, FLANGE (6X75)
$3.65¢1 825
#019
CAP (14MM)
$14.88¢7 438
#020
PLATE, BEARING HOLDER
$4.36¢2 181
#021
WASHER, SEALING (14MM)
$3.95¢1 975
#022
BEARING, RADIAL BALL (30X72X16)
$45.82¢22 912
#023
BEARING, RADIAL BALL SPECIAL (6202)
$12.98¢6 488
#024
BEARING, SPECIAL ROLLER
$56.59¢28 294
#025
BEARING, RADIAL BALL (6805)
$12.71¢6 356
#026
OIL SEAL (39X56X7.5)
$20.15¢10 075
#027
OIL SEAL (14X22X5) (NOK)
$4.63¢2 313
#028
OIL SEAL (24X36X7)
$9.25¢4 625
#029
OIL SEAL (31X45X7)
$10.43¢5 213
#030
PIN, DOWEL (8X10)
$2.89¢1 444
#031
PIN, DOWEL (14X20)
$2.94¢1 469
#032
PIN C, DOWEL (4X6.5)
$2.75¢1 375
#033
STAY, CHANGE SWITCH WIRE
$4.59¢2 294
#034
SWITCH ASSY., CHANGE
$133.56¢66 781
#035
BOLT, FLANGE (6X12)
$2.76¢1 381
#036
CLIP, CABLE (10MM)
$2.85¢1 425
#037
O-RING (16.5X2.5)
$2.52¢1 263
