FRONT BRAKE MASTER CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

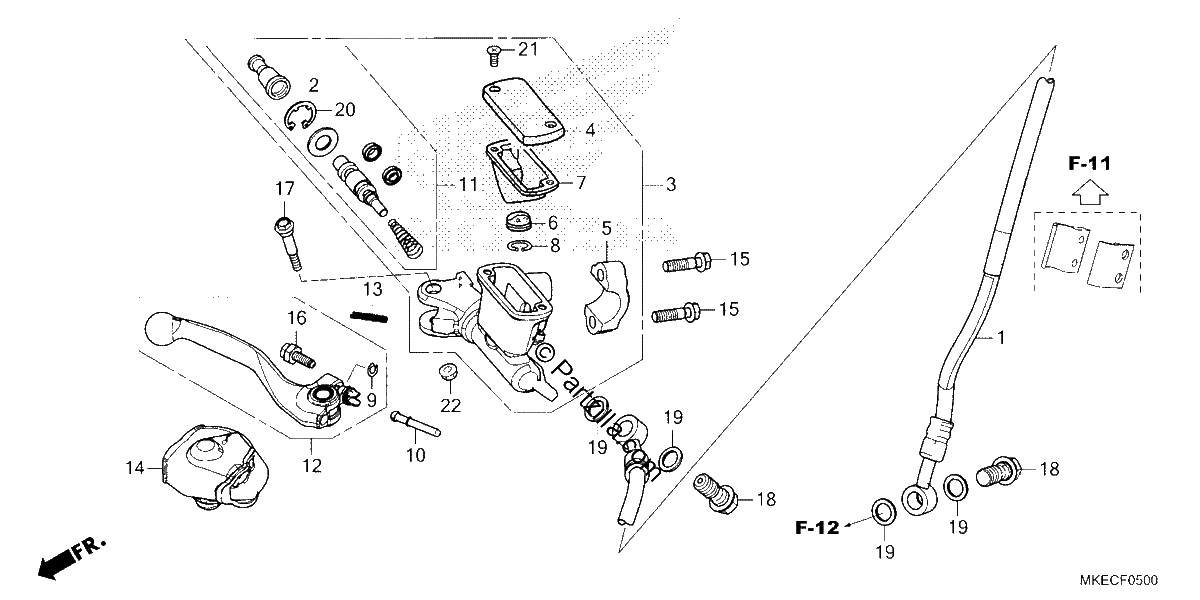

Diagrama de FRONT BRAKE MASTER CYLINDER

Repuestos

#001
45125-MKE-A71
HOSE, Front BRAKE
$155.63¢77 815
1
#002
45504-MEN-J01
BOOT
$10.90¢5 451
1
#003
45510-KRN-A91
MASTER CYLINDER SUB-ASSY., FR.BRAKE (NISSIN)
$251.09¢125 545
1
#004
45513-KCE-671
CAP, MASTER CYLINDER
$24.58¢12 288
1
#005
45517-GW0-751
HOLDER, MASTER CYLINDER
$13.25¢6 624
1
#006
45518-MEN-J01
SEPARATOR
$8.50¢4 249
1
#007
45520-KA3-731
DIAPHRAGM
$14.49¢7 245
1
#008
45523-KA3-731
RING
$3.36¢1 679
1
#009
45523-MEB-003
RING
$1.12¢558
1
#010
45525-MEN-J01
ROD, PUSH
$8.64¢4 318
1
#011
45530-MEN-J01
PISTON SET, MASTER CYLINDER
$42.38¢21 189
1
#012
53171-MEN-J01
LEVER, R. HANDLEBAR
$40.59¢20 297
1
#013
53174-KN5-006
SPRING, BRAKE LEVER
$3.36¢1 679
1
#015
90020-GHB-670
BOLT, FLANGE (6X22)
$2.75¢1 374
1
#016
90111-MEB-003
BOLT SET, ADJUSTING
$4.58¢2 289
1
#017
90114-MKE-AG1
BOLT, LEVER PIVOT
$7.05¢3 525
1
#018
90145-MS9-612
BOLT, OIL (10X22)
$8.18¢4 088
1
#019
90545-300-000
WASHER, OIL BOLT
$4.46¢2 231
1
#020
90651-MA5-671
CIRCLIP
$2.85¢1 426
1
#021
93600-04012-0G
SCREW, FLAT (4X12)
$1.07¢535
1
#021
93600-04012-1G
SCREW, FLAT (4X12)
$1.07¢535
1
#022
94050-06000
NUT, FLANGE (6MM)
$0.74¢368
1
