CLUTCH

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

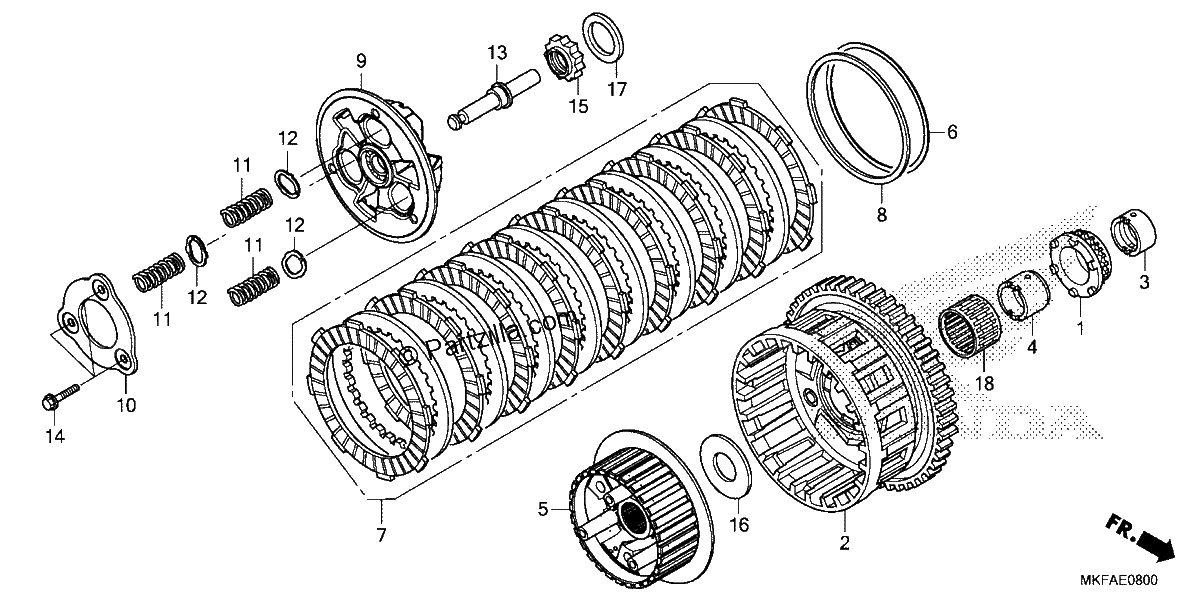

Diagrama de CLUTCH

Repuestos

#001
15131-MEL-003
SPROCKET, OIL PUMP DRIVE (26T)
$72.89¢36 444
1
#002
22100-MFL-880
CLUTCH OUTER A (BLUE)
$384.61¢192 303
1
#002
22110-MFL-880
CLUTCH OUTER B (YELLOW)
$384.61¢192 303
1
#002
22115-MFL-880
CLUTCH OUTER C (GREEN)
$408.01¢204 004
1
#003
22116-MEL-000
COLLAR, OIL PUMP SPROCKET
$19.57¢9 786
1
#004
22117-MFL-880
GUIDE A, CLUTCH (OUTER) (2MM HOLE X2)
$22.11¢11 057
1
#004
22118-MFL-880
GUIDE B, CLUTCH (OUTER) (2MM HOLE X3)
$23.11¢11 558
1
#004
22119-MFL-880
GUIDE C, CLUTCH (OUTER) (2MM HOLE X4)
$22.11¢11 057
1
#005
22121-MKF-D41
CENTER, CLUTCH
$143.43¢71 714
1
#006
22125-HP6-A00
SEAT, JUDDER SPRING
$5.32¢2 662
1
#007
22210-MKF-D40
DISK SET, CLUTCH
$201.59¢100 798
1
#008
22325-MJP-G51
SPRING, JUDDER
$43.42¢21 712
1
#009
22350-MKF-D41
PLATE, CLUTCH PRESSURE
$87.02¢43 510
1
#010
22361-MJP-G51
PLATE, SETTING
$28.60¢14 300
1
#011
22401-MKF-D41
SPRING, CLUTCH
$6.88¢3 439
1
#012
22425-MKF-D41
SEAT, CLUTCH SPRING
$13.60¢6 802
1
#013
22847-MGP-D60
PIN, CLUTCH LIFTER
$41.66¢20 832
1
#014
90050-MKF-D41
BOLT, FLANGE (6X45)
$3.42¢1 708
1
#015
90231-MS2-610
NUT, LOCK (25MM)
$20.06¢10 028
1
#016
90401-MS2-610
WASHER, THRUST (28.2X56X2)
$18.79¢9 395
1
#017
90407-MFL-000
WASHER (25.1X37X3.2)
$4.62¢2 311
1
#018
91101-MFL-881
BEARING A, NEEDLE (35X41X27.8) (RED)
$10.74¢5 371
1
#018
91102-MFL-881
BEARING B, NEEDLE (35X41X27.8) (WHITE)
$9.20¢4 600
1
#018
91103-MFL-881
BEARING C, NEEDLE (35X41X27.8) (GREEN)
$10.27¢5 135
1
