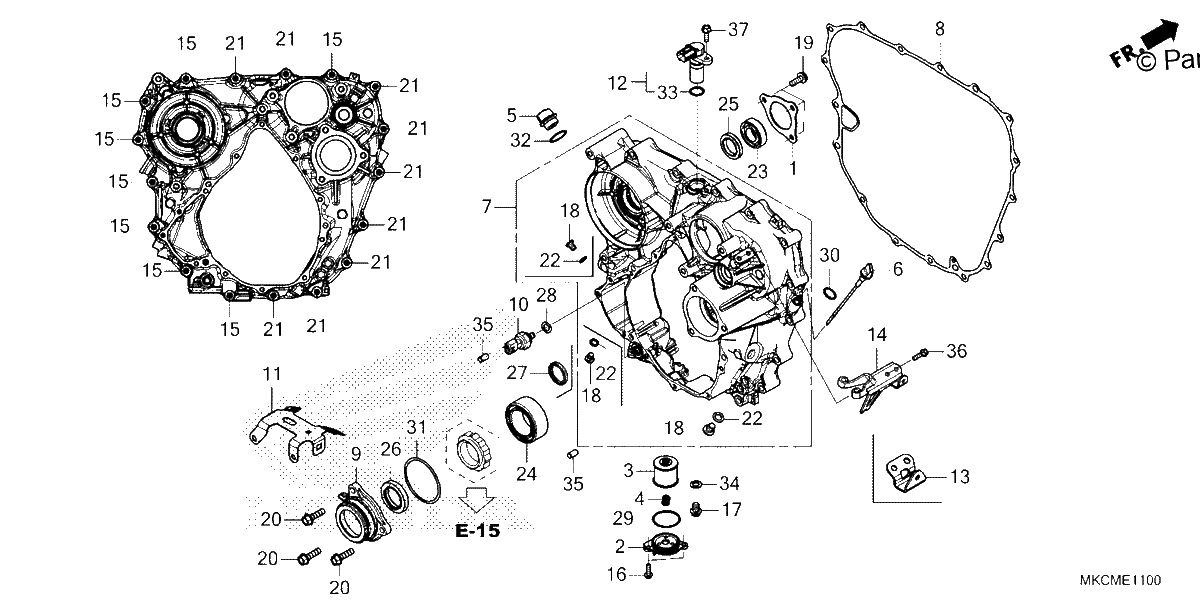

REAR CASE
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
PLATE, ISG BEARING SETTING
$17.79¢8 894
#005
CAP, OIL FILLER
$16.71¢8 356
#006
DIPSTICK, OIL
$21.76¢10 881
#007
CASE ASSY., RR.
$1077.59¢538 794
#008
GASKET, RR. CASE
$52.18¢26 088
#009
HOLDER, FINAL SHAFT BEARING
$85.71¢42 856
#011
STAY, KNOCK CONNECTOR
$23.40¢11 700
#012
PULSER ASSY., CAM
$216.48¢108 238
#014
STAY A, R. ENGINE SIDE COVER
$27.85¢13 925
#015
BOLT, FLANGE (8X55)
$1.86¢931
#018
BOLT, SPECIAL (10X12)
$5.74¢2 869
#019
BOLT, KNOCK (6MM)
$3.08¢1 538
#020
BOLT, FLANGE (8X28)
$3.59¢1 794
#021
BOLT, FLANGE (8X45)
$3.08¢1 538
#022
WASHER, SEALING (10.2MM)
$3.65¢1 825
#023
BEARING, RADIAL BALL SPECIAL (6004)
$25.45¢12 725
#024
BEARING, RADIAL BALL (34X62X24)
$39.13¢19 563
#025
OIL SEAL (26X39X6.5)
$6.21¢3 106
#026
OIL SEAL (32X48X8)
$14.91¢7 456
#027
OIL SEAL (27X34X5)
$4.91¢2 456
#030
O-RING (6.3X2.3) (ARAI)
$4.91¢2 456
#031
O-RING (63X3) (ARAI)
$6.90¢3 450
#031
O-RING (62.4X3.1)
$6.90¢3 450
#031
O-RING (62.4X3.1)
$6.90¢3 450
#032
O-RING (18X3)
$3.65¢1 825
#033
O-RING (16X2.1) (NOK)
$3.65¢1 825
#035
PIN, DOWEL (10X16)
$2.92¢1 463
#036
BOLT, FLANGE (6X16)
$2.09¢1 044
#037
BOLT, FLANGE (6X18)
$2.09¢1 044
