MUFFLER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

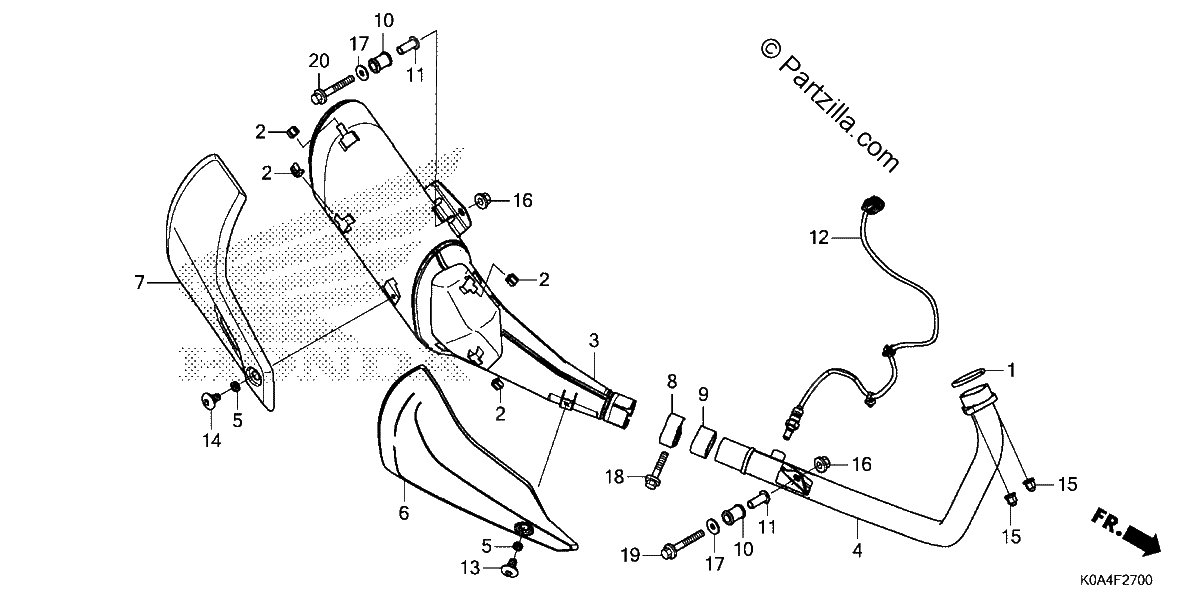

Diagrama de MUFFLER

Repuestos

#001
18291-MEB-670
GASKET, EX. PIPE
$5.49¢2 743
1
#002
18293-MCA-A20
RUBBER, PROTECTOR GASKET
$2.43¢1 213
1
#003
18310-K0A-E10
MUFFLER
$1396.07¢698 033
1
#004
18320-K0A-E10
PIPE, EX.
$145.75¢72 875
1
#005
18345-MBT-610
RUBBER, PROTECTOR MOUNTING
$2.59¢1 294
1
#006
18355-K0A-E10
COVER A, MUFFLER
$176.86¢88 429
1
#007
18356-K0A-E10
COVER B, MUFFLER
$84.51¢42 257
1
#008
18373-K33-D00
BAND, MUFFLER
$20.64¢10 321
1
#009
18392-KYJ-901
GASKET, MUFFLER
$7.59¢3 795
1
#010
18421-K75-A50
RUBBER, MUFFLER MOUNTING
$7.24¢3 622
1
#011
18422-KAF-700
COLLAR, MUFFLER MOUNTING
$6.60¢3 301
1
#011
18422-MAL-600
COLLAR, MUFFLER MOUNTING
$6.60¢3 301
1
#012
36532-K0A-E11
SENSOR, OXYGEN
$165.89¢82 944
1
#013
90113-KTA-920
SCREW, PAN (6X12)
$2.60¢1 299
1
#014
90115-K87-A00
SCREW, PAN (6X12)
$1.30¢650
1
#015
90304-KPH-700
NUT, HEX CAP (8MM)
$2.01¢1 006
1
#016
94050-08000
NUT, FLANGE (8MM)
$1.06¢529
1
#017
94103-08000
WASHER, PLAIN (8MM)
$0.77¢385
1
#018
95701-08038-02
BOLT, FLANGE (8X38)
$4.74¢2 369
1
#019
95701-08050-00
BOLT, FLANGE (8X50)
$2.69¢1 346
1
#020
95801-08050-00
BOLT, FLANGE (8X50)
$3.36¢1 679
1
