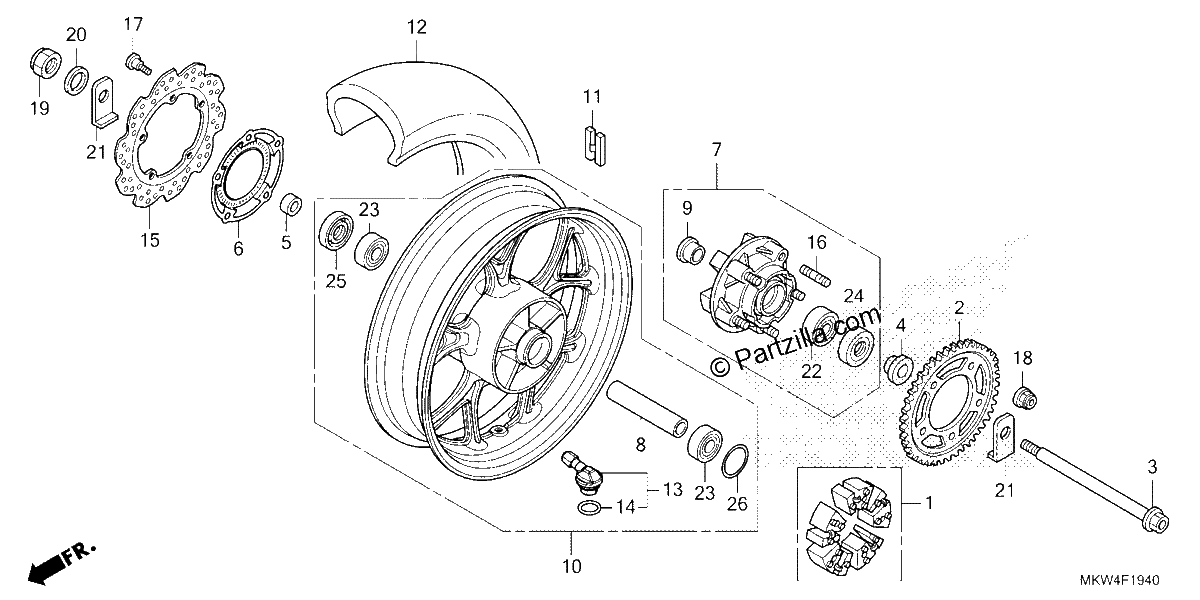

REAR WHEEL
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
DAMPER SET, WHEEL
$67.19¢33 594
#002
SPROCKET, FINAL DRIVEN (43T)
$83.46¢41 731
#003
AXLE, Rear WHEEL
$61.22¢30 612
#004
COLLAR, L. RR. WHEEL SIDE
$27.31¢13 656
#005
COLLAR, RR. BRAKE SIDE
$18.14¢9 069
#006
RING, Rear PULSER
$81.11¢40 556
#007
FLANGE SUB-Assembly., Rear DRIVEN
$334.59¢167 294
#008
COLLAR, RR. AXLE DISTANCE
$32.76¢16 381
#009
COLLAR B, RR. WHEEL DISTANCE
$22.61¢11 306
#010
WHEEL SUB-ASSY., RR. (TYPE1)
$1153.63¢576 813
#011
WEIGHT, BALANCE (10G)
$10.91¢5 456
#011
WEIGHT, BALANCE (20G)
$22.41¢11 206
#011
WEIGHT, BALANCE (30G)
$22.09¢11 044
#012
TIRE, RR. (160/60ZR17 M/C 69W) (DUNLOP)
No Disponible
#012
TIRE, RR. (160/60ZR17 M/C 69W)(METZELER)
$244.15¢122 075
#013
VALVE ASSY., CLAMP IN
$19.25¢9 625
#014
O-RING
$1.96¢981
#015
DISK, RR. BRAKE (SUNSTAR)
$437.92¢218 962
#016
BOLT, STUD (12X25)
$4.86¢2 431
#017
BOLT, BRAKE DISK (8X24)
$7.52¢3 762
#017
BOLT, BRAKE DISK (8X24) (TSUKIBOSHI)
$7.52¢3 762
#018
NUT U, FLANGE (12MM)
$4.75¢2 375
#019
NUT, U (18MM)
$8.26¢4 131
#020
WASHER (20X31.5X2)
$3.89¢1 944
#021
WASHER, RR. SWINGARM
$5.94¢2 969
#022
BEARING, ANGULAR BALL (22X50X15)
$44.23¢22 113
#023
BEARING, RADIAL BALL (6204UU)
$15.11¢7 556
#024
DUST SEAL (30X50X7)
$14.92¢7 462
#025
DUST SEAL (30X47X7.5)
$18.51¢9 256
#026
O-RING (55X2)
$3.65¢1 825
