REAR BRAKE MASTER CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

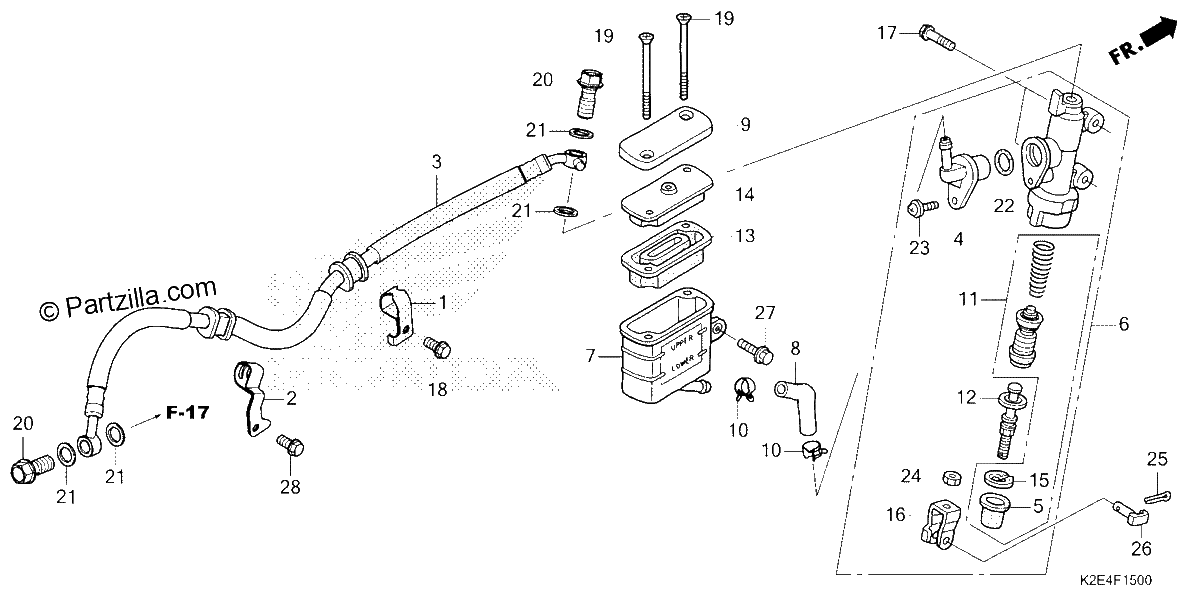

Diagrama de REAR BRAKE MASTER CYLINDER

Repuestos

#001
43156-K2E-T00
CLAMP A, RR. BRAKE HOSE
$5.72¢2 858
1
#002
43157-K2E-T00
CLAMP B, RR. BRAKE HOSE
$6.37¢3 186
1
#003
43310-K2E-T01
HOSE, RR. BRAKE (NICHIRIN)
$26.15¢13 075
1
#004
43503-MR8-006
CONNECTOR, MASTER CYLINDER
$8.58¢4 289
1
#005
43504-MB2-006
BOOT
$10.80¢5 399
1
#006
43510-K2E-T01
MASTER CYLINDER SUB-ASSY., RR.BRAKE (NISSIN)
$129.54¢64 768
1
#007
43511-K43-D31
CUP, OIL
$26.54¢13 271
1
#008
43512-K2E-T01
HOSE, RR. MASTER CYLINDER
$12.65¢6 325
1
#009
43513-KTY-C01
CAP, MASTER CYLINDER
$7.11¢3 553
1
#010
43514-KS6-701
CLAMP, MASTER CYLINDER OIL HOSE
$14.02¢7 009
1
#011
43520-MJ6-315
PISTON SET, MASTER CYLINDER (NISSIN)
$48.82¢24 409
1
#012
43530-KV3-831
ROD, PUSH
$27.04¢13 518
1
#013
45520-GW0-911
DIAPHRAGM
$8.13¢4 065
1
#014
45521-GW0-911
PLATE, DIAPHRAGM
$6.39¢3 197
1
#015
46182-MEL-D21
CIRCLIP
$2.30¢1 150
1
#016
46504-KV6-702
JOINT, BRAKE ROD
$8.74¢4 370
1
#017
90101-K26-B00
BOLT, FLANGE (6X22) (SH)
$0.83¢414
1
#018
90103-MCS-G00
BOLT, FLANGE (6X12)
$1.53¢765
1
#019
90140-K43-D31
SCREW, FLAT (4X50)
$2.60¢1 299
1
#020
90145-MS9-612
BOLT, OIL (10X22)
$8.18¢4 088
1
#021
90545-300-000
WASHER, OIL BOLT
$4.46¢2 231
1
#022
91212-422-006
O-RING (14.8X2.4)
$3.04¢1 518
1
#023
93893-04012-07
SCREW-WASHER (4X12)
$1.59¢793
1
#023
93893-04012-17
SCREW-WASHER (4X12)
$1.59¢793
1
#024
94002-08000-0S
NUT, HEX. (8MM)
$1.47¢736
1
#025
94201-20120
PIN, SPLIT (2.0X12)
$1.17¢586
1
#026
95015-54000
PIN D, JOINT
$4.74¢2 369
1
#027
95701-06014-08
BOLT, FLANGE (6X14)
$1.92¢960
1
#028
96001-06012-07
BOLT, FLANGE (6X12)
$2.13¢1 064
1
