REAR WHEEL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

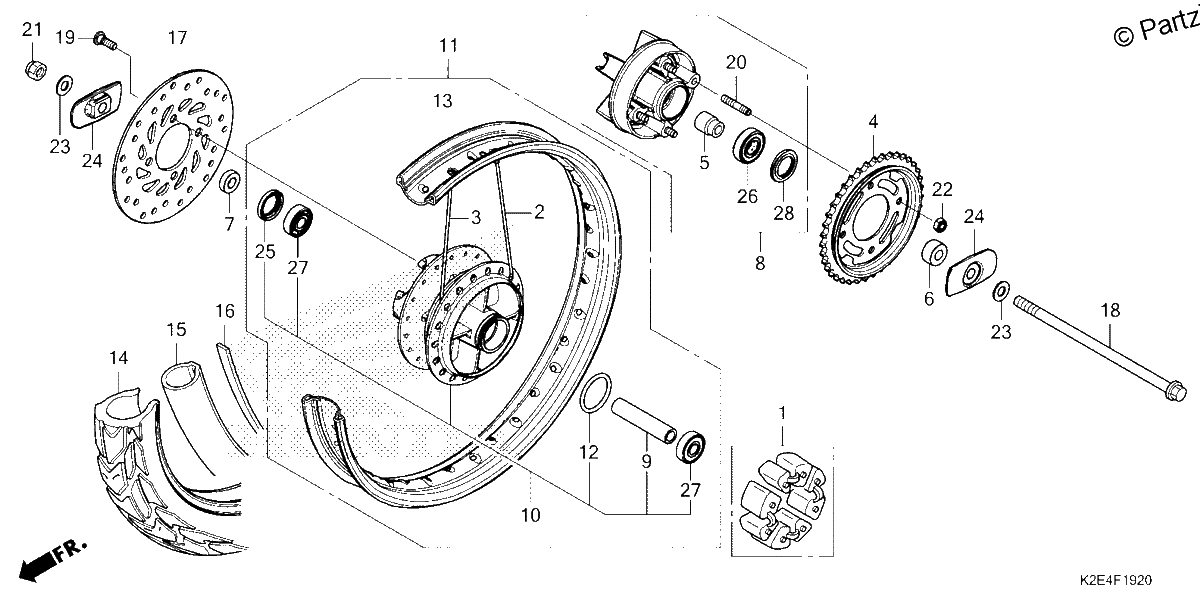

Diagrama de REAR WHEEL

Repuestos

#001
06410-GCR-000
DAMPER SET, WHEEL
$36.31¢18 156
1
#002
06420-K2E-T00
SPOKE SET (B9X161.5) (OUTSIDE)
$4.39¢2 194
1
#003
06421-K2E-T00
SPOKE SET (B9X161.5) (INSIDE)
$4.39¢2 194
1
#004
41200-K2E-T00
SPROCKET, FINAL DRIVEN (39T)
$42.27¢21 138
1
#005
42303-KBA-900
SLEEVE, RR. WHEEL (NOT AVAILABLE)
$19.55¢9 775
1
#006
42304-K2E-T00
COLLAR, RR. WHEEL SIDE
$9.06¢4 531
1
#007
42313-KTM-750
COLLAR, R. RR. WHEEL SIDE
$5.64¢2 819
1
#008
42615-K2E-T00ZA
FLANGE SUB-ASSY., FINAL DRIVEN*NH303M*(MAT AXIS GRAY METALLIC)
$149.08¢74 538
1
#009
42620-KW7-880
COLLAR, RR. AXLE DISTANCE
$18.08¢9 038
1
#010
42635-K2E-T00ZA
HUB SUB-ASSY., RR. *NH303M*(MAT AXIS GRAY METALLIC)
$138.07¢69 038
1
#011
42650-K2E-T00ZA
WHEEL SUB-ASSY., RR. *NH303M*(MAT AXIS GRAY METALLIC)
$356.35¢178 175
1
#011
42650-K2E-T01ZA
WHEEL SUB-ASSY., RR. *NH303M*(MAT AXIS GRAY METALLIC)
$356.35¢178 175
1
#012
42653-001-004
O-RING (40.5X3) (NIPPON DUST KEEPER)
$3.08¢1 538
1
#013
42701-K2E-T00
RIM, RR. WHEEL (17X1.60)
$102.54¢51 269
1
#013
42701-K2E-T01
RIM, RR. WHEEL (17X1.60)
$102.54¢51 269
1
#014
42711-K2E-T01
TIRE, RR. (80/90-17 M/C 50P) (IRC)
$55.04¢27 519
1
#015
42712-K2E-T01
TUBE, TIRE (IRC)
$26.72¢13 362
1
#016
42713-102-005
FLAP, TIRE (IRC)
$7.92¢3 963
1
#017
43351-KTM-N31
DISK, RR. BRAKE (YUTAKA) (NOT AVAILABLE)
No Disponible
1
#017
43351-KTM-N32
DISK, RR. BRAKE (SUNSTAR)
$124.14¢62 069
1
#018
44301-K01-900
AXLE, Front WHEEL (FOR Rear.)
$14.69¢7 344
1
#019
90105-KGH-900
BOLT, BRAKE DISK (8X24)
$2.46¢1 231
1
#020
90128-KFM-900
BOLT, STUD (8X19.5) (NOT AVAILABLE)
$1.25¢625
1
#021
90306-K0G-901
NUT, U (12MM)
$3.75¢1 875
1
#022
90309-KPH-971
NUT, U (8MM) (FUJI SEIMITSU)
$2.11¢1 056
1
#023
90501-K0G-900
WASHER, RR. AXLE
$2.01¢1 006
1
#024
90559-K0G-900
PLATE, SWINGARM SIDE
$15.55¢7 775
1
#025
90753-051-005
OIL SEAL (26X37X6) (NOK)
$9.29¢4 644
1
#025
90753-051-003
OIL SEAL (26X37X6) (ARAI)
$9.29¢4 644
1
#026
91051-K35-V03
BEARING, RADIAL BALL (6203UU) (FUJIKOSHI)
$22.32¢11 163
1
#026
91051-K35-V04
BEARING, RADIAL BALL (6203UU) (FAG)
$22.32¢11 163
1
#027
91053-K03-H01
BEARING, RADIAL BALL (6301U L)(NTN)
$8.39¢4 194
1
#027
91053-K03-H02
BEARING, RADIAL BALL (6301U L)(FAG)
$8.39¢4 194
1
#027
91053-K03-N41
BEARING, RADIAL BALL (6301U L)(SKF)
$8.39¢4 194
1
#027
91055-KVS-F01
BEARING, RADIAL BALL (6301U L)(FUJIKOSHI)
$11.47¢5 738
1
#027
91055-KVS-F02
BEARING, RADIAL BALL (6301U L)(NSK)
$11.47¢5 738
1
#028
91251-KGH-902
DUST SEAL (27X40X4.5) (NOK)
$1.27¢638
1
