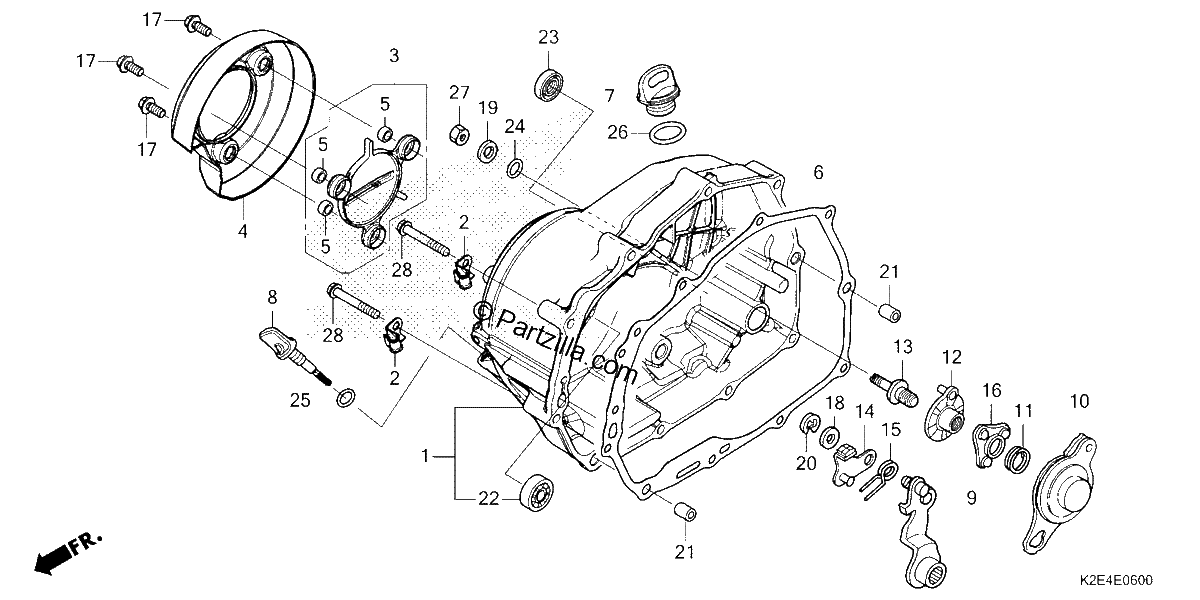

RIGHT CRANKCASE COVER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
COVER, R. CRANKCASE
$114.84¢57 419
#002
CLAMP A, OIL TEMP SENSOR CORD
$1.09¢544
#003
PROTECTOR, R. COVER (INNER)
$30.49¢15 244
#004
PROTECTOR, R. COVER (OUTER)
$70.90¢35 450
#005
COLLAR (10MM)
$1.47¢737
#006
GASKET, Right CRANKCASE COVER
$6.90¢3 450
#007
CAP, OIL FILLER
$4.56¢2 281
#008
DIPSTICK, OIL
$6.35¢3 175
#009
LEVER, CLUTCH
$46.80¢23 400
#010
PLATE, CLUTCH CAM
$34.75¢17 375
#011
SPRING, CAM PLATE SIDE
$2.81¢1 406
#012
PLATE, CLUTCH LIFTER
$20.54¢10 269
#013
BOLT, CLUTCH ADJUSTING
$2.31¢1 156
#014
PLATE, BRAKE
$13.32¢6 663
#015
SPRING, BRAKE
$1.72¢862
#016
RETAINER, BALL
$9.47¢4 738
#017
BOLT, FLANGE (6X14)
$1.27¢638
#018
WASHER, THRUST (8MM)
$0.88¢438
#019
WASHER (8MM)
$2.27¢1 138
#020
CIRCLIP (7MM)
$2.31¢1 156
#021
PIN, DOWEL (8X12)
$0.86¢431
#022
BEARING, RADIAL BALL SPECIAL (6001U)
$34.04¢17 019
#023
OIL SEAL (16X28X7) (ARAI)
$6.80¢3 400
#023
OIL SEAL (16X28X7)
$6.80¢3 400
#024
O-RING (8MM)
$3.11¢1 556
#025
O-RING (6.3X2.3)
$3.10¢1 550
#026
O-RING (18X3)
$1.06¢531
#027
NUT, HEX. (8MM)
$1.38¢688
#028
BOLT, FLANGE (6X40)
$2.79¢1 394
