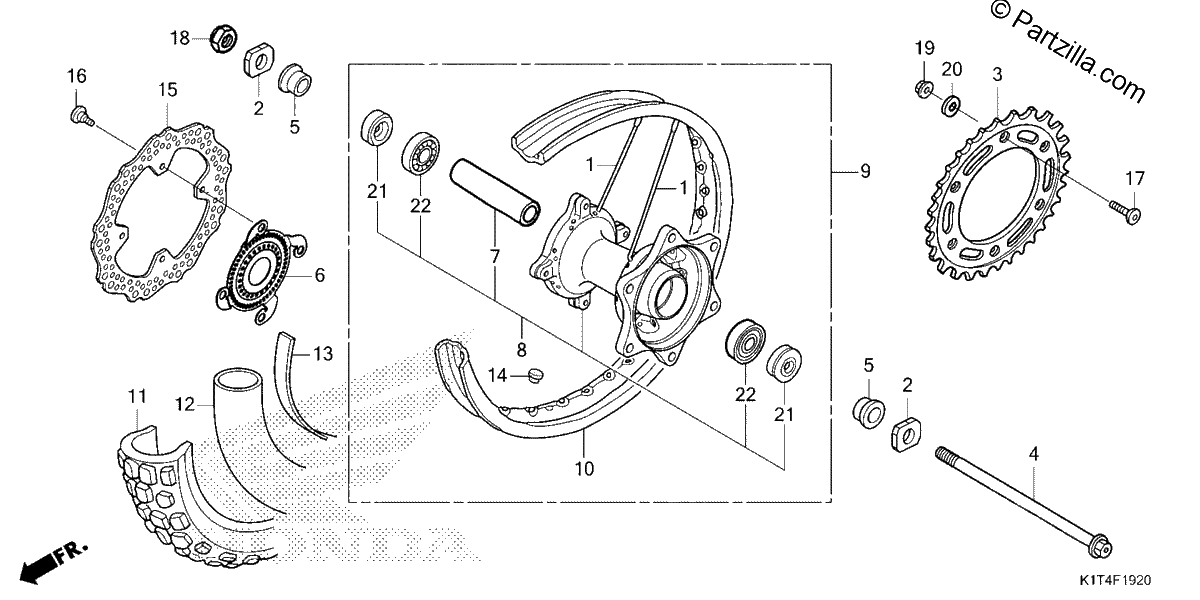

REAR WHEEL
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
SPOKE SET, RR.
$2.68¢1 340
#002
ADJUSTER, CHAIN
$10.04¢5 020
#003
SPROCKET, FINAL DRIVEN (40T)
$48.78¢24 392
#004
AXLE, Rear WHEEL
$62.01¢31 004
#005
COLLAR, RR. WHEEL
$18.34¢9 171
#006
RING, RR. PULSER
$38.92¢19 458
#007
COLLAR, RR. AXLE DISTANCE
$19.08¢9 539
#008
HUB SUB-ASSY., RR.
$225.43¢112 717
#009
WHEEL SUB-Assembly., Rear.
$512.78¢256 392
#010
RIM, RR. WHEEL (18X2.15)
$240.69¢120 348
#011
TIRE, RR. (120/80-18M/C 62P) (IRC)
$107.71¢53 854
#012
TUBE, TIRE (120/80-18) (IRC)
$39.28¢19 642
#012
TUBE, TIRE (120/80-18) (IRC)
$39.28¢19 642
#013
FLAP, TIRE (IRC)
$5.04¢2 519
#014
CAP, RIM HOLE
$4.68¢2 340
#015
DISK, RR. BRAKE
$55.97¢27 985
#016
BOLT, DISK (8X22)
$1.02¢512
#016
BOLT, DISK (8X22)
$5.51¢2 754
#017
BOLT, SPROCKET FIXING
$1.68¢839
#018
NUT, U (16MM)
$5.22¢2 610
#019
NUT, U (8MM) (FUSE RASHI)
$4.86¢2 432
#020
WASHER (8MM)
$1.26¢633
#021
OIL SEAL (25X47X6.5)
$6.64¢3 318
#022
BEARING, RADIAL BALL (6303U)
$15.58¢7 791
