REAR BRAKE MASTER CYLINDER 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

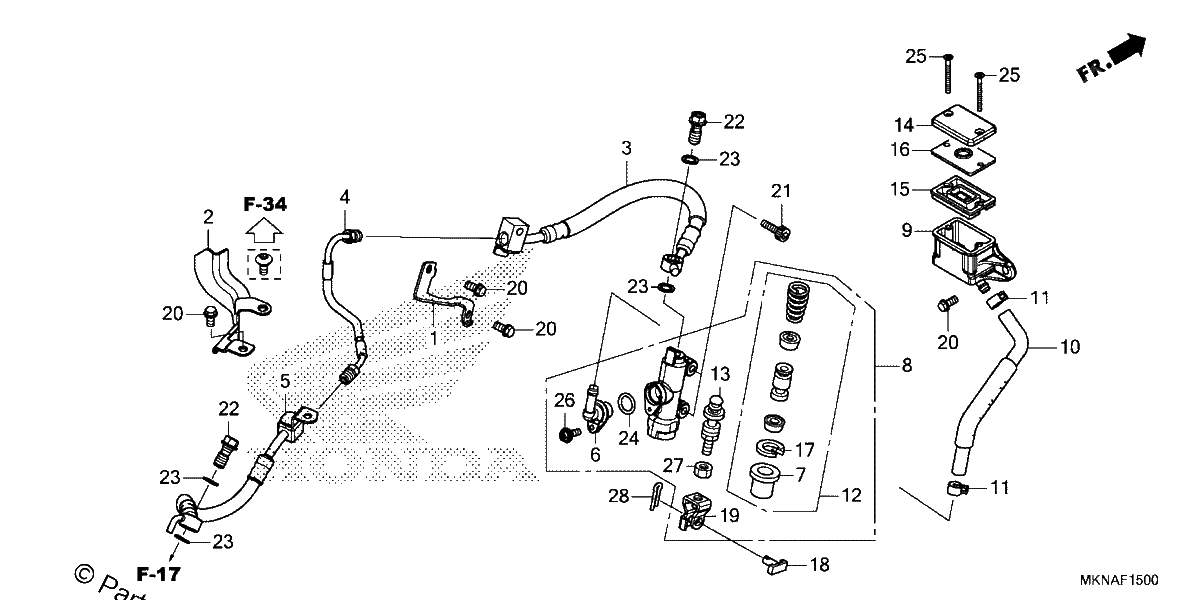

Diagrama de REAR BRAKE MASTER CYLINDER 1

Repuestos

#001
43161-MKN-D50
STAY B, Rear BRAKE
$6.99¢3 494
1
#002
43162-MKN-D50
STAY C, Rear BRAKE
$10.25¢5 125
1
#003
43310-MKN-L41
HOSE A, RR. BRAKE
$41.02¢20 513
1
#004
43314-MKN-D50
PIPE E, RR. BRAKE
$12.76¢6 381
1
#005
43315-MKN-D51
HOSE F, RR. BRAKE
$46.00¢23 000
1
#006
43503-MR7-006
CONNECTOR
$16.30¢8 150
1
#007
43504-MB2-006
BOOT
$11.74¢5 869
1
#008
43510-MKN-D51
MASTER CYLINDER SUB-ASSY., RR.BRAKE (NISSIN)
$135.49¢67 744
1
#009
43511-KV3-831
CUP, OIL
$27.52¢13 763
1
#010
43512-MKN-D51
HOSE, RR. BRAKE MASTER CYLINDER
$19.65¢9 825
1
#011
43514-KS6-701
CLAMP, MASTER CYLINDER OIL HOSE
$15.24¢7 619
1
#012
43520-MB2-315
PISTON SET, MASTER CYLINDER (NISSIN)
$53.99¢26 994
1
#013
43530-KV3-701
ROD, PUSH
$25.54¢12 769
1
#014
45513-HR0-305
CAP, MASTER CYLINDER (COO)
$5.04¢2 519
1
#014
45513-KK1-771
CAP, MASTER CYLINDER
$5.04¢2 519
1
#015
45520-MG7-006
DIAPHRAGM
$12.31¢6 156
1
#016
45521-HA2-006
PLATE, DIAPHRAGM
$12.60¢6 300
1
#017
46182-MEL-D21
CIRCLIP
$2.50¢1 250
1
#018
46503-MFG-D00
PIN, BRAKE ROD
$5.76¢2 881
1
#019
46504-MAL-601
JOINT, BRAKE ROD
$17.25¢8 625
1
#020
90013-GHB-620
BOLT, FLANGE (6X14)
$2.99¢1 494
1
#021
90135-MEL-000
BOLT, SOCKET (6X20)
$2.09¢1 044
1
#022
90145-MS9-612
BOLT, OIL (10X22)
$8.89¢4 444
1
#023
90545-300-000
WASHER, OIL BOLT
$4.85¢2 425
1
#024
91212-422-006
O-RING (14.8X2.4)
$3.30¢1 650
1
#025
93600-04040-1G
SCREW, FLAT (4X40)
$0.61¢306
1
#026
93893-04012-07
SCREW-WASHER (4X12)
$1.72¢862
1
#026
93893-04012-17
SCREW-WASHER (4X12)
$1.72¢862
1
#027
94002-08000-0S
NUT, HEX. (8MM)
$1.60¢800
1
#028
94201-20120
PIN, SPLIT (2.0X12)
$1.27¢638
1
