COWLING UPPER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

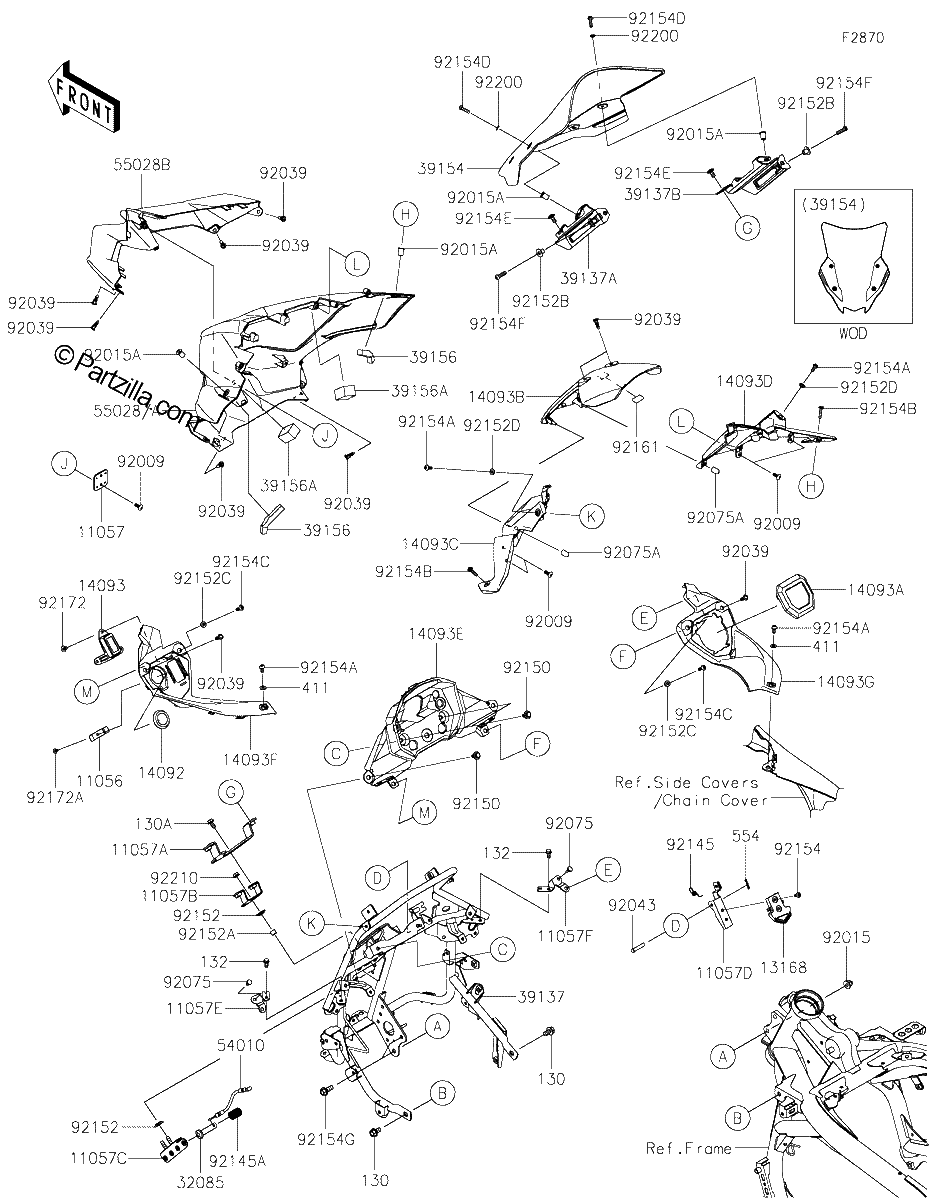

Diagrama de COWLING UPPER

Repuestos

#130
130BA0814
BOLT FLANGED,8X14
$1.84¢920
1
#130A
130BB0612
BOLT FLANGED,6X12
$2.01¢1 006
1
#132
132BA0612
BOLT-FLANGED-SMALL,6X12
$1.16¢581
1
#411
411AB0500
WASHER-PLAIN,5MM
$0.85¢426
1
#554
554DA0600
PIN-SNAP,1.2X21.2
$0.94¢471
1
#11056
11056-4313
BRACKET,CAP COVER
$1.18¢592
1
#11057
11057-7426
BRACKET,HEAD LAMP UNDER
$3.45¢1 725
1
#11057A
11057-7436
BRACKET,WINDSHIELD,CNT,Upper
$21.08¢10 540
1
#11057B
11057-7437
BRACKET,WINDSHIELD,CNT,MID
$13.80¢6 900
1
#11057C
11057-7438
BRACKET,WINDSHIELD,CNT,Lower
$9.11¢4 554
1
#11057D
11057-7439
BRACKET,WINDSHIELD,LEVER
$6.44¢3 220
1
#11057E
11057-7953
BRACKET,DASHBOARD,LH
$9.04¢4 520
1
#11057F
11057-7954
BRACKET,DASHBOARD,Right Hand
$9.04¢4 520
1
#13168
13168-0211
LEVER,ADJUST
$14.20¢7 101
1
#14092
14092-0214
COVER,DC SOCKET
$6.15¢3 076
1
#14093B
14093-1191
COVER,VISOR,CNT
$91.62¢45 810
1
#14093
14093-0565
COVER,FOG SW.
$2.55¢1 277
1
#14093A
14093-1077
COVER,USB
$35.94¢17 969
1
#14093C
14093-1192
COVER,VISOR,LH
$95.91¢47 955
1
#14093D
14093-1193
COVER,VISOR,RH
$95.91¢47 955
1
#14093E
14093-1194
COVER,DASHBOARD,CNT
$94.68¢47 340
1
#14093F
14093-1205
COVER,DASHBOARD,Left Hand
$88.64¢44 321
1
#14093G
14093-1206
COVER,DASHBOARD,RH
$79.81¢39 905
1
#32085
32085-0892
STOPPER
$6.39¢3 197
1
#39137
39137-0716
STAY-COMP,HEAD LAMP
$439.12¢219 558
1
#39137A
39137-0718
STAY-COMP,WINDSHIELD,LH
$37.18¢18 590
1
#39137B
39137-0719
STAY-COMP,WINDSHIELD,RH
$37.18¢18 590
1
#39154
39154-0447
WINDSHIELD
$164.07¢82 035
1
#39156
39156-2545
PAD,75X10X10
$1.81¢903
1
#39156A
39156-2825
PAD,37X25X20
$2.18¢1 092
1
#54010
54010-0649
CABLE,WINDSHIELD
$8.02¢4 008
1
#55028B
55028-0810
COWLING,FR
$65.35¢32 677
1
#55028
55028-0809-68N
COWLING,Upper,P Right WHITE
$426.02¢213 009
1
#55028A
55028-0809-68P
COWLING,Upper,M M G GRAY
No Disponible
1
#92009
92009-1197
SCREW,TAPPING,5X14
$3.59¢1 794
1
#92015
92015-1151
NUT,CAP,8MM
$4.57¢2 283
1
#92015A
92015-1757
NUT,WELL,5MM
$6.68¢3 341
1
#92039
92039-0709
RIVET
$2.27¢1 133
1
#92043
92043-1464
PIN,6X28
$7.41¢3 703
1
#92075
92075-1808
DAMPER,6X10X15
$1.28¢638
1
#92075A
92075-1964
DAMPER
$4.57¢2 283
1
#92145
92145-2229
SPRING,LEVER
$1.30¢650
1
#92145A
92145-2230
SPRING,STOPPER
$1.30¢650
1
#92150
92150-1689
BOLT,FLANGED,6X14
$3.61¢1 805
1
#92152C
92152-2829
COLLAR
$2.28¢1 138
1
#92152
92152-0913
COLLAR,10X20X3.75
$18.07¢9 033
1
#92152A
92152-2827
COLLAR
$5.13¢2 565
1
#92152B
92152-2828
COLLAR
$5.35¢2 674
1
#92152D
92152-2899
COLLAR
$3.76¢1 880
1
#92154
92154-0211
BOLT,SOCKET,5X10
$1.84¢920
1
#92154A
92154-0917
BOLT,SOCKET,5X12
$4.30¢2 151
1
#92154B
92154-0919
BOLT,SOCKET,5X20
No Disponible
1
#92154C
92154-1701
BOLT,SOCKET,5X16
$1.14¢569
1
#92154D
92154-2107
BOLT,SOCKET,5X18
$1.84¢920
1
#92154E
92154-2706
BOLT,SOCKET,6X12
$1.59¢793
1
#92154F
92154-3777
BOLT,SOCKET,6X22
$1.53¢765
1
#92154G
92154-4211
BOLT FLANGED,8X20
$3.65¢1 823
1
#92161
92161-1367
DAMPER,12X23
$1.14¢569
1
#92172
92172-0864
SCREW,5X10
$1.24¢621
1
#92172A
92172-1227
SCREW,CROSS,4X8
$0.54¢270
1
#92200
92200-2286
WASHER,5.2X10X1
$0.51¢253
1
#92210
92210-1514
NUT,FLANGED,6MM
$3.88¢1 938
1
