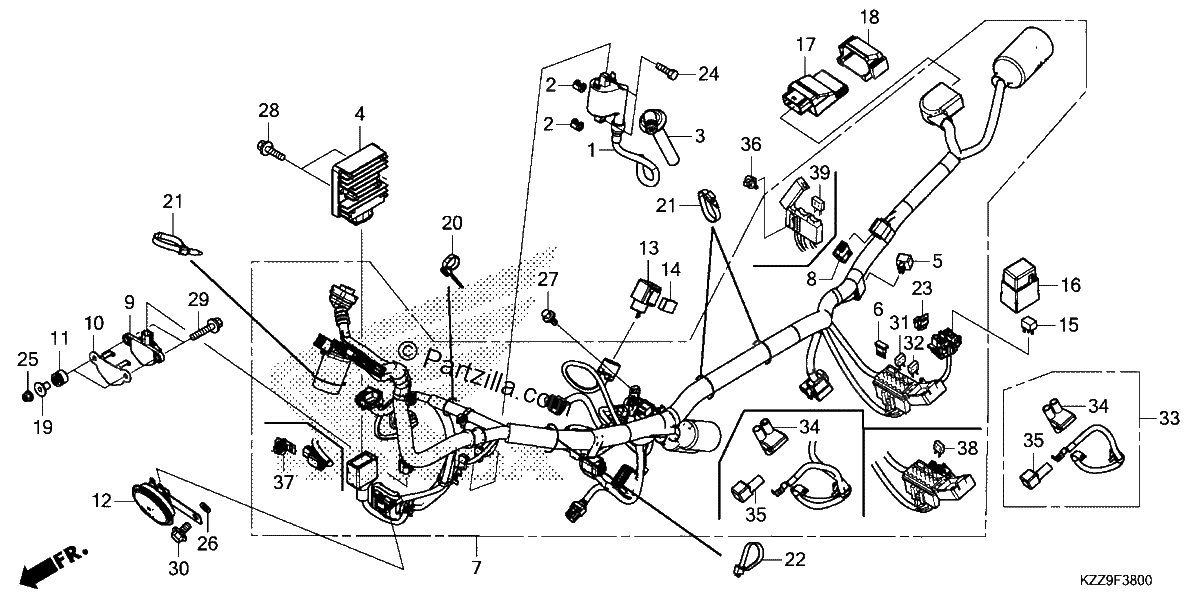

WIRE HARNESS 1
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
COIL, IGNITION
$38.08¢19 038
#002
SPACER, IGNITION COIL
$3.09¢1 547
#003
CAP ASSY., NOISE SUPPRESSOR
$41.37¢20 683
#004
RECTIFIER Assembly., REGULATOR
$268.66¢134 332
#005
RECTIFIER, SILICON
$28.21¢14 105
#006
DIODE ASSY., THREE WAY (SUMITOMO)
$11.63¢5 813
#007
WIRE HARNESS
$898.41¢449 207
#008
CAP, DUMMY (4P) (RED)
$5.36¢2 680
#009
SENSOR ASSY., BANK ANGLE (M6)
$128.48¢64 239
#010
STAY, BANK ANGLE SENSOR
$3.06¢1 529
#011
RUBBER, SPEEDOMETER MOUNTING
$5.70¢2 852
#012
HORN (HIGH)
$32.84¢16 422
#013
RELAY, TURN SIGNAL (MITSUBA)
$89.02¢44 511
#014
SUSPENSION, TURN SIGNAL RELAY (MITSUBA)
$3.36¢1 679
#015
RELAY, POWER (MICRO ISO 4P) (OMRON)
$6.83¢3 415
#016
COVER, RELAY (2P)
$4.28¢2 139
#017
PGM-FI UNIT
$212.16¢106 082
#018
CUSHION, PGM-FI UNIT
$1.79¢897
#019
COLLAR, PILLION SEAT
$5.11¢2 553
#020
BAND, WIRE
$4.99¢2 496
#021
BAND, WIRE (165MM) (BLACK)
$3.36¢1 679
#022
BAND, WIRE HARNESS
$4.15¢2 076
#023
CLIP, CONNECTOR (DARK GREEN)
$4.30¢2 151
#024
BOLT, HEX. (6X20)
$1.64¢822
#025
NUT, FLANGE (6MM)
$0.74¢368
#026
WASHER, PLAIN (8MM)
$1.06¢529
#027
BOLT, FLANGE (6X12)
$1.92¢960
#028
BOLT, FLANGE (6X22)
$2.13¢1 064
#029
BOLT, FLANGE (6X30)
$2.22¢1 110
#030
BOLT, FLANGE (8X14)
$1.54¢771
#031
FUSE, MINI (5A)
$1.37¢684
#032
FUSE, MINI (10A)
$1.56¢782
#034
COVER, STARTER MAGNETIC TERMINAL
$36.63¢18 314
#035
COVER, BATTERY TERMINAL
$4.63¢2 317
#036
CLIP, CONNECTOR (NATURAL)
$12.95¢6 474
#037
CLIP, CONNECTOR (DARK BLUE)
$6.84¢3 421
#038
FUSE, MINI (10A)
$1.56¢782
#039
FUSE, MINI (30A)
$1.98¢989
