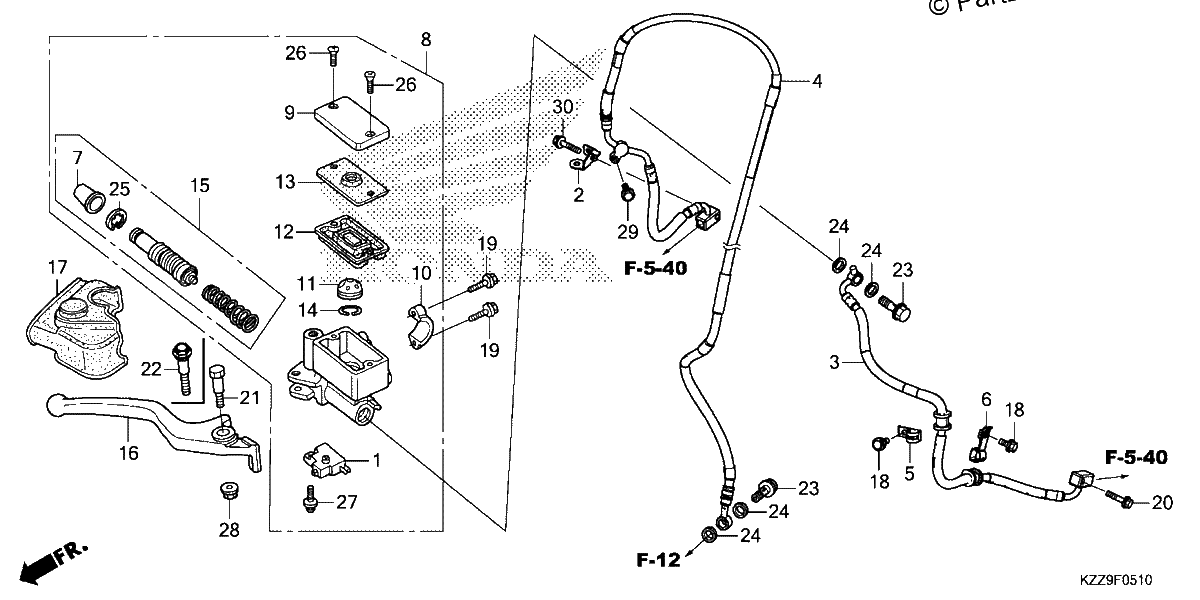

FRONT BRAKE MASTER CYLINDER 2
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
SWITCH Assembly., Front STOP (ALPS)
$21.49¢10 744
#002
STAY, FR. SPEED SENSOR WIRE
$8.95¢4 475
#003
HOSE A, FR. BRAKE
$56.45¢28 225
#004
HOSE D, FR. BRAKE
$130.54¢65 269
#005
CLAMP, FR. BRAKE HOSE
$15.58¢7 788
#006
CLAMP B, FR. BRAKE HOSE
$9.53¢4 763
#007
BOOT
$14.24¢7 119
#008
MASTER CYLINDER SUB-ASSY., FR. BRAKE (COO) (NISSIN)
$87.07¢43 537
#008
MASTER CYLINDER SUB-ASSY., FR.BRAKE (NISSIN)
$87.07¢43 537
#009
CAP, MASTER CYLINDER
$31.97¢15 987
#010
HOLDER, MASTER CYLINDER
$15.74¢7 869
#011
SEPARATOR
$9.24¢4 619
#012
DIAPHRAGM
$12.31¢6 156
#013
PLATE, DIAPHRAGM
$12.60¢6 300
#014
RING
$3.65¢1 825
#015
MASTER CYLINDER SET
$46.40¢23 200
#016
LEVER, R. HANDLEBAR (COO)
$12.59¢6 294
#016
LEVER, R. HANDLEBAR
$12.59¢6 294
#017
COVER, R. HANDLE LEVER
$6.85¢3 425
#018
BOLT, FLANGE (6X12)
$2.31¢1 156
#019
BOLT, FLANGE (6X22)
$2.99¢1 494
#020
BOLT, FLANGE (6X25)
$2.99¢1 494
#021
BOLT, HANDLE LEVER PIVOT
$7.88¢3 938
#023
BOLT, OIL (10X22)
$8.89¢4 444
#024
WASHER, OIL BOLT
$4.85¢2 425
#025
CIRCLIP
$3.10¢1 550
#026
SCREW, FLAT (4X12)
$1.16¢581
#026
SCREW, FLAT (4X12)
$1.16¢581
#027
SCREW-WASHER (4X12)
$1.72¢862
#027
SCREW-WASHER (4X12)
$1.72¢862
#028
NUT, FLANGE (6MM)
$0.80¢400
#029
BOLT, FLANGE (6X18)
$1.63¢813
#030
BOLT, FLANGE (6X28)
$1.95¢975
