THROTTLE BODY

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

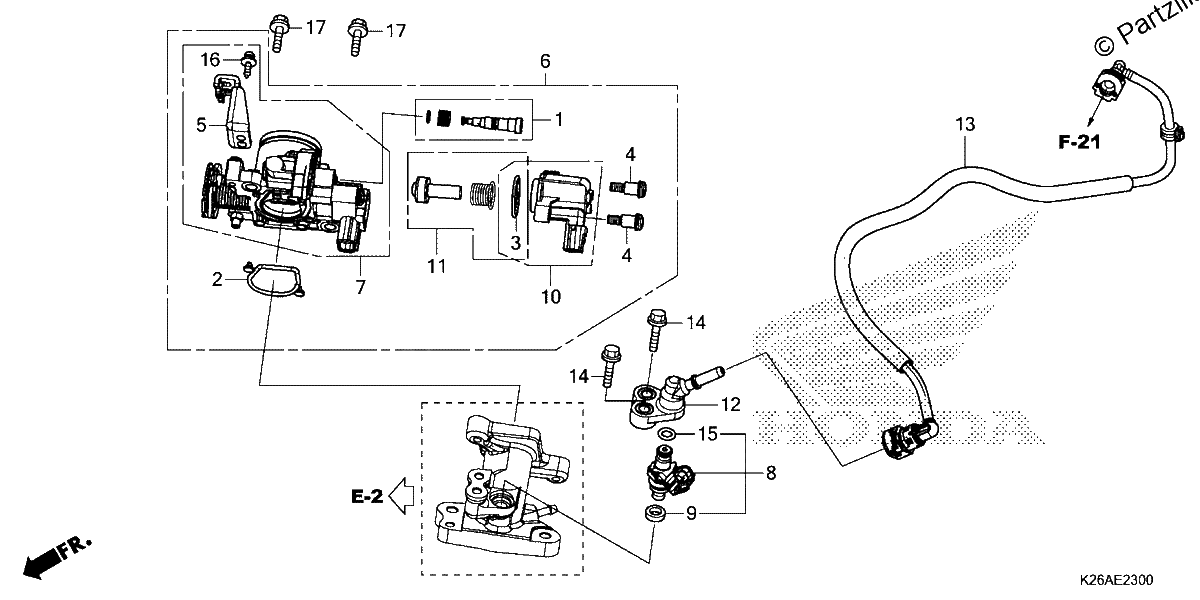

Diagrama de THROTTLE BODY

Repuestos

#001
16016-K03-H11
SCREW SET
$2.28¢1 138
1
#002
16075-KYZ-711
O-RING
$4.04¢2 018
1
#003
16077-KVB-S51
O-RING (1.9X20.4)
$1.62¢811
1
#004
16081-KYJ-901
SCREW, TORX (5X8.7)
$3.24¢1 621
1
#005
16169-K26-901
STAY, WIRE
$23.03¢11 517
1
#006
16400-K26-B11
BODY ASSY., THROTTLE (Y4B A)
$140.04¢70 018
1
#007
16410-K26-B11
BODY SET
$92.11¢46 057
1
#008
16450-K03-H11
INJECTOR ASSY., FUEL
$43.11¢21 557
1
#009
16472-KPC-D50
RING, SEAL
$2.53¢1 265
1
#010
16480-KVB-S51
SOLENOID
$48.86¢24 432
1
#011
16485-GGZ-J01
SEAT SET
$4.54¢2 271
1
#012
17560-K26-900
JOINT, INJECTOR
$48.89¢24 443
1
#013
17570-K26-C11
HOSE, FUEL FEED
$28.16¢14 082
1
#014
90001-K26-900
BOLT, FLANGE (6X22)
$7.19¢3 594
1
#015
91301-GGL-J01
O-RING (6.3X2.2)
$11.18¢5 589
1
#016
93892-05012-08
SCREW-WASHER (5X12)
$1.36¢678
1
#016
93892-05012-18
SCREW-WASHER (5X12)
$1.36¢678
1
#017
96001-06020-00
BOLT, FLANGE (6X20)
$1.47¢736
1
