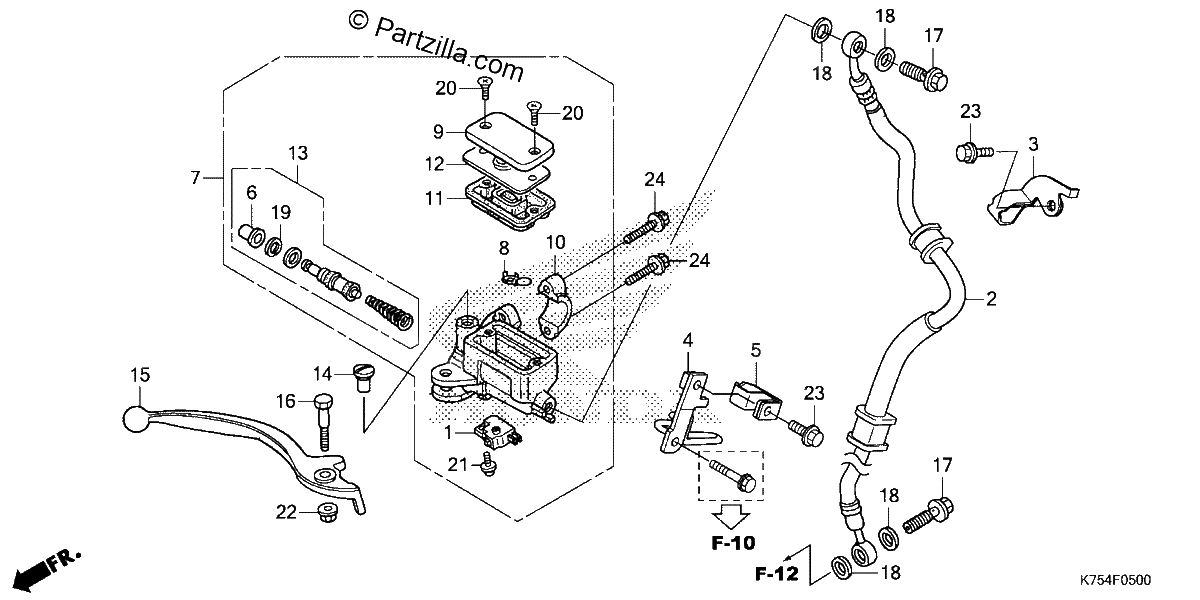

FRONT BRAKE MASTER CYLINDER 1
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
SWITCH Assembly., Front STOP (ALPS)
$21.49¢10 744
#002
HOSE, FR. BRAKE
$31.35¢15 675
#003
CLAMP, FR. BRAKE HOSE
$2.38¢1 188
#004
STAY, BRAKE HOSE CLAMP
$20.04¢10 019
#005
CLAMP B, FR. BRAKE HOSE
$2.38¢1 188
#006
BOOT
$14.24¢7 119
#007
MASTER CYLINDER SUB-ASSY., FR. BRAKE (COO) (NISSIN)
$163.30¢81 650
#007
MASTER CYLINDER SUB-ASSY., FR.BRAKE (NISSIN)
$163.30¢81 650
#008
PROTECTOR
$5.20¢2 600
#009
CAP, MASTER CYLINDER (COO)
$5.04¢2 519
#009
CAP, MASTER CYLINDER
$5.04¢2 519
#010
HOLDER, MASTER CYLINDER
$15.74¢7 869
#011
DIAPHRAGM
$10.88¢5 438
#012
PLATE, DIAPHRAGM
$2.92¢1 463
#013
MASTER CYLINDER SET (NISSIN)
$33.21¢16 606
#014
PLUG, HANDLE LEVER BRACKET
$3.20¢1 600
#015
LEVER, Right HANDLEBAR (COO)
$19.27¢9 638
#015
LEVER, R. HANDLEBAR
$19.27¢9 638
#016
BOLT, HANDLE LEVER PIVOT
$7.88¢3 938
#017
BOLT, OIL (10X22)
$8.89¢4 444
#018
WASHER, OIL BOLT
$4.85¢2 425
#019
CIRCLIP
$3.10¢1 550
#020
SCREW, FLAT (4X12)
$1.16¢581
#020
SCREW, FLAT (4X12)
$1.16¢581
#021
SCREW-WASHER (4X12)
$1.72¢862
#021
SCREW-WASHER (4X12)
$1.72¢862
#022
NUT, FLANGE (6MM)
$0.80¢400
#023
BOLT, FLANGE (6X12)
$2.31¢1 156
#024
BOLT, FLANGE (6X22)
$2.38¢1 188
