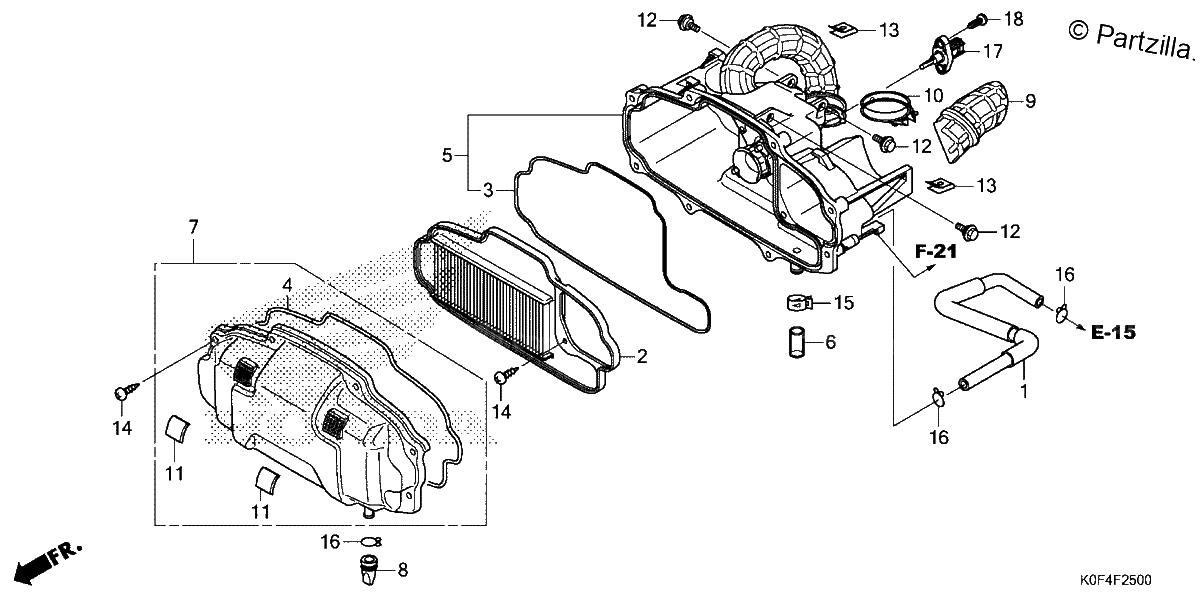

AIR CLEANER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
TUBE, BREATHER
$14.86¢7 431
#002
ELEMENT, AIR CLEANER
$9.01¢4 506
#003
SEAL, AIR CLEANER
$2.01¢1 006
#004
SEAL, AIR CLEANER COVER
$3.05¢1 525
#005
CASE SUB-ASSY., AIR CLEANER
$14.45¢7 225
#006
TUBE, VINYL (11X15X35)
$3.75¢1 875
#007
COVER SUB-Assembly., AIR CLEANER
$13.63¢6 813
#008
PLUG, AIR CLEANER DRAIN
$1.41¢706
#009
DUCT, AIR CLEANER
$15.39¢7 694
#010
BAND, CONNECTING TUBE (44)
$5.25¢2 625
#011
CUSHION, BATTERY
$2.36¢1 181
#012
BOLT, FLANGE (6MM)
$1.27¢638
#013
NUT, SPRING (4MM)
$1.25¢625
#014
SCREW, TAPPING (5X25)
$1.41¢706
#015
CLAMP, TUBE (D13)
$3.65¢1 825
#016
CLIP, TUBE (C12)
$0.60¢300
#017
SENSOR ASSY., AIR TEMPERATURE
$51.75¢25 875
#018
SCREW, TAPPING (5X20)
$2.21¢1 106
