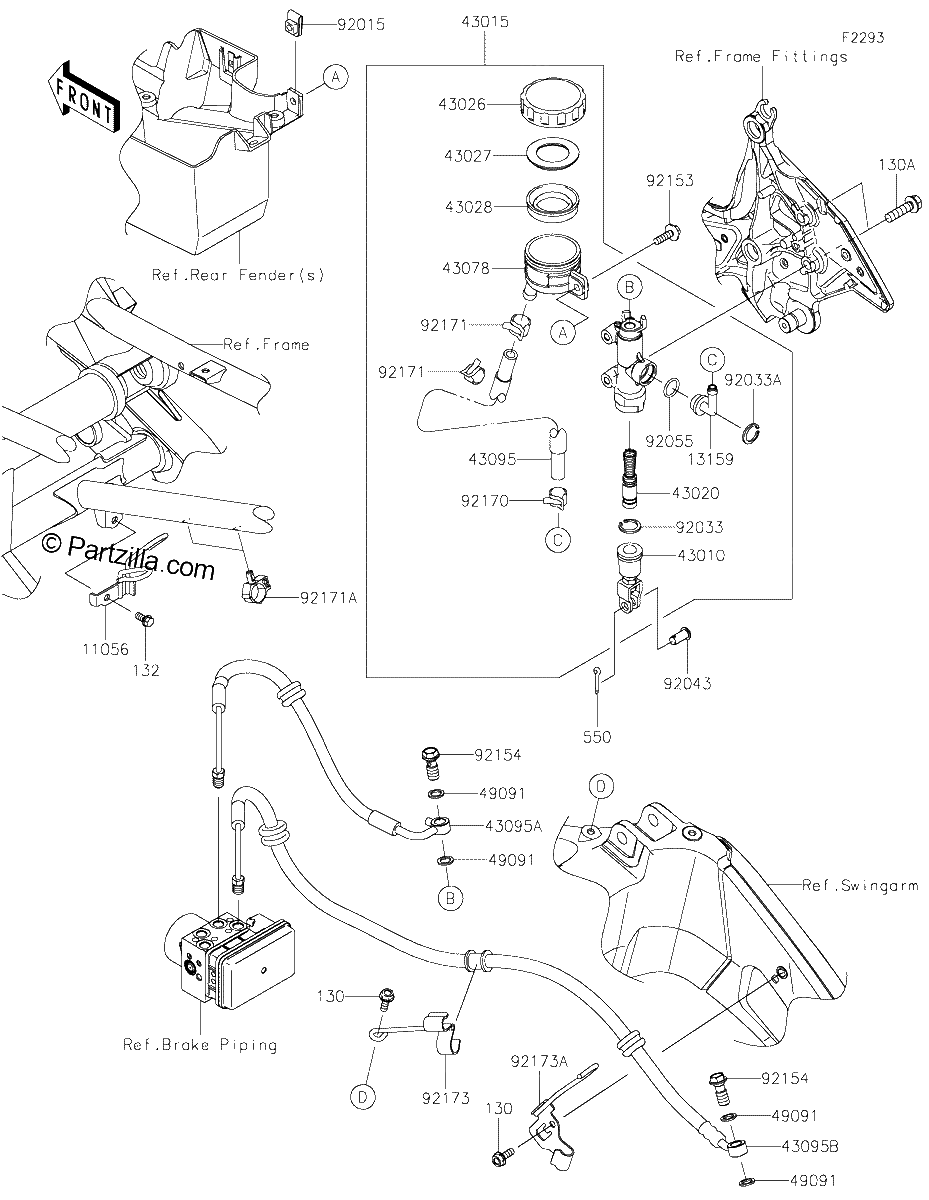

REAR MASTER CYLINDER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#130
BOLT FLANGED,6X16
$1.78¢891
#130A
BOLT-FLANGED,8X30
$1.03¢518
#132
BOLT-FLANGED-SMALL,6X12
$1.78¢891
#550
PIN COTTER,2.0X15
$1.08¢541
#11056
BRACKET,FRAME COMP
$9.84¢4 922
#13159
CONNECTOR
$12.83¢6 417
#43010
ROD Assembly BRAKE
$53.67¢26 835
#43015
CYLINDER Assembly MASTER,Rear
$308.19¢154 094
#43020
PISTON-COMP-BRAKE
$68.37¢34 184
#43026
CAP BRAKE
$35.82¢17 911
#43027
PLATE DIAPHRAGM
$4.84¢2 421
#43028
DIAPHRAGM,MASTER CYLINDER
$17.26¢8 631
#43078
RESERVOIR,RR MASTER CYLINDER
$31.25¢15 623
#43095B
HOSE BRAKE,ABS UNIT Rear CAL.
$170.38¢85 192
#43095A
HOSE BRAKE,Rear M/C ABS UNIT
$158.73¢79 367
#43095
HOSE-BRAKE,500MM
$17.01¢8 504
#49091
WASHER-SEAL,10.1X14.5X1.5
$1.87¢937
#92015
NUT,6MM
$6.72¢3 358
#92033A
RING-SNAP,20.5MM
$4.53¢2 266
#92033
RING SNAP,20.9X24.6X1.2
$7.12¢3 559
#92043
PIN
$2.85¢1 426
#92055
RING O,14.8X2.4
$3.38¢1 691
#92153
BOLT,6X22
$1.95¢977
#92154
BOLT,FLANGED,10X23
$4.61¢2 306
#92170
CLAMP,HOSE
$4.57¢2 283
#92171A
CLAMP
$5.04¢2 519
#92171
CLAMP,HOSE
$5.99¢2 996
#92173
CLAMP,SWING ARM,FR
$7.80¢3 899
#92173A
CLAMP,SWING ARM
$9.60¢4 801
