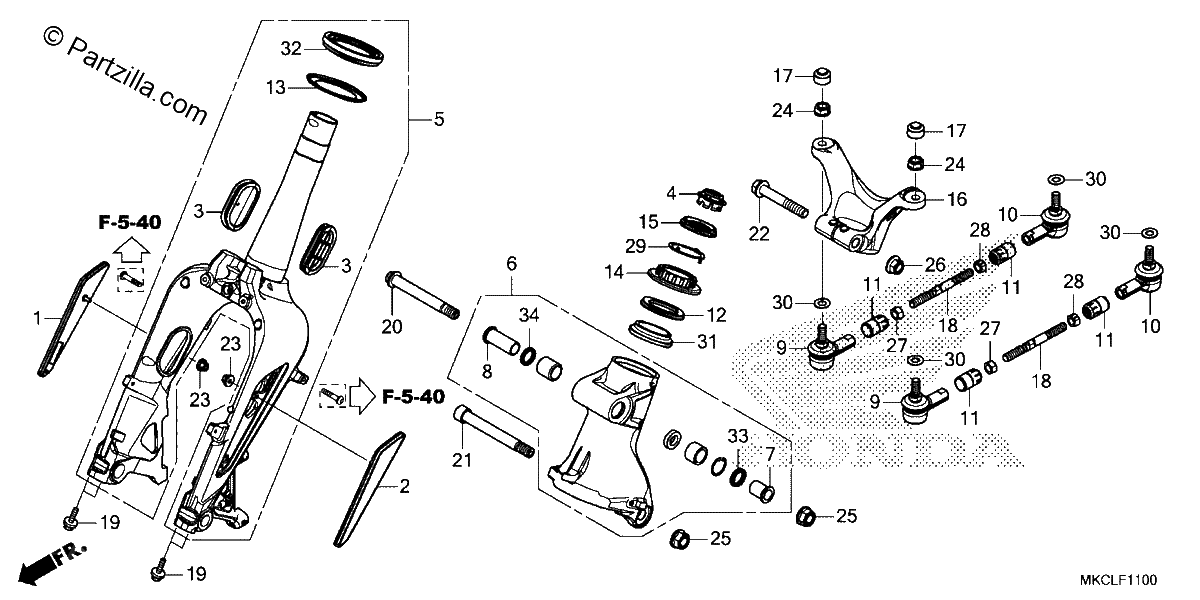

FRONT FORK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
REFLECTOR, R. FR. REFLEX
$69.80¢34 900
#002
REFLECTOR, L Front REFLEX
$69.80¢34 900
#003
GROMMET, FR. FORK
$9.24¢4 619
#004
CAP, STEM PIPE
$11.16¢5 581
#005
FORK SUB-ASSY., FR. (TYPE2)
$1655.77¢827 887
#006
HOLDER ASSY., FR. FORK (TYPE2)
$470.49¢235 244
#007
COLLAR, L. PIVOT DISTANCE
$17.63¢8 813
#008
COLLAR B, R. PIVOT DISTANCE
$24.29¢12 144
#009
END, R. TIE ROD (RIGHT HAND THREAD)
$55.35¢27 675
#010
END, L. TIE ROD (LEFT HAND THREAD)
$55.35¢27 675
#011
COVER, TIE ROD
$18.17¢9 087
#012
DUST SEAL (UPPER)
$18.44¢9 219
#013
DUST SEAL (LOWER)
$25.20¢12 600
#014
THREAD, STEERING HEAD TOP
$50.49¢25 244
#015
SEAL, FR. FORK
$11.85¢5 925
#016
ARM, STEERING
$179.16¢89 581
#017
CAP, NUT
$12.40¢6 200
#018
TIE ROD, STEERING
$14.23¢7 113
#019
BOLT (8X45)
$3.65¢1 825
#020
BOLT, HEAD PIPE PIVOT (UPPER)
$37.05¢18 525
#021
BOLT, HEAD PIPE PIVOT (LOWER)
$40.23¢20 113
#022
BOLT, FLANGE (12X78)
$10.51¢5 256
#023
NUT, FLANGE (5MM) (FUSE RASHI)
$6.00¢3 000
#024
NUT, U (10MM) (FUSE RASHI)
$4.45¢2 225
#025
NUT, U (16MM)
$10.84¢5 419
#026
NUT, U FLANGE (12MM)
$3.36¢1 681
#027
NUT A, HEX. (10MM)
$4.26¢2 131
#028
NUT B, HEX. (10MM) (LH)
$4.26¢2 131
#029
WASHER, LOCK
$9.45¢4 725
#030
WASHER (10X20X1.0)
$4.00¢2 000
#031
BEARING, HEAD PIPE (UPPER)
$50.29¢25 144
#032
BEARING, HEAD PIPE (LOWER)
$116.74¢58 369
#033
OIL SEAL (22X30X5)
$7.04¢3 519
#034
DUST SEAL (22X29X4) (ARAI)
$7.18¢3 588
