SWINGARM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

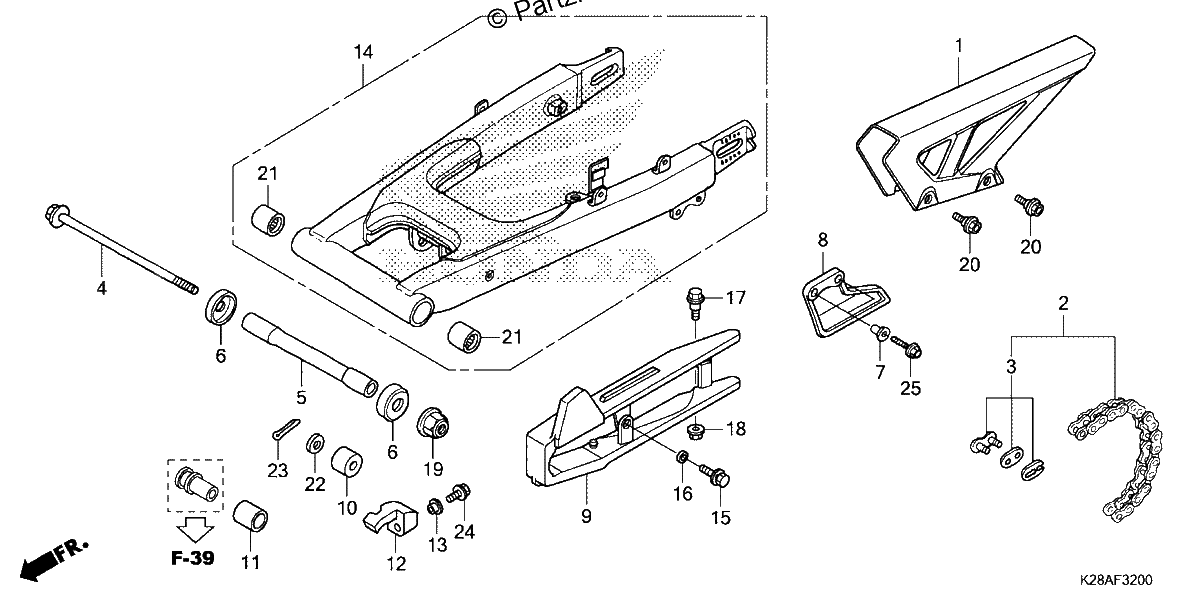

Diagrama de SWINGARM

Repuestos

#001
40510-K28-910
CASE, DRIVE CHAIN
$29.68¢14 841
1
#002
40530-K28-911
CHAIN, DRIVE (DID428HD-112RB) (DAIDO)
$125.48¢62 738
1
#003
40531-355-013
MASTER LINK (DAIDO)
$4.62¢2 311
1
#004
52101-K28-910
BOLT, SWINGARM PIVOT
$21.88¢10 942
1
#005
52141-K28-910
COLLAR, SWINGARM
$40.16¢20 079
1
#006
52144-GF5-003
DUST SEAL (31X38.5X7) (NOK)
$13.10¢6 549
1
#006
52144-K28-910
CAP, RR. SWINGARM DUST SEAL
$13.10¢6 549
1
#007
52157-K28-910
COLLAR, CHAIN GUARD
$3.68¢1 840
1
#008
52160-K28-910
GUARD, CHAIN
$24.53¢12 265
1
#009
52170-K28-910
SLIDER, CHAIN
$83.51¢41 757
1
#010
52175-K28-910
ROLLER, CHAIN (UPPER)
$8.46¢4 232
1
#012
52185-K28-910
SLIDER, CHAIN (LOWER)
$15.87¢7 935
1
#013
52186-K28-910
WASHER (6MM)
$2.89¢1 443
1
#014
52200-K28-910
SWINGARM SUB-ASSY., RR.
$376.79¢188 393
1
#015
90107-K28-910
BOLT-WASHER (5X16)
$2.89¢1 443
1
#016
90108-K28-910
COLLAR (10.5X5.3X3)
$5.63¢2 818
1
#017
90113-KYK-910
BOLT, FLANGE (6X20)
$4.09¢2 047
1
#018
90302-KYA-601
NUT, FLANGE (6MM) (PT)
$2.64¢1 322
1
#019
90306-KYA-601
NUT, FLANGE (12MM) (PT)
$3.36¢1 679
1
#020
90653-KYK-910
BOLT, SPECIAL (6MM)
$3.36¢1 679
1
#021
91070-GC4-601
BEARING, NEEDLE (20X26X20) (NTN)
$26.42¢13 208
1
#022
94102-08700
WASHER, PLAIN (8MM)
$1.12¢558
1
#023
94201-20150
PIN, SPLIT (2.0X15)
$1.23¢615
1
#024
95701-06012-07
BOLT, FLANGE (6X12)
$1.92¢960
1
#025
95701-06018-00
BOLT, FLANGE (6X18)
$1.92¢960
1
#025
95801-06018-00
BOLT, FLANGE (6X18)
$1.92¢960
1
