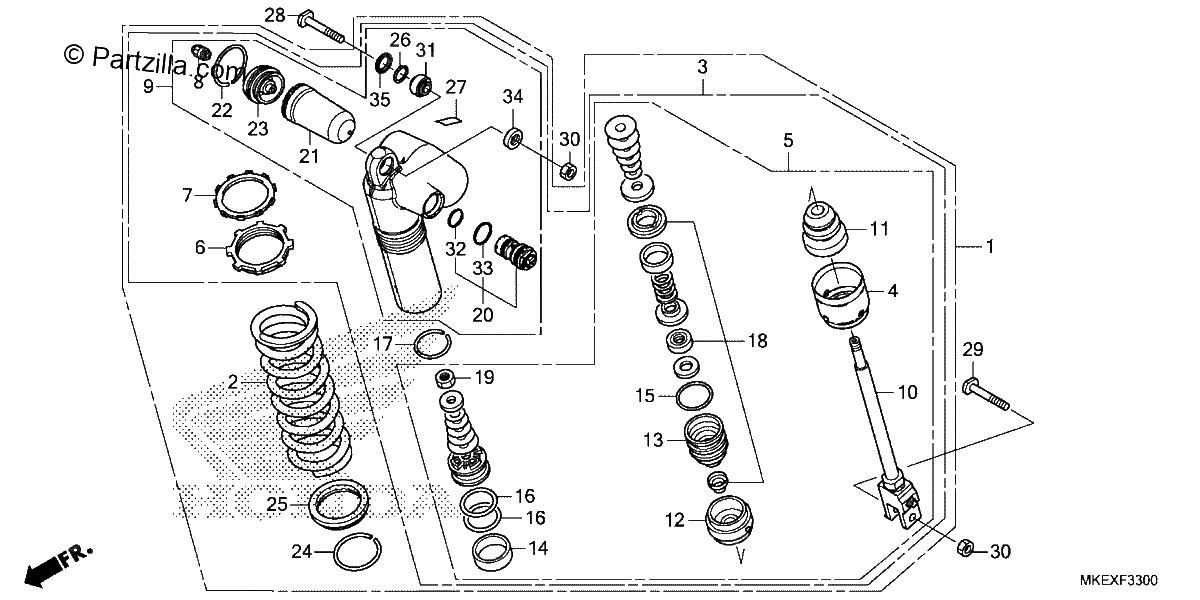

REAR SHOCK ABSORBER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
CUSHION Assembly., Rear.
$1441.06¢720 532
#002
SPRING, RR. SHOCK ABSORBER (52N/MM)
$278.43¢139 213
#002
SPRING, RR. SHOCK ABSORBER (54N/MM)
$278.43¢139 213
#002
SPRING, RR. SHOCK ABSORBER (50N/MM)
$258.11¢129 053
#003
DAMPER, RR.
$1122.01¢561 004
#004
STOPPER, SPRING SEAT
$28.22¢14 110
#005
ROD, PISTON
$557.62¢278 812
#006
ADJUSTER, SPRING
$35.50¢17 750
#007
NUT, ADJUSTER
$17.22¢8 608
#008
CAP, AIR VALVE
$5.63¢2 818
#009
CASE, DAMPER
$1034.98¢517 488
#010
ROD
$488.45¢244 225
#011
RUBBER, STOPPER
$16.79¢8 395
#012
PLATE, END
$28.57¢14 283
#013
CASE, ROD GUIDE
$54.28¢27 140
#014
RING, PISTON
$18.64¢9 321
#015
O-RING (3.5X43.7)
$4.42¢2 208
#016
O-RING (42.5X2.0)
$3.85¢1 926
#017
RING, STOPPER
$2.81¢1 403
#018
OIL SEAL SET
$26.54¢13 271
#019
NUT, HEX. (12MM)
$3.36¢1 679
#020
ADJUSTER, COMPRESSION DAMPING FORCE
$161.49¢80 747
#021
BLADDER
$22.53¢11 264
#022
RING, STOPPER
$3.43¢1 713
#023
CAP, CHAMBER
$32.75¢16 376
#024
RING, STOPPER
$6.88¢3 439
#025
SEAT, SPRING
$28.84¢14 421
#026
RING, STOPPER
$4.38¢2 191
#027
LABEL, RR. DAMPER WARNING
$7.97¢3 985
#028
BOLT, CUSHION (UPPER) (10X53)
$3.36¢1 679
#029
BOLT, CUSHION (LOWER) (10X43.5)
$9.68¢4 842
#030
NUT, U (10MM)
$4.17¢2 087
#031
BEARING, SPHERICAL (10)
$37.41¢18 705
#032
O-RING (21.5X1.5)
$3.36¢1 679
#033
O-RING (26.2X1.9)
$3.42¢1 708
#034
DUST SEAL, RR. CUSHION PIVOT
$5.44¢2 720
#035
DUST SEAL (16X26X3)
$6.19¢3 093
