REAR WHEEL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

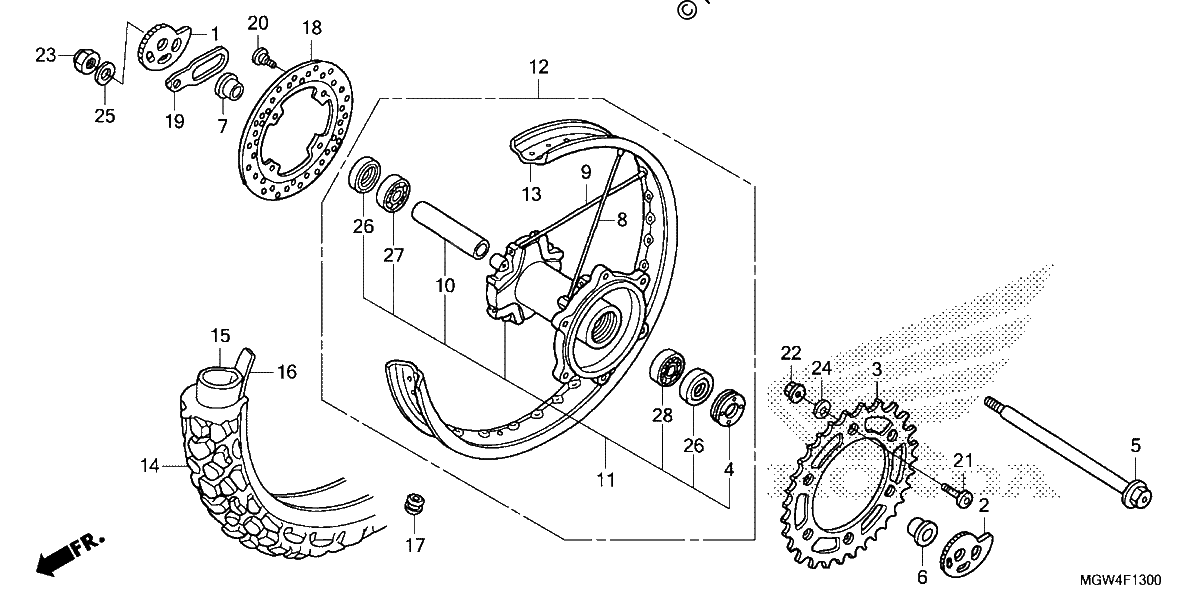

Diagrama de REAR WHEEL

Repuestos

#001
40544-MN1-670
ADJUSTER, Right CHAIN
$13.03¢6 515
1
#002
40545-MY6-670
ADJUSTER, L CHAIN
$18.76¢9 378
1
#003
41201-MY6-700
SPROCKET, FINAL DRIVEN (45T)
$120.92¢60 461
1
#004
41231-429-000
RETAINER, BEARING
$33.00¢16 502
1
#005
42301-MY6-670
AXLE, RR. WHEEL
$100.65¢50 324
1
#006
42312-MY6-670
COLLAR, Rear WHEEL SIDE
$39.93¢19 964
1
#007
42313-KZ1-670
COLLAR, Rear WHEEL SIDE
$21.09¢10 545
1
#008
42610-MY6-405
SPOKE SET A, RR.
$5.44¢2 720
1
#009
42611-MY6-405
SPOKE SET B, RR.
$5.44¢2 720
1
#010
42620-KAE-000
COLLAR, RR. AXLE DISTANCE
$18.53¢9 263
1
#011
42635-MY6-880
HUB SUB-ASSY., RR. WHEEL
$492.91¢246 456
1
#012
42650-MY6-326
WHEEL SUB-Assembly., Rear.
$1296.52¢648 261
1
#013
42701-MY6-672
RIM, RR. WHEEL (DAIDO)
$366.79¢183 396
1
#014
42711-MY6-675
TIRE, RR. (4.60-18) (63S) (DUNLOP)
$172.95¢86 474
1
#014
42711-MY6-676
TIRE, Rear. (4.60-18) (63S) (BS)
$195.51¢97 756
1
#014
42711-MY6-677
TIRE, Rear. (4.60-18) (63S) (DUNLOP)
$172.95¢86 474
1
#014
42711-MY6-678
TIRE, Rear. (4.60-18) (63S) (BS)
$195.51¢97 756
1
#015
42712-KS7-641
TUBE, TIRE (120/90-18) (DUNLOP)
$39.28¢19 642
1
#015
42712-434-003
TUBE, TIRE (4.60-18) (BS)
$39.28¢19 642
1
#015
42712-435-003
TUBE, TIRE (4.00-18) (BS)
$45.87¢22 937
1
#015
08400-34001
TUBE, TIRE (4.00-18) (BS)
$45.87¢22 937
1
#015
42712-KT1-671
TUBE, TIRE (120/80-18) (IRC)
No Disponible
1
#015
42712-KT1-672
TUBE, TIRE (120/80-18) (IRC)
$39.28¢19 642
1
#015
42712-KT1-673
TUBE, TIRE (120/80-18) (IRC)
$39.28¢19 642
1
#015
42712-KV6-009
TUBE, TIRE (4.60-18) (YOKOHAMA)
$39.28¢19 642
1
#015
42712-428-009
TUBE, TIRE (4.60-18) (BS)
$45.87¢22 937
1
#015
42712-425-003
TUBE, TIRE (4.00-18) (BS)
$45.87¢22 937
1
#015
42712-401-681
TUBE, TIRE (3.25/3.50-18) (4.10-18) (DUNLOP)
$45.87¢22 937
1
#015
42712-400-003
TUBE, TIRE (4.10-18) (BS)
$39.28¢19 642
1
#015
42712-374-003
TUBE, TIRE (3.75-18) (BS)
$45.87¢22 937
1
#015
42712-340-006
TUBE, TIRE (4.00-18) (NITTO)
$45.87¢22 937
1
#015
42712-312-003
TUBE, TIRE (4.00-18) (BS)
$45.87¢22 937
1
#015
42712-310-004
TUBE, TIRE (4.00-18) (BS)
$45.87¢22 937
1
#015
42712-300-004
TUBE, TIRE (4.00/4.60-18) (DUNLOP)
$39.28¢19 642
1
#015
42712-300-003
TUBE, TIRE (4.00-18) (BS)
$45.87¢22 937
1
#015
42712-300-000
TUBE, TIRE (4.00-18)
$45.87¢22 937
1
#016
42713-300-004
FLAP, TIRE (1.85/2.15-18) (DUNLOP)
$6.84¢3 421
1
#016
42713-304-003
FLAP, TIRE (BS)
$7.45¢3 726
1
#017
42717-329-000
CAP, RIM HOLE
$4.68¢2 340
1
#018
43251-MV4-000
DISK, Rear BRAKE
$245.61¢122 803
1
#018
43251-MBB-D41
DISK, Rear BRAKE
$245.61¢122 803
1
#018
43251-MEE-000
DISK, RR. BRAKE
$245.61¢122 803
1
#018
43251-KEA-000
DISK, RR. BRAKE
$245.61¢122 803
1
#019
52162-KF0-000
STOPPER, Rear AXLE
$6.08¢3 042
1
#020
90105-MK5-010
BOLT, DISK (8X22)
$5.51¢2 754
1
#021
90125-MN1-671
BOLT, SPROCKET FIXING
$5.51¢2 754
1
#022
90304-KAE-871
NUT, U (10MM)
$4.83¢2 415
1
#023
90305-GW2-711
NUT, U (16MM)
$17.49¢8 746
1
#024
90438-463-000
WASHER, SPECIAL (11X21X2.3)
$3.15¢1 576
1
#025
90559-469-000
WASHER, PLAIN (16MM)
$5.96¢2 978
1
#026
91216-729-921
OIL SEAL (25X40X7)
$8.31¢4 157
1
#026
91252-428-000
OIL SEAL (25X40X7)
$8.31¢4 157
1
#027
96140-62030-10
BEARING, RADIAL BALL (6203U)
$12.72¢6 360
1
#028
96140-63030-10
BEARING, RADIAL BALL (6303U)
$15.58¢7 791
1
