COWLING

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

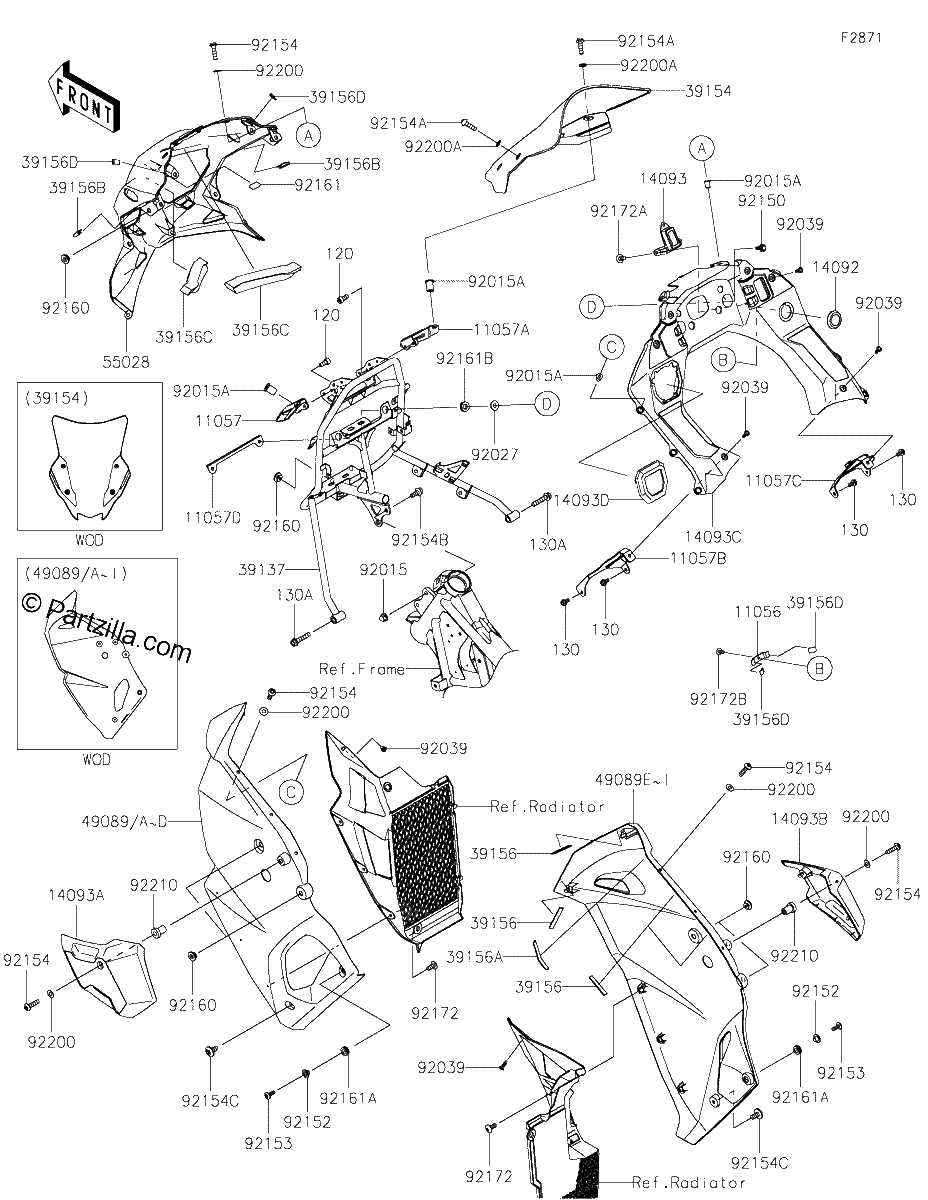

Diagrama de COWLING

Repuestos

#120
120CB0512
BOLT-SOCKET,5X12
$1.56¢782
1
#130
130BA0612
BOLT-FLANGED,6X12 | [CA]
$1.51¢753
1
#130A
130BA0840
BOLT-FLANGED,8X40
$1.72¢862
1
#11056
11056-4313
BRACKET,CAP COVER
$1.18¢592
1
#11057
11057-4397
BRACKET,WINDSHIELD,Left Hand
$5.04¢2 519
1
#11057A
11057-4398
BRACKET,WINDSHIELD,Right Hand
$5.04¢2 519
1
#11057B
11057-7243
BRACKET,DASHBOARD,LH
$10.35¢5 175
1
#11057C
11057-7245
BRACKET,DASHBOARD,RH
$12.27¢6 135
1
#11057D
11057-7893
BRACKET,METER
$5.59¢2 794
1
#14092
14092-0214
COVER,DC SOCKET
$6.15¢3 076
1
#14093C
14093-1076
COVER,DASHBOARD
$260.52¢130 260
1
#14093
14093-0565
COVER,FOG SW.
$2.55¢1 277
1
#14093A
14093-1074
COVER,SHROUD,Left Hand
$50.34¢25 168
1
#14093B
14093-1075
COVER,SHROUD,Right Hand
$50.34¢25 168
1
#14093D
14093-1077
COVER,USB
$35.94¢17 969
1
#39137
39137-0731
STAY-COMP,COWLING
$378.87¢189 434
1
#39154
39154-0434
WINDSHIELD
$164.06¢82 030
1
#39156
39156-1924
PAD,10X50X2
$2.17¢1 087
1
#39156A
39156-2238
PAD,10X80X2
$1.30¢650
1
#39156B
39156-2573
PAD,25X25X2
$1.21¢604
1
#39156C
39156-2762
PAD,20X15X150
$5.20¢2 599
1
#39156D
39156-2849
PAD,20X10X2
$0.75¢374
1
#49089H
49089-0996-667
SHROUD ENGINE,Right Hand,P C WHITE
$204.21¢102 103
1
#49089E
49089-0996-667
SHROUD ENGINE,Right Hand,P C WHITE
$204.21¢102 103
1
#49089E
49089-0996-B1
SHROUD ENGINE,Right Hand,F RED
$228.95¢114 477
1
#49089E
49089-0996-51P
SHROUD-ENGINE,RH,C.L.GREEN
$204.21¢102 103
1
#49089E
49089-0996-63Y
SHROUD ENGINE,Right Hand,M M D GREEN
$224.61¢112 303
1
#49089E
49089-0996-36S
SHROUD-ENGINE,RH,P.S.GRAY
$204.21¢102 103
1
#49089
49089-0995-B1
SHROUD ENGINE,Left Hand,F RED
$204.21¢102 103
1
#49089
49089-0995-36S
SHROUD-ENGINE,LH,P.S.GRAY
$204.21¢102 103
1
#49089
49089-0995-51P
SHROUD-ENGINE,LH,C.L.GREEN
$204.21¢102 103
1
#49089
49089-0995-63Y
SHROUD ENGINE,Left Hand,M M D GREEN
$224.61¢112 303
1
#49089C
49089-0995-667
SHROUD ENGINE,Left Hand,P C WHITE
$204.21¢102 103
1
#49089
49089-0995-667
SHROUD ENGINE,Left Hand,P C WHITE
$204.21¢102 103
1
#55028
55028-0800
COWLING,UPP
$137.54¢68 770
1
#92015
92015-1151
NUT,CAP,8MM
$4.57¢2 283
1
#92015A
92015-1757
NUT,WELL,5MM
$6.68¢3 341
1
#92027
92027-1848
COLLAR,L=7.4
$4.28¢2 139
1
#92039
92039-0709
RIVET
$2.27¢1 133
1
#92150
92150-1339
BOLT,6X20
$4.01¢2 007
1
#92152
92152-2770
COLLAR
$3.53¢1 765
1
#92153
92153-0816
BOLT,6X18
$1.87¢937
1
#92154
92154-0216
BOLT,SOCKET,5X20
$1.84¢920
1
#92154A
92154-1945
BOLT,SOCKET,5X18
$1.53¢765
1
#92154B
92154-2314
BOLT,SOCKET,8X20
$2.08¢1 041
1
#92154C
92154-2355
BOLT,SOCKET,6X12
$1.71¢857
1
#92160
92160-1613
DAMPER
$3.40¢1 702
1
#92161
92161-1367
DAMPER,12X23
$1.14¢569
1
#92161A
92161-2091
DAMPER,10X18X6.5
$2.08¢1 041
1
#92161B
92161-2168
DAMPER,10X20X6
$4.22¢2 110
1
#92172
92172-0821
SCREW,5X12
$0.87¢437
1
#92172A
92172-0864
SCREW,5X10
$1.24¢621
1
#92172B
92172-1227
SCREW,CROSS,4X8
$0.54¢270
1
#92200
92200-0006
WASHER,NYLONE,5.3X11.5X0.5
$1.63¢816
1
#92200A
92200-2286
WASHER,5.2X10X1
$0.51¢253
1
#92210
92210-0001
NUT,5MM
$5.57¢2 783
1
