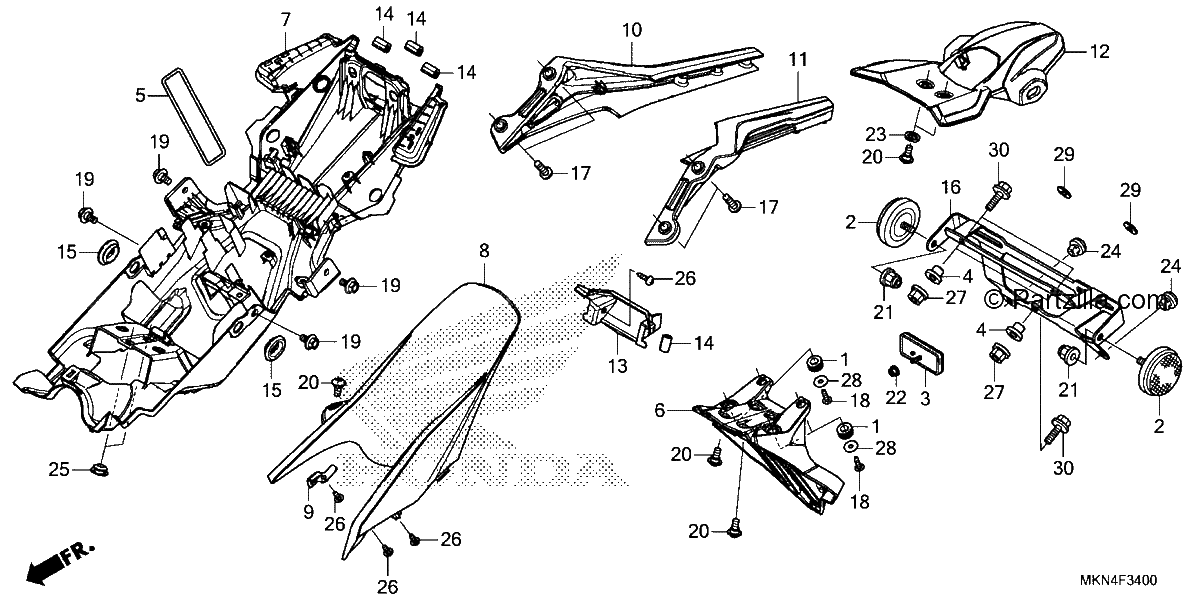

REAR FENDER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
RUBBER, MOUNTING
$1.38¢688
#002
REFLECTOR, Rear REFLEX (RED)
$15.50¢7 750
#003
REFLECTOR, REFLEX
$8.94¢4 469
#004
COLLAR, Front WHEEL COVER
$6.20¢3 100
#005
BAND, U-LOCK
$6.29¢3 144
#006
FENDER A, Rear.
$22.73¢11 363
#007
FENDER B, RR.
$34.51¢17 256
#008
FENDER C, Rear.
$13.69¢6 844
#009
STAY, RR. FENDER C
$5.16¢2 581
#010
STAY, R. RR. FENDER
$193.17¢96 587
#011
STAY, L Rear FENDER
$186.95¢93 475
#012
COVER, LICENSE LIGHT
$22.99¢11 494
#013
COVER SET, Rear FENDER STAY (TYPE1) (WL)
$9.49¢4 744
#014
RUBBER, TAIL COVER
$1.95¢975
#015
GROMMET, AIR CLEANER HOUSING
$6.81¢3 406
#016
BRACKET, NUMBER PLATE
$69.42¢34 713
#017
BOLT, SOCKET (8X28)
$1.57¢788
#018
SCREW, TAPPING (4X16)
$2.99¢1 494
#019
BOLT, FLANGE (6MM)
$4.06¢2 031
#020
SCREW, SPECIAL (6X14)
$1.72¢862
#021
NUT, U (6MM) (FUJI SEIMITSU)
$1.79¢894
#022
NUT, U (5MM)
$0.86¢431
#023
WASHER, RUBBER (6MM)
$1.05¢525
#024
PLUG, HOLE
$3.30¢1 650
#025
PLUG, HOLE
$2.07¢1 037
#026
SCREW, TAPPING (4X12)
$1.16¢581
#027
NUT, FLANGE (6MM)
$0.80¢400
#028
WASHER, PLAIN (4MM)
$1.21¢606
#029
WASHER, PLAIN (6MM)
$1.27¢638
#030
BOLT, FLANGE (6X14)
$1.54¢769
