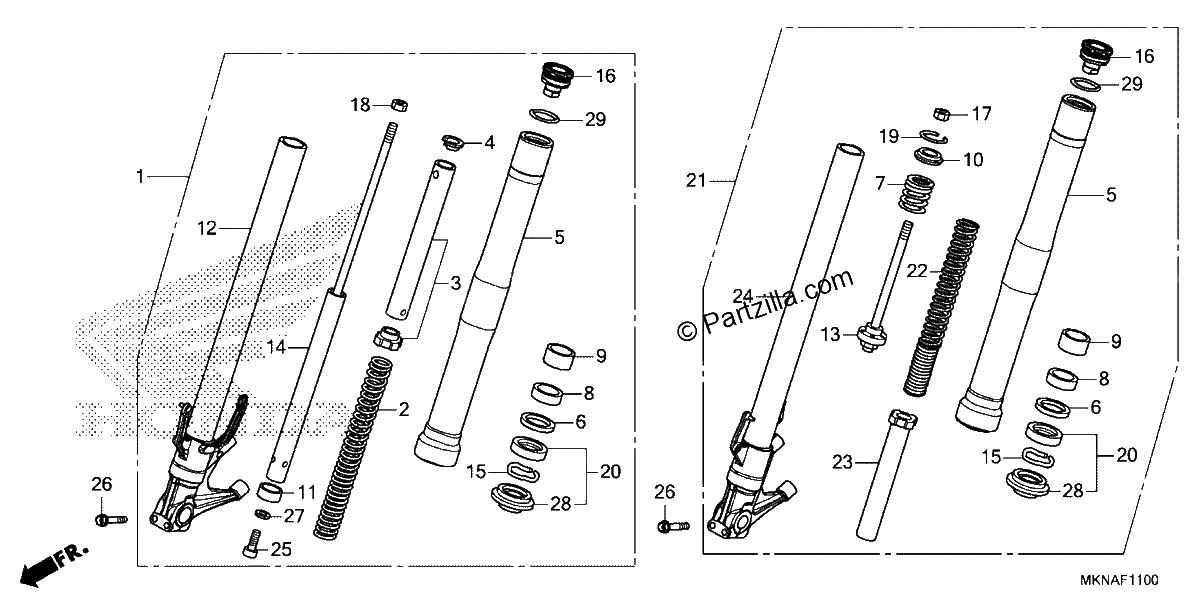

FRONT FORK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
FORK Assembly., Right Front. (SHOWA)
$884.08¢442 038
#002
SPRING, Right Front.
$48.50¢24 250
#003
COLLAR, SPRING (SHOWA)
$33.79¢16 894
#004
STOPPER, SPRING SEAT (SHOWA)
$19.77¢9 888
#005
TUBE (OUTER)
$326.27¢163 138
#006
RING, BACK-UP (SHOWA)
$11.29¢5 644
#007
SPRING B, REBOUND (SHOWA)
$6.25¢3 125
#008
BUSH, GUIDE
$8.80¢4 400
#009
BUSH, SLIDER
$8.80¢4 400
#010
SEAT, STOPPER
$11.90¢5 950
#011
PLATE, CENTERING
$2.66¢1 331
#012
PIPE, Right SLIDE (SHOWA)
$365.06¢182 531
#013
ROD (SHOWA)
$45.14¢22 569
#014
DAMPER, Front. (SHOWA)
$139.77¢69 887
#015
RING, OIL SEAL STOPPER (SHOWA)
$5.47¢2 738
#016
BOLT, FR. FORK
$81.79¢40 894
#017
NUT, HEX. (10MM)
$3.73¢1 863
#018
NUT, LOCK (SHOWA)
$4.65¢2 325
#019
RING, STOPPER
$2.88¢1 438
#020
SEAL SET, FR. FORK
$29.18¢14 588
#021
FORK ASSY., L. FR. (SHOWA)
$769.98¢384 988
#022
SPRING, L Front.
$37.75¢18 875
#023
COLLAR B, SPRING (SHOWA)
$26.23¢13 113
#024
PIPE, L. SLIDE (SHOWA)
$369.84¢184 919
#025
BOLT, SOCKET (8X22)
$2.60¢1 300
#026
BOLT (8X45)
$3.65¢1 825
#027
WASHER, SPECIAL (8MM) (SHOWA)
$3.65¢1 825
#028
DUST SEAL
$12.39¢6 194
#029
O-RING (39.7X2.4)
$2.73¢1 363
