SHROUD

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

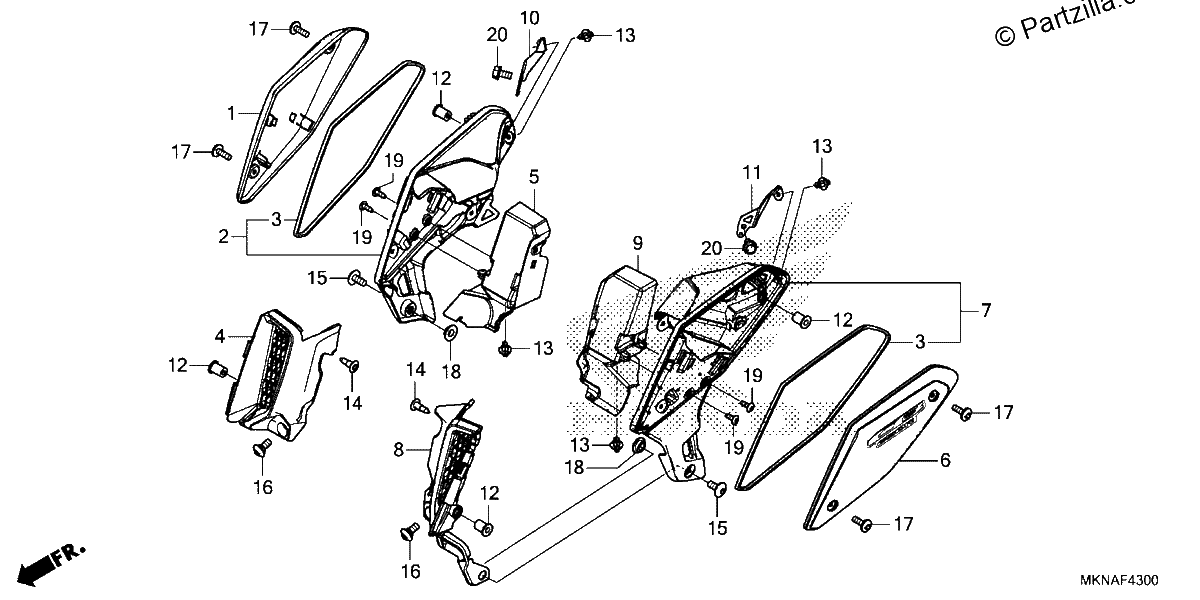

Diagrama de SHROUD

Repuestos

#001
64310-MKN-D50ZA
SHROUD SET A, Right. (TYPE1) (WL)
$56.31¢28 156
1
#002
64320-MKN-D50
SHROUD Assembly B, Right.
$29.69¢14 844
1
#003
64322-MKN-D50
SEAL, SHROUD
$2.92¢1 463
1
#004
64331-MKN-D50
SHROUD C, Right.
$9.86¢4 931
1
#005
64336-MKN-D50
BOX, Right AIR DUCT
$10.25¢5 125
1
#006
64410-MKN-D50ZA
SHROUD SET A, L. (TYPE1) (WL)
$48.22¢24 112
1
#007
64420-MKN-D50
SHROUD Assembly B, Left
$29.02¢14 513
1
#008
64431-MKN-D50
SHROUD C, Left
$10.00¢5 000
1
#009
64436-MKN-D50
BOX, L AIR DUCT
$10.38¢5 188
1
#010
64650-MKN-D50
STAY, Right SHROUD
$7.82¢3 912
1
#011
64660-MKN-D50
STAY, L. SHROUD
$6.71¢3 356
1
#012
90111-KW3-003
NUT, COWL SETTING (5MM)
$5.47¢2 738
1
#013
90116-K0A-E11
RIVET, PUSH (6MM)
$1.66¢831
1
#014
90116-SP0-003
CLIP, BUMPER SEAL
$5.72¢2 863
1
#015
90125-MKN-D50
SCREW, PAN (6X14)
$1.72¢862
1
#016
90133-KPP-T00
SCREW, PAN (6X14)
$1.64¢819
1
#017
90134-MJE-D00
SCREW, PAN (5X16)
$1.45¢725
1
#018
90503-MJE-D40
COLLAR, MOUNTING
$3.65¢1 825
1
#019
93903-24380
SCREW, TAPPING (4X12)
$1.16¢581
1
#020
95701-06012-07
BOLT, FLANGE (6X12)
$2.09¢1 044
1
