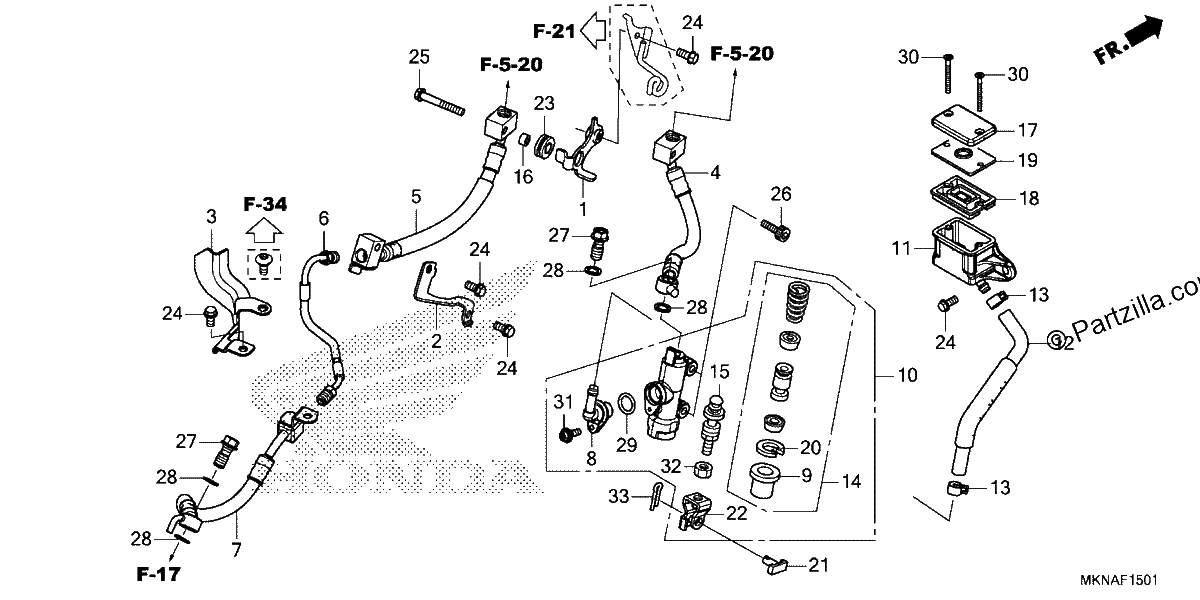

REAR BRAKE MASTER CYLINDER 2
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
STAY A, RR. BRAKE
$10.61¢5 306
#002
STAY B, Rear BRAKE
$6.99¢3 494
#003
STAY C, Rear BRAKE
$10.25¢5 125
#004
HOSE A, Rear BRAKE
$29.57¢14 788
#005
HOSE D, RR. BRAKE
$48.55¢24 275
#006
PIPE E, RR. BRAKE
$12.76¢6 381
#007
HOSE F, RR. BRAKE
$46.00¢23 000
#008
CONNECTOR
$16.30¢8 150
#009
BOOT
$11.74¢5 869
#010
MASTER CYLINDER SUB-ASSY., RR.BRAKE (NISSIN)
$135.49¢67 744
#011
CUP, OIL
$27.52¢13 763
#012
HOSE, RR. BRAKE MASTER CYLINDER
$19.65¢9 825
#013
CLAMP, MASTER CYLINDER OIL HOSE
$15.24¢7 619
#014
PISTON SET, MASTER CYLINDER (NISSIN)
$53.99¢26 994
#015
ROD, PUSH
$25.54¢12 769
#016
COLLAR, BRAKE HOSE STAY
$2.11¢1 056
#017
CAP, MASTER CYLINDER
$5.04¢2 519
#017
CAP, MASTER CYLINDER (COO)
$5.04¢2 519
#018
DIAPHRAGM
$12.31¢6 156
#019
PLATE, DIAPHRAGM
$12.60¢6 300
#020
CIRCLIP
$2.50¢1 250
#021
PIN, BRAKE ROD
$5.76¢2 881
#022
JOINT, BRAKE ROD
$17.25¢8 625
#023
GROMMET, MAIN PIPE COVER
$1.25¢625
#024
BOLT, FLANGE (6X14)
$2.99¢1 494
#025
BOLT, FLANGE (6X40)
$1.45¢725
#026
BOLT, SOCKET (6X20)
$2.09¢1 044
#027
BOLT, OIL (10X22)
$8.89¢4 444
#028
WASHER, OIL BOLT
$4.85¢2 425
#029
O-RING (14.8X2.4)
$3.30¢1 650
#030
SCREW, FLAT (4X40)
$0.61¢306
#031
SCREW-WASHER (4X12)
$1.72¢862
#031
SCREW-WASHER (4X12)
$1.72¢862
#032
NUT, HEX. (8MM)
$1.60¢800
#033
PIN, SPLIT (2.0X12)
$1.27¢638
