FRONT BRAKE MASTER CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

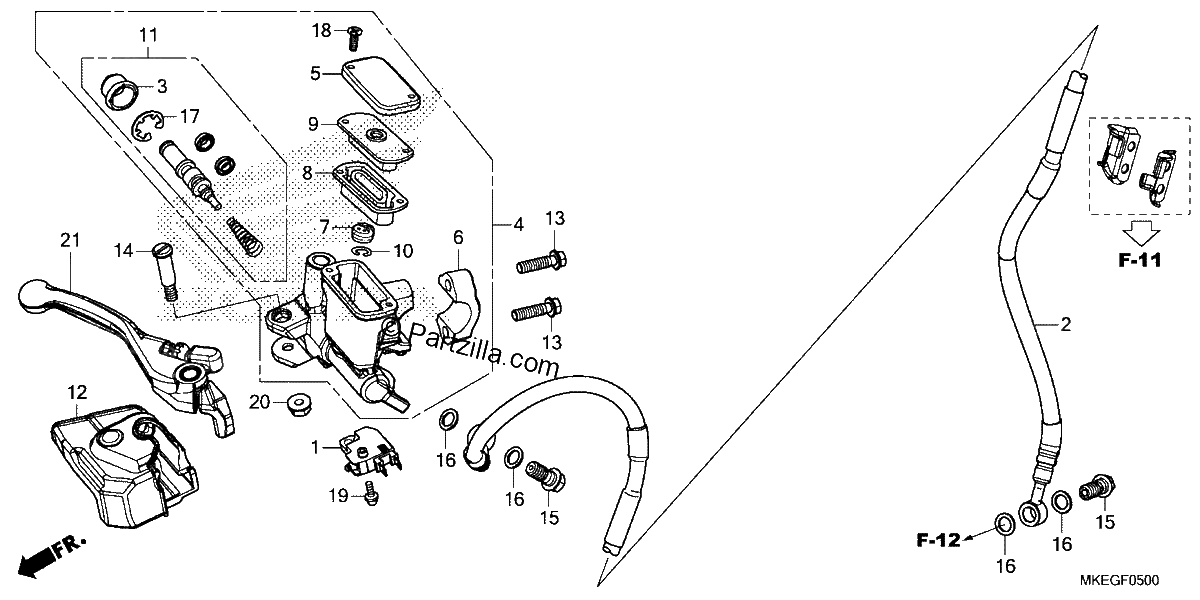

Diagrama de FRONT BRAKE MASTER CYLINDER

Repuestos

#001
35340-MGS-D31
SWITCH Assembly., Front STOP (ALPS)
$21.49¢10 744
1
#002
45125-MKE-A51
HOSE, Front BRAKE
$181.21¢90 606
1
#003
45504-410-003
BOOT
$14.24¢7 119
1
#004
45510-MKE-A51
MASTER CYLINDER SUB-Assembly., Front.
$293.91¢146 956
1
#005
45513-MKE-A51
CAP, MASTER CYLINDER
$33.26¢16 631
1
#006
45517-GW0-751
HOLDER, MASTER CYLINDER
$14.40¢7 200
1
#007
45518-KA3-731
SEPARATOR
$14.15¢7 075
1
#008
45520-GW0-911
DIAPHRAGM
$8.84¢4 419
1
#009
45521-GW0-911
PLATE, DIAPHRAGM
$6.95¢3 475
1
#010
45523-KA3-731
RING
$3.65¢1 825
1
#011
45530-MKE-A51
MASTER CYLINDER SET
$58.56¢29 281
1
#012
53176-MKE-A51
COVER, Right HANDLE LEVER
$19.01¢9 506
1
#013
90020-GHB-670
BOLT, FLANGE (6X22)
$2.99¢1 494
1
#014
90114-MA5-671
BOLT, HANDLE LEVER PIVOT
$11.03¢5 513
1
#015
90145-MS9-612
BOLT, OIL (10X22)
$8.89¢4 444
1
#016
90545-300-000
WASHER, OIL BOLT
$4.85¢2 425
1
#017
90651-K03-M61
CIRCLIP, INNER (18.8MM)
$0.88¢438
1
#018
93600-04012-0G
SCREW, FLAT (4X12)
$1.16¢581
1
#018
93600-04012-1G
SCREW, FLAT (4X12)
$1.16¢581
1
#019
93893-04012-17
SCREW-WASHER (4X12)
$1.72¢862
1
#019
93893-04012-07
SCREW-WASHER (4X12)
$1.72¢862
1
#020
94050-06000
NUT, FLANGE (6MM)
$0.80¢400
1
#021
53170-MKE-A51
LEVER Assembly., Right HANDLE
$51.68¢25 838
1
