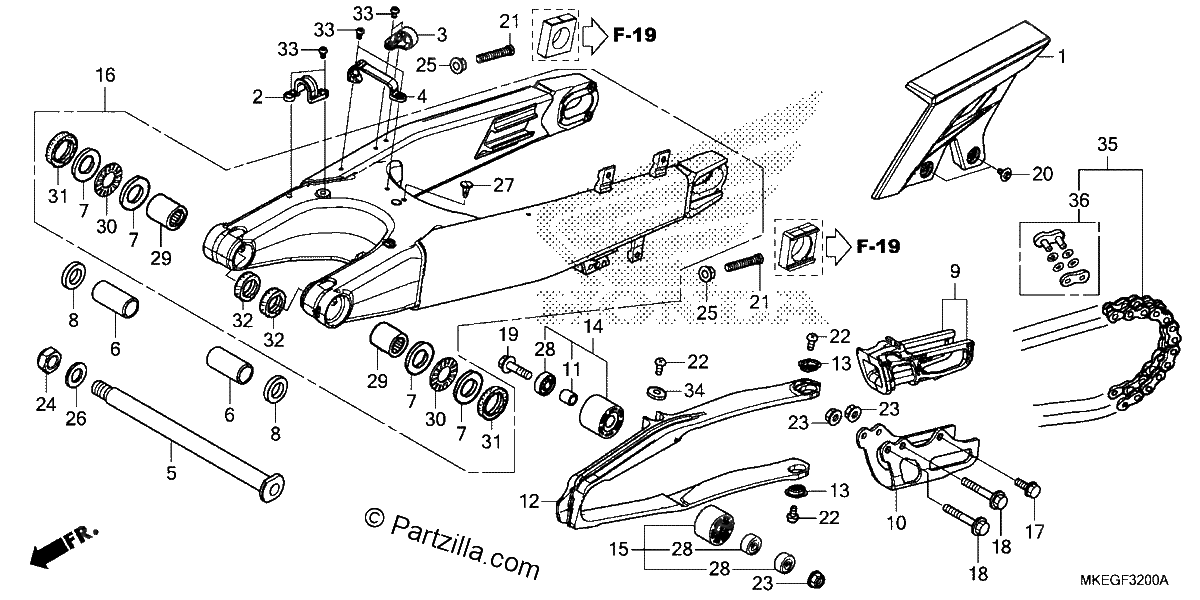

SWINGARM
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
CASE, DRIVE CHAIN
$93.94¢46 969
#002
GUIDE, BRAKE HOSE
$11.19¢5 594
#003
GUIDE A, BRAKE HOSE
$5.34¢2 669
#004
GUIDE B, BRAKE HOSE
$6.99¢3 494
#005
SHAFT, SWINGARM PIVOT
$29.70¢14 850
#006
COLLAR, SWINGARM (45MM)
$29.24¢14 619
#007
WASHER, SWINGARM SIDE THRUST
$2.48¢1 238
#008
COLLAR, SWINGARM PIVOT SIDE
$12.60¢6 300
#009
GUIDE SET, CHAIN
$37.08¢18 538
#010
PLATE, CHAIN GUIDE
$55.03¢27 513
#011
COLLAR, CHAIN TENSIONER
$3.50¢1 750
#012
SLIDER, CHAIN
No Disponible
#012
SLIDER, CHAIN
$106.14¢53 069
#013
WASHER, CHAIN SLIDER
$3.33¢1 663
#014
ROLLER, CHAIN (34MM)
$69.80¢34 900
#015
ROLLER, CHAIN (LOWER) (34MM)
$69.80¢34 900
#016
SWINGARM SUB-Assembly., Rear. NH900L (DEEP BLACK)
$1326.80¢663 400
#017
BOLT, FLANGE (6X12)
$2.76¢1 381
#018
BOLT, FLANGE (6X45)
$3.49¢1 744
#019
BOLT, FLANGE (8X32)
$4.24¢2 119
#020
BOLT, SPECIAL (6MM)
$3.65¢1 825
#021
BOLT, HEX. (8X47.5)
$3.65¢1 825
#022
SCREW, PAN (5X8)
$3.36¢1 681
#023
NUT, U (6MM) (FUSE RASHI)
$4.94¢2 469
#024
NUT, U HEX. (14MM)
$7.05¢3 525
#025
NUT, HEX. (8MM)
$4.13¢2 063
#026
WASHER (14MM)
$8.05¢4 025
#026
WASHER (26X14X2.8)
$8.05¢4 025
#027
CLIP, TRIM (5MM) *NH900L*(DEEP BLACK)
$8.28¢4 138
#028
BEARING, RADIAL BALL (608UU)
$17.07¢8 538
#029
BEARING, NEEDLE (22X29X30) (NTN)
$50.32¢25 162
#029
BEARING, NEEDLE (THOMPSON)
$42.77¢21 388
#030
BEARING, NEEDLE THRUST
$15.63¢7 813
#031
DUST SEAL (30X37X3)
$7.99¢3 994
#032
DUST SEAL (22X29X3)
$6.42¢3 213
#033
SCREW, PAN (5X8)
$1.16¢581
#034
WASHER, PLAIN (5MM)
$1.21¢606
#035
CHAIN, DRIVE (RK520EXU-120-LJFZ) (RK) (STANDARD LINK 114L)
$259.96¢129 981
#036
MASTER LINK (RK)(SEAL TYPE)
$8.84¢4 419
