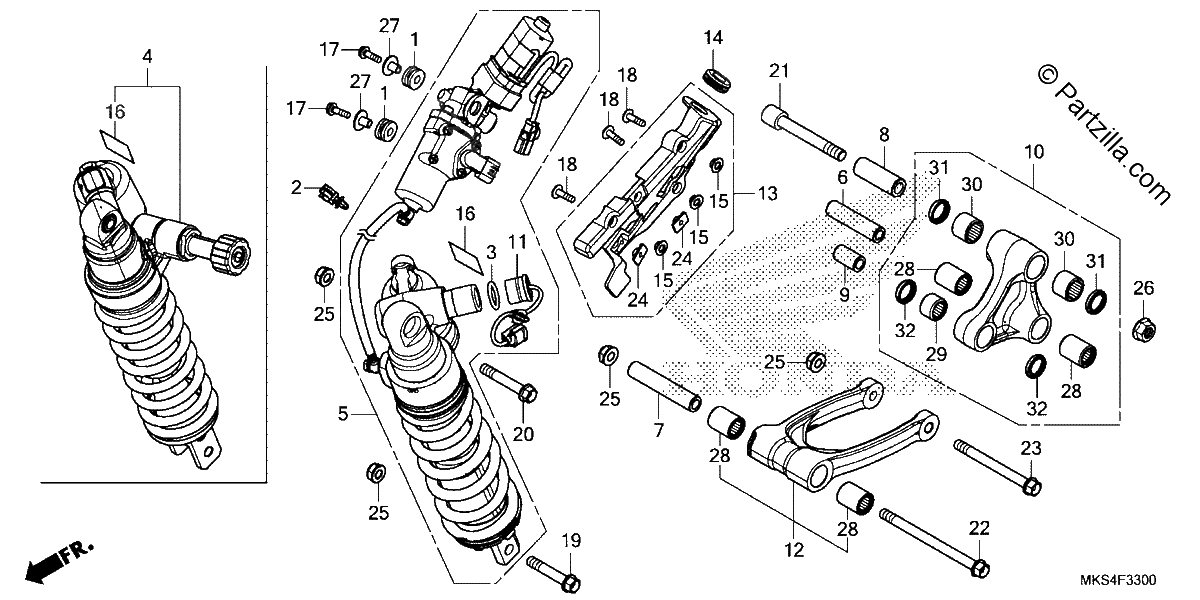

REAR SHOCK ABSORBER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
CUSHION, FR. FUEL TANK
$4.09¢2 047
#002
CLIP, THROTTLE WIRE
$8.44¢4 220
#003
O-RING (23.3X1.9)
$3.13¢1 564
#005
CUSHION ASSY., RR.
$3783.09¢1 891 543
#006
COLLAR B, CUSHION ARM
$13.25¢6 624
#007
COLLAR B, CUSHION ARM
$13.86¢6 929
#008
COLLAR C, CUSHION ARM
$13.72¢6 860
#009
COLLAR D, CUSHION ARM
$8.71¢4 353
#010
ARM SUB-ASSY., CUSHION
$408.31¢204 154
#011
SOLENOID SUB
$1057.06¢528 528
#012
ROD SUB-Assembly., CUSHION CONNECTING
$247.46¢123 729
#013
BRACKET ASSY., RR. SHOCK ABSORBER ADJUSTER
$44.98¢22 488
#014
GROMMET, MOTOR MOUNTING
$6.11¢3 053
#015
COLLAR, FENDER
$4.62¢2 311
#016
LABEL, RR. DAMPER
$5.11¢2 553
#017
BOLT, FLANGE (6X20)
$2.59¢1 294
#018
BOLT, SPECIAL (6X22)
$3.82¢1 909
#019
BOLT, FLANGE (10X57)
$6.34¢3 168
#020
BOLT, FLANGE (10X62)
$6.34¢3 168
#021
BOLT, SOCKET (12X91)
$17.02¢8 510
#022
BOLT, FLANGE (10X139)
$10.33¢5 164
#023
BOLT, FLANGE (10X106)
$7.99¢3 996
#024
NUT, SPECIAL (6X7)
$4.28¢2 139
#025
NUT U, FLANGE (10MM)
$3.81¢1 903
#026
NUT, U FLANGE (12MM)
$3.92¢1 961
#027
COLLAR (6.2X11)
$7.54¢3 772
#028
BEARING, NEEDLE (17X24X30)
$10.52¢5 261
#029
BEARING, NEEDLE (17X24X17) (SCHAEFFLER)
$15.66¢7 831
#030
BEARING, NEEDLE (20X26X20)
$3.10¢1 553
#031
DUST SEAL (20X26X4.5) (ARAI)
$9.90¢4 951
#032
DUST SEAL (17X24X5) (ARAI)
$6.91¢3 456
