TAILLIGHT LICENSE LIGHT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

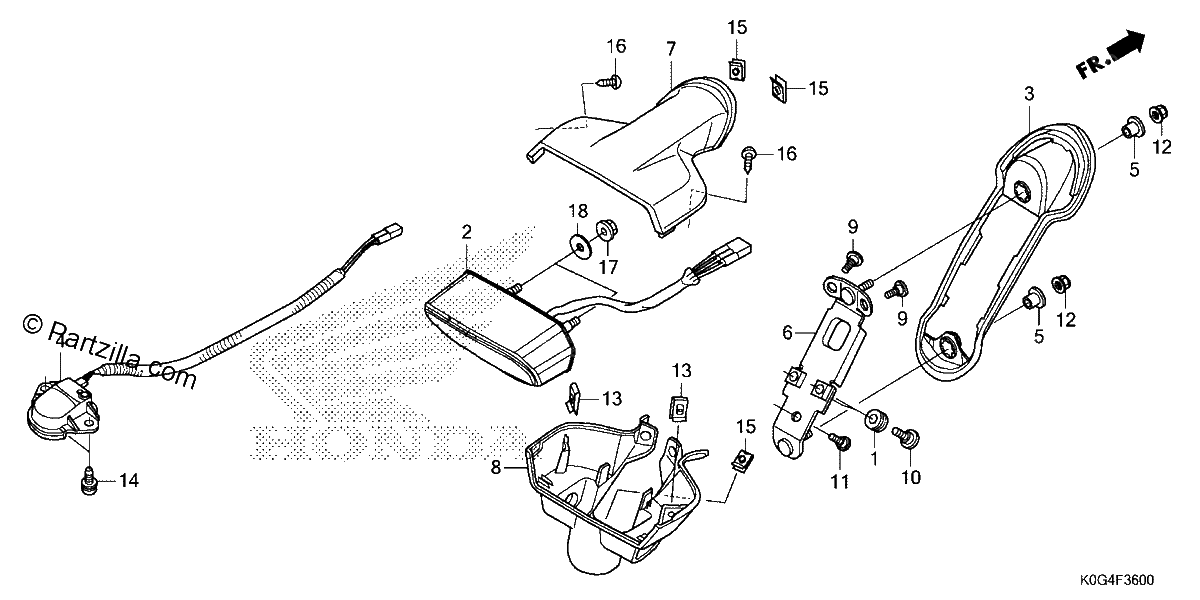

Diagrama de TAILLIGHT LICENSE LIGHT

Repuestos

#001
18345-MBT-610
RUBBER, PROTECTOR MOUNTING
$2.81¢1 406
1
#002
33701-K0G-961
TAILLIGHT UNIT
$209.35¢104 675
1
#003
33705-K0G-900
RUBBER, TAILLIGHT MOUNTING
$11.64¢5 819
1
#004
33720-K0G-901
LIGHT ASSY., LICENSE
$227.07¢113 538
1
#005
33731-K0G-900
COLLAR, TAILLIGHT MOUNTING
$2.97¢1 487
1
#006
50316-K0G-960
STAY, TAILLIGHT
$230.74¢115 369
1
#007
80130-K0G-960
COVER, TAILLIGHT (UPPER)
$179.63¢89 813
1
#008
80140-K0G-960
COVER, TAILLIGHT (LOWER)
$166.45¢83 225
1
#009
90103-KPH-970
SCREW, SPECIAL (5MM)
$1.72¢862
1
#010
90113-GFP-B00
SCREW, PAN (6X12)
$4.34¢2 169
1
#011
90115-KW7-900
SCREW, VISOR SPECIAL SETTING
$2.68¢1 338
1
#012
90301-KWN-901
NUT, U (5MM)
$0.86¢431
1
#013
90302-KWW-A00
NUT, SPRING (4MM)
$1.25¢625
1
#014
90508-K0F-T00
SCREW-WASHER (4X14)
$1.82¢913
1
#015
90677-KAN-T00
NUT, CLIP (5MM)
$0.83¢413
1
#016
93903-24320
SCREW, TAPPING (4X12)
$1.16¢581
1
#017
94050-06000
NUT, FLANGE (6MM)
$0.80¢400
1
#018
94103-06000
WASHER, PLAIN (6MM)
$1.27¢638
1
