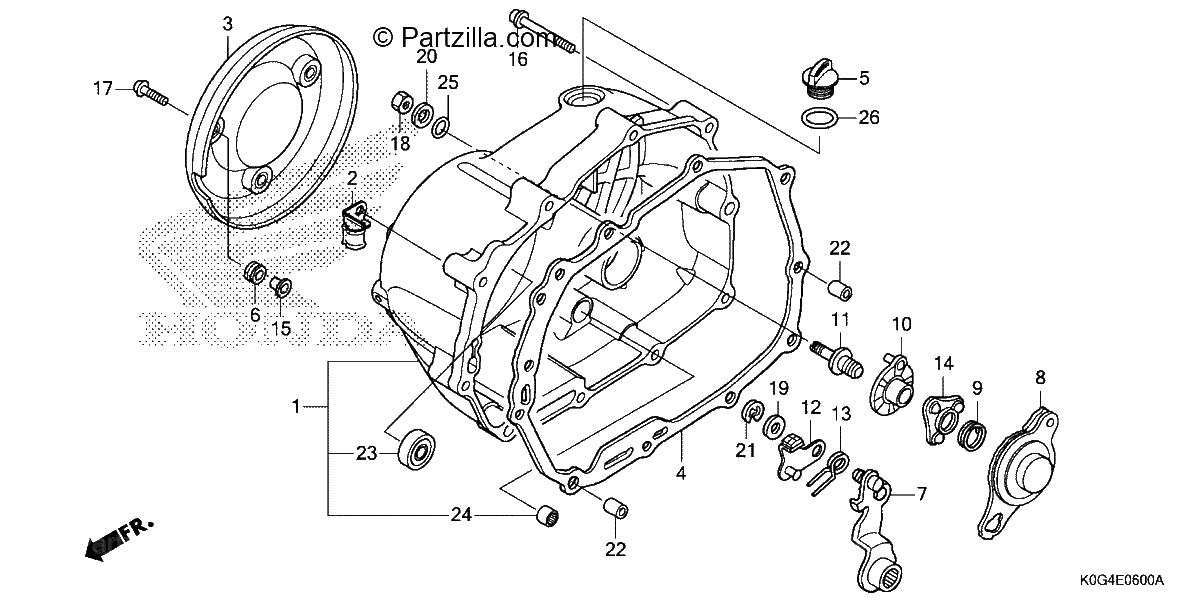

RIGHT CRANKCASE COVER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
COVER, R. CRANKCASE
$115.83¢57 914
#002
CLAMP A, OIL TEMP SENSOR CORD
$1.62¢811
#003
PROTECTOR, Right COVER
$47.81¢23 903
#004
GASKET, R. CRANKCASE COVER
$8.26¢4 129
#005
CAP, OIL FILLER
$4.20¢2 099
#006
RUBBER, MOUNTING
$1.66¢828
#007
LEVER, CLUTCH
$43.06¢21 528
#008
PLATE, CLUTCH CAM
$31.97¢15 985
#009
SPRING, CAM PLATE SIDE
$2.59¢1 294
#010
PLATE, CLUTCH LIFTER
$18.89¢9 447
#011
BOLT, CLUTCH ADJUSTING
$2.90¢1 449
#012
PLATE, BRAKE
$12.26¢6 129
#013
SPRING, BRAKE
$1.59¢793
#014
RETAINER, BALL
$8.72¢4 358
#015
COLLAR, TAILLIGHT SETTING
$3.47¢1 737
#016
BOLT, FLANGE SOCKET (6X40)
$1.26¢633
#017
SCREW, PAN (6X18)
$1.09¢546
#018
NUT, SPECIAL (8MM)
$7.19¢3 594
#019
WASHER, THRUST (8MM)
$0.80¢402
#020
WASHER (8MM)
$2.09¢1 047
#021
CIRCLIP (7MM)
$2.13¢1 064
#022
PIN, DOWEL (8X12)
$0.79¢397
#023
BEARING, RADIAL BALL SPECIAL (6001U)
$31.31¢15 657
#024
BEARING, NEEDLE (1010) (NTN)
$24.95¢12 478
#025
O-RING (8MM)
$2.86¢1 432
#026
O-RING (18X3)
$0.98¢489
