ONE WAY CLUTCH

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

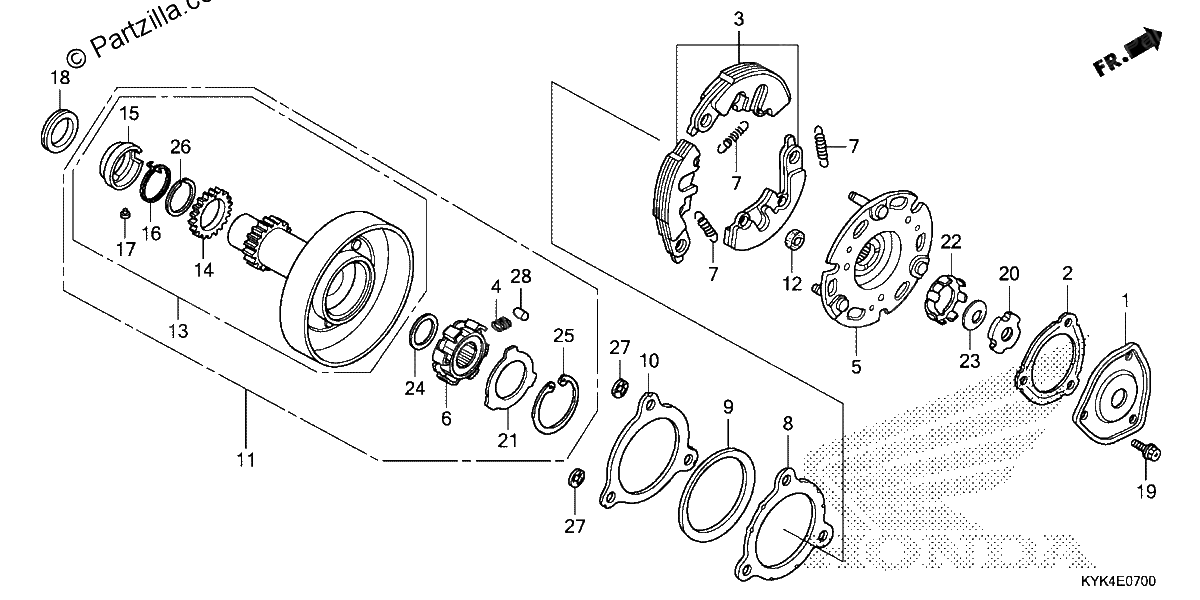

Diagrama de ONE WAY CLUTCH

Repuestos

#001
15431-KVR-C00
COVER, OIL FILTER
$20.39¢10 194
1
#002
15439-KPH-901
GASKET, OIL FILTER
$3.01¢1 506
1
#002
15439-KYK-D10
GASKET, OIL FILTER
$3.01¢1 506
1
#003
22535-KWW-P00
WEIGHT SET, PRIMARY CLUTCH (F.C.C.)
$94.20¢47 100
1
#004
22606-KVR-C00
SPRING, ONE-WAY RETAINER
$3.33¢1 663
1
#005
22610-KWW-741
PLATE, PRIMARY DRIVE (F.C.C.)
$17.21¢8 606
1
#006
22630-KWW-C00
INNER, ONE-WAY CLUTCH
$45.39¢22 694
1
#007
22641-KPH-900
SPRING, PRIMARY CLUTCH
$1.50¢750
1
#008
22642-KWW-741
WASHER, CLUTCH SIDE (F.C.C.)
$2.19¢1 094
1
#009
22643-KWW-741
SPRING, SIDE FRICTION (F.C.C.)
$3.24¢1 619
1
#010
22644-KWW-741
PLATE, CLUTCH SIDE (F.C.C.)
$3.15¢1 575
1
#011
22660-KWW-C00
CLUTCH OUTER ASSY., PRIMARY
$250.29¢125 144
1
#012
22804-GB2-000
RUBBER, CLUTCH DAMPER
$4.56¢2 281
1
#013
23120-KWW-C00
GEAR, PRIMARY CLUTCH
$145.64¢72 819
1
#014
23122-KWW-C00
SUB-GEAR (17T)
$25.38¢12 688
1
#015
23123-KWW-C00
RETAINER, SPRING
$18.89¢9 444
1
#016
23124-KWW-C00
SPRING, SUB-GEAR
$4.11¢2 056
1
#017
23125-KVR-C00
PIN, STOPPER
$3.66¢1 831
1
#018
23126-KWW-740
COLLAR (19.1X30X4)
$4.81¢2 406
1
#019
90083-KFL-850
BOLT, SPECIAL FLANGE (5X8)
$1.27¢638
1
#020
90231-KVR-C00
NUT, LOCK (14MM)
$3.65¢1 825
1
#021
90401-KVR-C00
WASHER (30X45X0.8)
$4.75¢2 375
1
#022
90431-KVR-C00
WASHER, LOCK
$3.63¢1 813
1
#023
90432-KVR-C00
WASHER B, LOCK
$6.79¢3 394
1
#024
90433-KWW-C00
WASHER (17X23X1.5)
$3.84¢1 919
1
#025
90455-KVR-C00
CIRCLIP (INNER) (45MM)
$6.19¢3 094
1
#026
90603-KWW-C00
SET-RING (23MM)
$2.27¢1 138
1
#027
90605-166-720
CIRCLIP (7MM)
$2.31¢1 156
1
#028
91106-KVR-C00
ROLLER (5X8)
$11.06¢5 531
1
