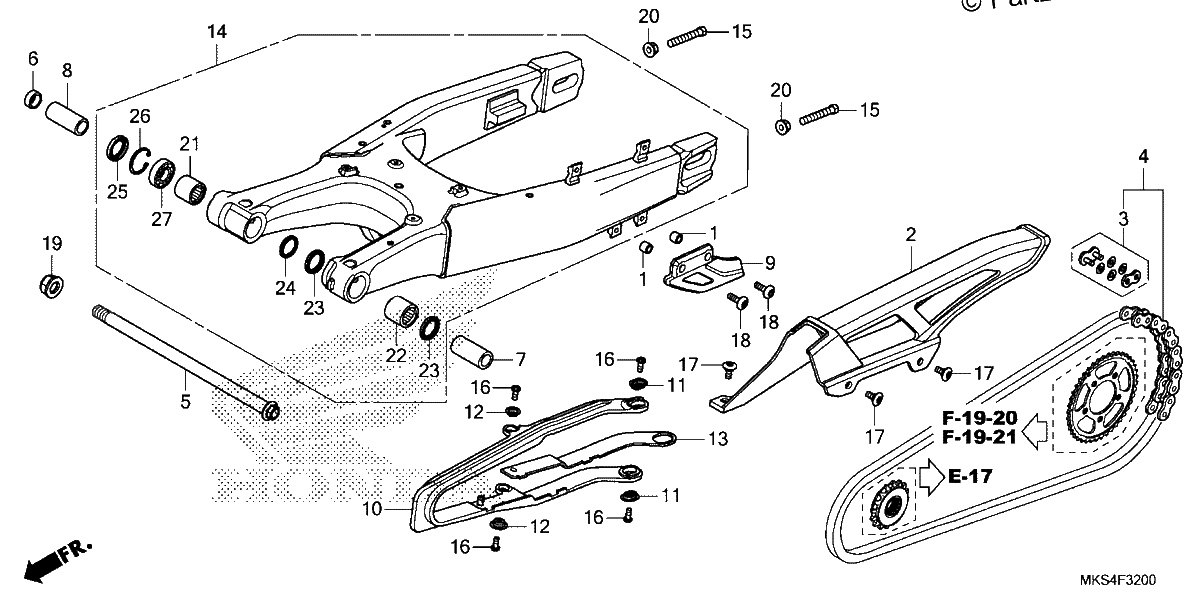

SWINGARM
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
COLLAR, DISTANCE
No Disponible
#002
CASE, DRIVE CHAIN
$117.07¢58 537
#003
MASTER LINK SET (DAIDO)
$17.13¢8 563
#004
CHAIN, DRIVE (DID525HV3-130ZB)(DAIDO) (STANDARD LINK 124L)
$253.92¢126 962
#005
BOLT, SWINGARM PIVOT
$69.69¢34 844
#006
COLLAR A, PIVOT
$6.67¢3 338
#007
COLLAR, L. PIVOT DISTANCE
$22.07¢11 038
#008
COLLAR, R. PIVOT DISTANCE
$21.48¢10 738
#009
GUARD, CHAIN
$25.31¢12 656
#010
SLIDER, CHAIN
$70.03¢35 013
#011
WASHER, CHAIN SLIDER
$3.33¢1 663
#012
WASHER, CHAIN SLIDER
$4.14¢2 069
#013
RUBBER, CHAIN SLIDER
$14.39¢7 194
#014
SWINGARM SUB-ASSY., RR. (TYPE1)
$1923.94¢961 969
#015
BOLT, HEX. (8X50)
$3.11¢1 556
#016
SCREW, PAN (5X12)
$2.41¢1 206
#017
SCREW, SPECIAL (6X14)
$3.49¢1 744
#018
BOLT, SPECIAL (6X20)
$3.30¢1 650
#019
NUT, SPECIAL U (16MM)
$10.84¢5 419
#019
NUT, U (16MM)
$10.84¢5 419
#020
NUT, HEX. (8MM)
$4.13¢2 063
#021
BEARING, NEEDLE (24X31X28)
$19.81¢9 906
#022
BEARING, NEEDLE (NTN)
$31.19¢15 594
#023
DUST SEAL (25X33X4)
$8.44¢4 219
#024
OIL SEAL (24X31X3.5)
$12.21¢6 106
#025
DUST SEAL (23X35X5)
$10.58¢5 288
#026
CIRCLIP, INNER (35MM)
$2.50¢1 250
#027
BEARING, RADIAL BALL (6003)
$16.44¢8 219
