CARBURETOR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

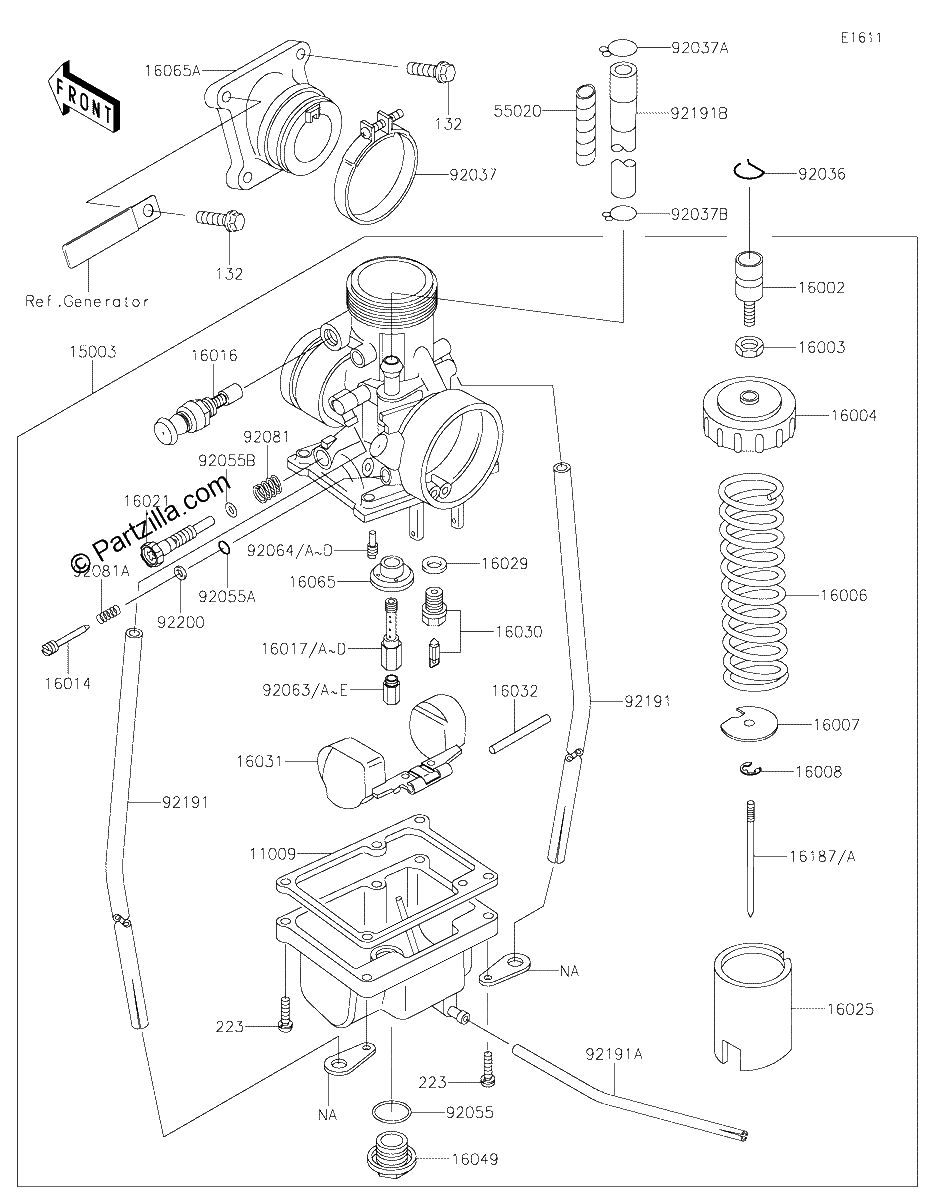

Diagrama de CARBURETOR

Repuestos

#132
132BC0620
BOLT-FLANGED-SMALL,6X20
$1.08¢541
1
#223
223AA0416
SCREW PAN WS CROS,4X16
$0.75¢374
1
#11009
11009-1147
GASKET,FLOAT CHAMBER
$10.60¢5 302
1
#15003
15003-1669
CARBURETOR Assembly
$220.87¢110 434
1
#16002
16002-011
ADJUSTER-CABLE
$12.72¢6 360
1
#16003
16003-006
NUT,ADJUST LOCK
$6.72¢3 358
1
#16004
16004-025
CAP CHAMBER
$37.26¢18 630
1
#16006
16006-023
SPRING,THROTTLE VALVE
$15.32¢7 659
1
#16007
16007-023
SEAT-SPRING,THROTTLE VALVE
$10.60¢5 302
1
#16008
16008-1010
CLAMP
$2.83¢1 414
1
#16014
16014-1116
SCREW PILOT AIR
$15.55¢7 774
1
#16016
16016-0008
PLUNGER,STARTER
$48.02¢24 012
1
#16017
16017-1418
JET-NEEDLE,N-6
$48.76¢24 380
1
#16017
16017-1412
JET NEEDLE,N 8
$48.76¢24 380
1
#16017
16017-1413
JET-NEEDLE,O-0
$48.76¢24 380
1
#16017
16017-1414
JET-NEEDLE,O-2
$48.76¢24 380
1
#16017
16017-1415
JET-NEEDLE,O-4
$48.76¢24 380
1
#16017A
16017-1413
JET-NEEDLE,O-0
$48.76¢24 380
1
#16017B
16017-1414
JET-NEEDLE,O-2
$48.76¢24 380
1
#16017C
16017-1415
JET-NEEDLE,O-4
$48.76¢24 380
1
#16017D
16017-1418
JET-NEEDLE,N-6
$48.76¢24 380
1
#16021
16021-1224
SCREW-THROTTLE STOP
$16.41¢8 205
1
#16025
16025-1040
VALVE-THROTTLE,CA1.5
$53.37¢26 686
1
#16029
16029-004
GASKET,FLOAT VALVE SEAT
$3.56¢1 783
1
#16030
16030-1095
VALVE FLOAT,#2.5
$55.20¢27 600
1
#16031
16031-1005
FLOAT
$59.08¢29 538
1
#16032
16032-003
PIN,FLOAT
$6.15¢3 076
1
#16049
16049-1001
COVER-MAIN JET
$27.25¢13 627
1
#16065
16065-1020
HOLDER,JET NEEDLE
$18.68¢9 338
1
#16065A
16065-1366
HOLDER CARBURETOR
$68.77¢34 385
1
#16187
16187-1226
NEEDLE-JET,5GSP68
$40.10¢20 050
1
#16187
16187-1227
NEEDLE-JET,5GSP69
$40.10¢20 050
1
#16187A
16187-1227
NEEDLE-JET,5GSP69
$40.10¢20 050
1
#55020
55020-1787
GUARD,FUEL TUBE
$4.73¢2 363
1
#92036
92036-018
RING-SNAP
$3.56¢1 783
1
#92037
92037-1305
CLAMP
$8.26¢4 129
1
#92037A
92037-147
CLAMP,TUBE | [CA]
$6.72¢3 358
1
#92037B
92037-1712
CLAMP
$4.57¢2 283
1
#92055B
92055-2068
RING-O
$1.75¢874
1
#92055
92055-1061
RING-O,MAIN JET COVER
$9.02¢4 508
1
#92055A
92055-1658
RING O,AIR SCREW
$5.43¢2 714
1
#92063E
92063-025
JET MAIN,#230
$16.38¢8 188
1
#92063D
92063-023
JET MAIN,#210
$14.42¢7 210
1
#92063C
92063-022
JET MAIN,#200
$14.42¢7 210
1
#92063A
92063-020
JET MAIN,#180
$14.42¢7 210
1
#92063B
92063-021
JET MAIN,#190
$14.42¢7 210
1
#92063
92063-020
JET MAIN,#180
$14.42¢7 210
1
#92063
92063-021
JET MAIN,#190
$14.42¢7 210
1
#92063
92063-022
JET MAIN,#200
$14.42¢7 210
1
#92063
92063-023
JET MAIN,#210
$14.42¢7 210
1
#92063
92063-025
JET MAIN,#230
$16.38¢8 188
1
#92063
92063-019
JET-MAIN,#170
$14.42¢7 210
1
#92064C
92064-040
JET PILOT,#22.5
$17.19¢8 596
1
#92064B
92064-032
JET PILOT,#25
$19.48¢9 741
1
#92064A
92064-022
JET PILOT,#30
$17.19¢8 596
1
#92064D
92064-1033
JET PILOT,#27.5
$17.19¢8 596
1
#92064
92064-1033
JET PILOT,#27.5
$17.19¢8 596
1
#92064
92064-022
JET PILOT,#30
$17.19¢8 596
1
#92064
92064-040
JET PILOT,#22.5
$17.19¢8 596
1
#92064
92064-032
JET PILOT,#25
$19.48¢9 741
1
#92064
92064-021
JET-PILOT,#A20
$17.18¢8 590
1
#92081A
92081-1153
SPRING,STOP SCREW
$4.73¢2 363
1
#92081
92081-1152
SPRING,THROTTLE ADJUST
$5.78¢2 892
1
#92191B
92191-1611
TUBE
$2.55¢1 277
1
#92191A
92191-1496
TUBE,3X5X220
$5.91¢2 956
1
#92191
92191-1495
TUBE,3X5X280
$7.77¢3 887
1
#92200
92200-1564
WASHER,PILOT AIR SCREW
$2.18¢1 092
1
