FUEL TANK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

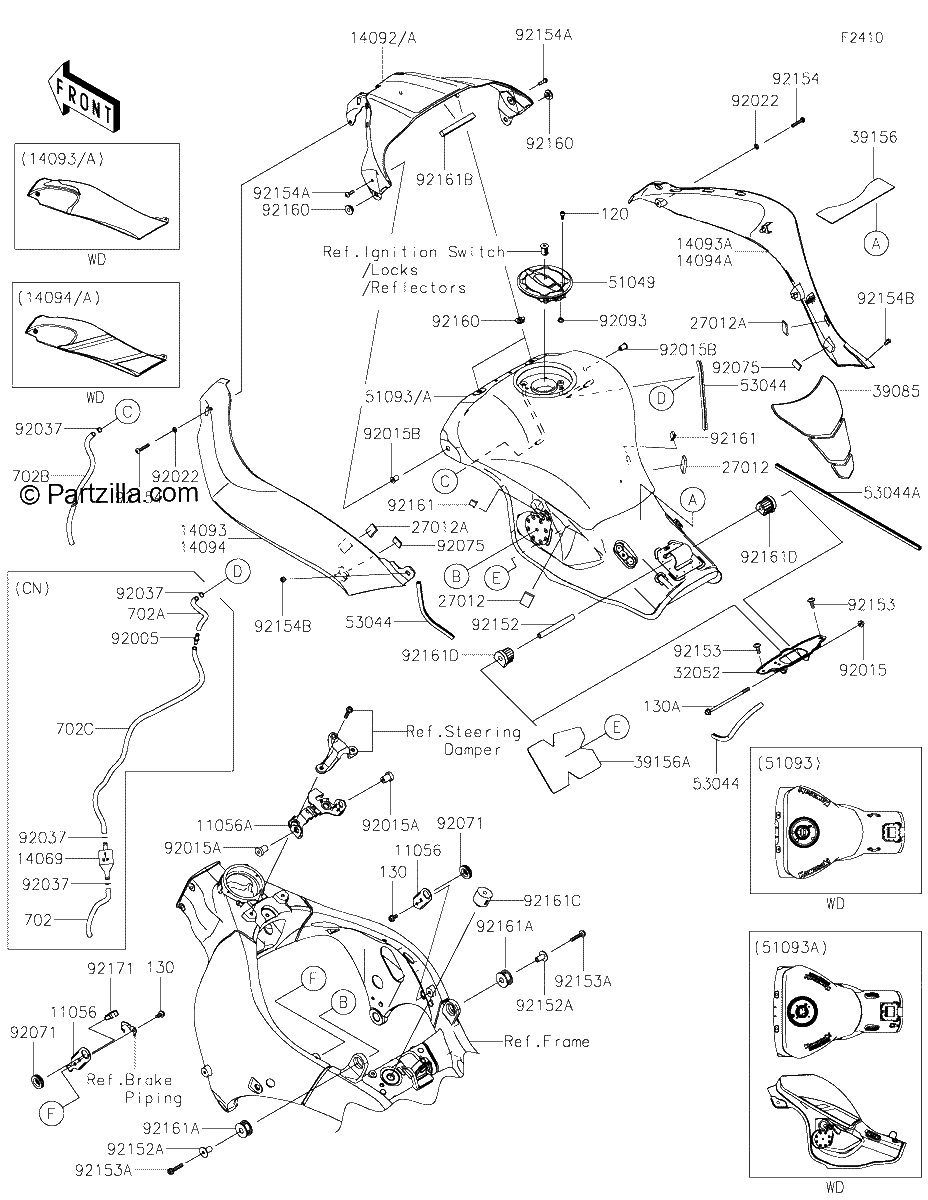

Diagrama de FUEL TANK

Repuestos

#120
120CA0512
BOLT SOCKET,5X12
$1.55¢775
1
#130
130BA0612
BOLT-FLANGED,6X12 | [CA]
$1.64¢819
1
#130A
130BA0675
BOLT FLANGED,6X75
$1.69¢844
1
#702C
702A06700
TUBE RUBBER,6X9X700
$18.91¢9 456
1
#702B
702A06660
TUBE RUBBER,6X9X660
$5.41¢2 706
1
#702A
702A06145
TUBE RUBBER,6X9X145
$2.19¢1 094
1
#702
702A06120
TUBE RUBBER,6X9X120
$1.38¢688
1
#11056
11056-0242
BRACKET,TANK COVER,SIDE
$9.15¢4 575
1
#11056A
11056-7782
BRACKET,TANK COVER,FR
$10.38¢5 188
1
#14069
14069-0008
BREATHER,TANK
$6.71¢3 356
1
#14092
14092-0786-739
COVER,TANK,CNT,M.F.S.BLACK
$212.34¢106 169
1
#14092
14092-0786-777
COVER,TANK,CNT,L GREEN
$212.34¢106 169
1
#14093
14093-5488-739
COVER,TANK,Left Hand,M F S BLACK
$265.36¢132 681
1
#14093A
14093-5489-739
COVER,TANK,Right Hand,M F S BLACK
$265.36¢132 681
1
#14094
14094-5027-H8
COVER,TANK,Left Hand,EBONY
$382.09¢191 044
1
#14094A
14094-5028-H8
COVER,TANK,Right Hand,EBONY
$382.09¢191 044
1
#27012
27012-0170
HOOK
$5.67¢2 838
1
#27012A
27012-0171
HOOK
$5.80¢2 900
1
#32052
32052-0154
BRACKET-TANK
$44.19¢22 094
1
#39085
39085-0011
PAD TANK
$136.65¢68 325
1
#39156
39156-0745
PAD,40X180X1.0
$20.95¢10 475
1
#39156A
39156-2403
PAD,106X141X2
$14.33¢7 163
1
#51049
51049-0756
CAP-TANK,FUEL
$173.96¢86 981
1
#51093
51093-5177-739
TANK COMP FUEL,M F S BLACK
$1265.69¢632 844
1
#51093
51093-5476-777
TANK COMP FUEL,L GREEN
$1558.05¢779 025
1
#53044
53044-1276
TRIM,L=157
$10.10¢5 050
1
#53044A
53044-1310
TRIM,L=400
No Disponible
1
#92005
92005-0721
FITTING | [CA]
$10.36¢5 181
1
#92015A
92015-1692
NUT,RUBBER,6MM
$7.30¢3 650
1
#92015B
92015-1757
NUT,WELL,5MM
$7.26¢3 631
1
#92015
92015-1367
NUT,FLANGED,6MM
$3.29¢1 644
1
#92022
92022-183
WASHER,6.2X11X1.5
$3.90¢1 950
1
#92037
92037-010
CLAMP,TUBE | [CA]
$3.90¢1 950
1
#92071
92071-1043
GROMMET
$5.10¢2 550
1
#92075
92075-1982
DAMPER,IGNITION
$4.59¢2 294
1
#92093
92093-1030
SEAL,FUEL TANK CAP
$7.72¢3 863
1
#92152A
92152-2200
COLLAR,6.8X10X20.1
$6.38¢3 188
1
#92152
92152-1182
COLLAR,6.8X10X60
$4.80¢2 400
1
#92153A
92153-1580
BOLT,FLANGED,6X28
$2.04¢1 019
1
#92153
92153-1526
BOLT,SOCKET,6X16
$1.72¢862
1
#92154A
92154-0209
BOLT,SOCKET,5X16
$2.54¢1 269
1
#92154B
92154-0211
BOLT,SOCKET,5X10
$2.00¢1 000
1
#92154
92154-0206
BOLT,SOCKET,6X30
$2.54¢1 269
1
#92160
92160-1613
DAMPER
$3.70¢1 850
1
#92161
92161-0365
DAMPER
$5.26¢2 631
1
#92161A
92161-0869
DAMPER,10X30X16
$4.38¢2 188
1
#92161B
92161-0963
DAMPER,10X90X10
$1.95¢975
1
#92161C
92161-1116
DAMPER
$10.46¢5 231
1
#92161D
92161-1330
DAMPER,FUEL TANK,RR
$5.75¢2 875
1
#92171
92171-0782
CLAMP
$3.89¢1 944
1
