FRONT FORK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

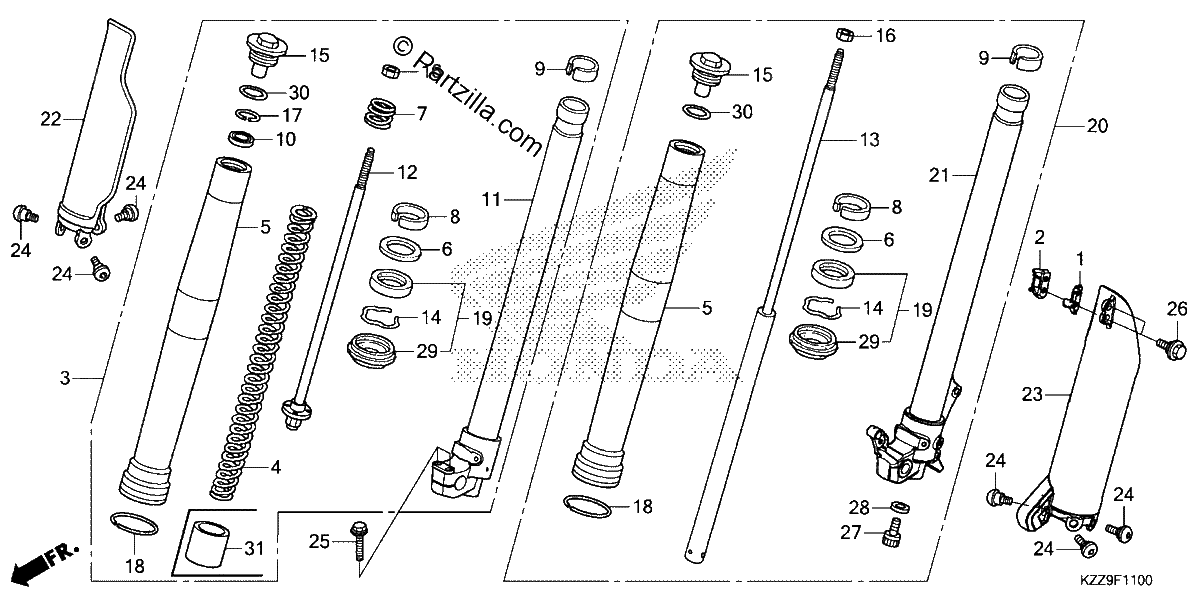

Diagrama de FRONT FORK

Repuestos

#001
45461-KZZ-J00
CLAMP A, BRAKE HOSE
$1.59¢793
1
#002
45462-KZZ-J00
CLAMP B, BRAKE HOSE
$2.22¢1 110
1
#003
51400-KZZ-N01
FORK Assembly., Right Front. (SHOWA)
$847.64¢423 821
1
#004
51401-KZZ-D21
SPRING, FR. FORK
$99.19¢49 594
1
#005
51410-KZZ-N01
TUBE (OUTER)
$459.00¢229 500
1
#006
51412-KA4-711
RING, BACK-UP
$10.38¢5 192
1
#007
51412-KZZ-901
SPRING, REBOUND
$15.78¢7 889
1
#008
51414-MFN-D01
BUSH, GUIDE
$7.89¢3 944
1
#009
51415-MGP-D01
BUSH, SLIDER
$15.85¢7 923
1
#010
51419-KZZ-901
SEAT, STOPPER
$7.60¢3 801
1
#011
51425-KZZ-D21
PIPE, R. SLIDE
$280.51¢140 254
1
#012
51426-KZZ-901
ROD
$159.15¢79 574
1
#013
51430-KZZ-D21
DAMPER, FR.
$141.63¢70 817
1
#014
51447-KA4-711
RING, OIL SEAL STOPPER (SHOWA)
$5.04¢2 519
1
#015
51450-KZZ-901
BOLT, FR. FORK
$59.59¢29 797
1
#016
51451-MAJ-G41
NUT, HEX. (10MM)
$3.43¢1 713
1
#017
51456-KZZ-901
RING, STOPPER
$12.44¢6 222
1
#018
51476-MFB-003
RING, WEAR
$7.34¢3 669
1
#019
51490-KZZ-J01
SEAL SET, FR. FORK
$27.37¢13 685
1
#020
51500-KZZ-N01
FORK ASSY., L. FR. (SHOWA)
$830.75¢415 374
1
#021
51426-KZZ-D21
PIPE, L. SLIDE
$294.53¢147 263
1
#022
51610-KZZ-D20ZC
PROTECTOR, R. FR. FORK (TYPE3)
$36.10¢18 049
1
#023
51620-KZZ-D20ZC
PROTECTOR, L. FR. FORK (TYPE3)
$41.02¢20 510
1
#024
90106-KZZ-900
BOLT, PROTECTOR (6MM)
$0.89¢443
1
#025
90107-MGE-000
BOLT, FLANGE (8X40)
$3.15¢1 576
1
#026
90113-KZZ-900
BOLT, FLANGE (6MM)
$0.64¢322
1
#027
90116-KV3-701
BOLT, SOCKET (8MM) (SHOWA)
$4.34¢2 168
1
#028
90544-283-000
WASHER, SPECIAL (8MM) (SHOWA)
$3.36¢1 679
1
#029
91254-ML3-791
DUST SEAL
$16.21¢8 108
1
#030
91356-KZ3-003
O-RING (44.7X2.4)
$4.38¢2 191
1
