RADIATOR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

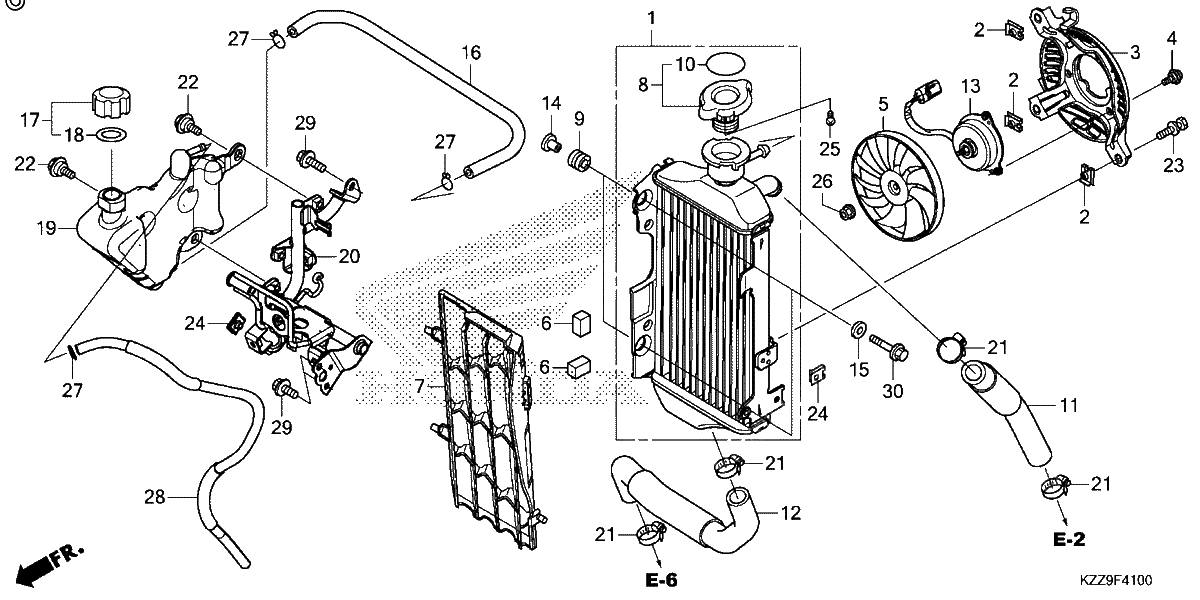

Diagrama de RADIATOR

Repuestos

#001
19010-KZZ-D11
RADIATOR
$134.23¢67 114
1
#002
19014-KEA-003
NUT, SETTING (6MM)
$3.45¢1 725
1
#003
19015-KZZ-902
SHROUD
$8.02¢4 008
1
#004
19016-KEA-003
SCREW, PAN (4X8.5)
$1.92¢960
1
#005
19020-KVZ-631
FAN, COOLING
$31.31¢15 657
1
#006
19022-KZZ-900
RUBBER, RADIATOR
$2.47¢1 236
1
#007
19034-KZZ-900
GRILLE, RADIATOR
$14.87¢7 435
1
#008
19037-KZZ-D11
CAP, RADIATOR (TOYO)
$31.22¢15 611
1
#009
19051-KRN-000
RUBBER, RADIATOR MOUNTING
$3.16¢1 581
1
#010
19046-PAA-A00
LABEL, RADIATOR CAP
$3.36¢1 679
1
#011
19062-KZZ-900
HOSE, RADIATOR (UPPER)
$21.26¢10 632
1
#012
19067-KZZ-900
HOSE, RADIATOR (LOWER)
$30.73¢15 364
1
#013
19080-KZZ-J01
MOTOR ASSY., FAN (TOYO)
$99.61¢49 807
1
#014
19091-KZZ-900
COLLAR, RADIATOR MOUNTING
$1.54¢771
1
#015
19092-KZZ-900
WASHER, RADIATOR MOUNTING
$1.07¢535
1
#016
19101-KZZ-J00
TUBE, RESERVE TANK
$13.95¢6 975
1
#017
19105-KZZ-900
CAP ASSY., RESERVE TANK
$5.57¢2 783
1
#018
19107-MG8-000
GASKET, RESERVE TANK
$5.46¢2 731
1
#019
19110-KZZ-J00
TANK, RADIATOR RESERVE
$15.92¢7 958
1
#020
19150-KZZ-J00
STAY, RESERVE TANK
$60.57¢30 285
1
#021
19517-ML7-691
CLAMP, HOSE (22-29MM)
$12.41¢6 204
1
#022
90110-KZZ-900
BOLT, FLANGE (6MM)
$0.89¢443
1
#023
90120-KCR-003
BOLT-WASHER (6X16)
$4.90¢2 449
1
#024
90303-KZZ-J00
NUT, CLIP (6MM)
$1.51¢753
1
#025
93901-22020
SCREW, TAPPING (3X6)
$1.07¢535
1
#026
90315-MFL-003
NUT, FLANGE (3MM)
$2.75¢1 374
1
#027
95002-02100
CLIP, TUBE (B10)
$2.24¢1 121
1
#028
19102-KZZ-J00
TUBE, RESERVE TANK (DRAIN)
$14.31¢7 153
1
#029
95701-06010-00
BOLT, FLANGE (6X10)
$1.49¢747
1
#030
96001-06028-00
BOLT, FLANGE (6X28)
$2.56¢1 282
1
