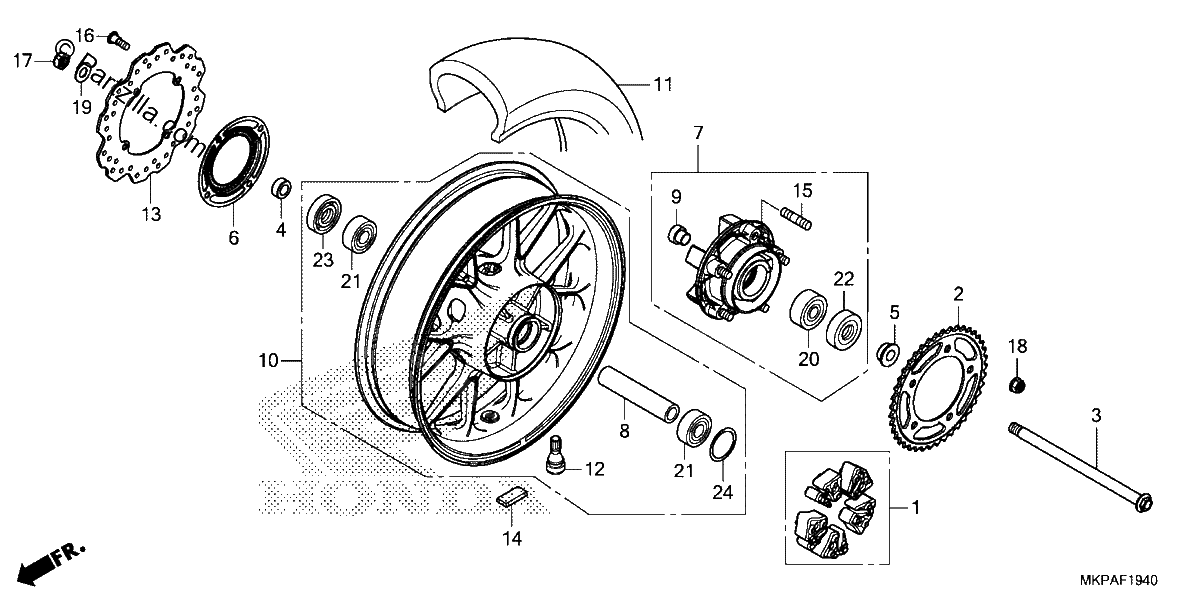

REAR WHEEL
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#001
DAMPER SET, WHEEL
$67.19¢33 594
#002
SPROCKET, FINAL DRIVEN (41T)
$71.80¢35 900
#003
AXLE, Rear WHEEL
$14.14¢7 069
#004
COLLAR, Rear BRAKE SIDE
$17.01¢8 506
#005
COLLAR, L Rear WHEEL SIDE
$18.79¢9 394
#006
RING, RR. PULSER
$61.60¢30 800
#007
FLANGE SUB-ASSY., RR. DRIVEN
$187.95¢93 975
#008
COLLAR, RR. AXLE DISTANCE
$16.35¢8 175
#009
COLLAR B, Rear AXLE DISTANCE
$10.49¢5 244
#010
WHEEL SUB-ASSY., RR. (TYPE2) (WL)
$530.02¢265 013
#010
WHEEL SUB-ASSY., RR. (TYPE1) (WL)
$530.02¢265 013
#011
TIRE, Rear. (160/60ZR17 M/C 69W)(DUNLOP)
$303.52¢151 763
#012
VALVE, RIM (IRC)
$10.15¢5 075
#013
DISK, Rear BRAKE (SUNSTAR)
$98.09¢49 044
#014
WEIGHT, BALANCE (20G)
$5.22¢2 613
#014
WEIGHT, BALANCE (10G)
$3.91¢1 956
#014
WEIGHT, BALANCE (15G)
$4.68¢2 338
#015
BOLT, STUD (12X25)
$4.86¢2 431
#016
BOLT, DISK (8X25)
$3.65¢1 825
#017
NUT, U (16MM)
$19.01¢9 506
#018
NUT, U (12MM) (FUJI SEIMITSU)
$3.30¢1 650
#019
WASHER, PLAIN (16.4X32X2)
$1.93¢963
#020
BEARING, RADIAL BALL (6304UU)
$37.33¢18 663
#021
BEARING, RADIAL BALL (6303UU) (NSK)
$44.49¢22 244
#022
DUST SEAL (30X52X7)
$16.20¢8 100
#023
DUST SEAL (30X47X8) (ARAI)
$14.09¢7 044
#023
DUST SEAL (30X47X8) (NOK)
$14.09¢7 044
#024
O-RING (55X2)
$3.65¢1 825
