FRONT FORK 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

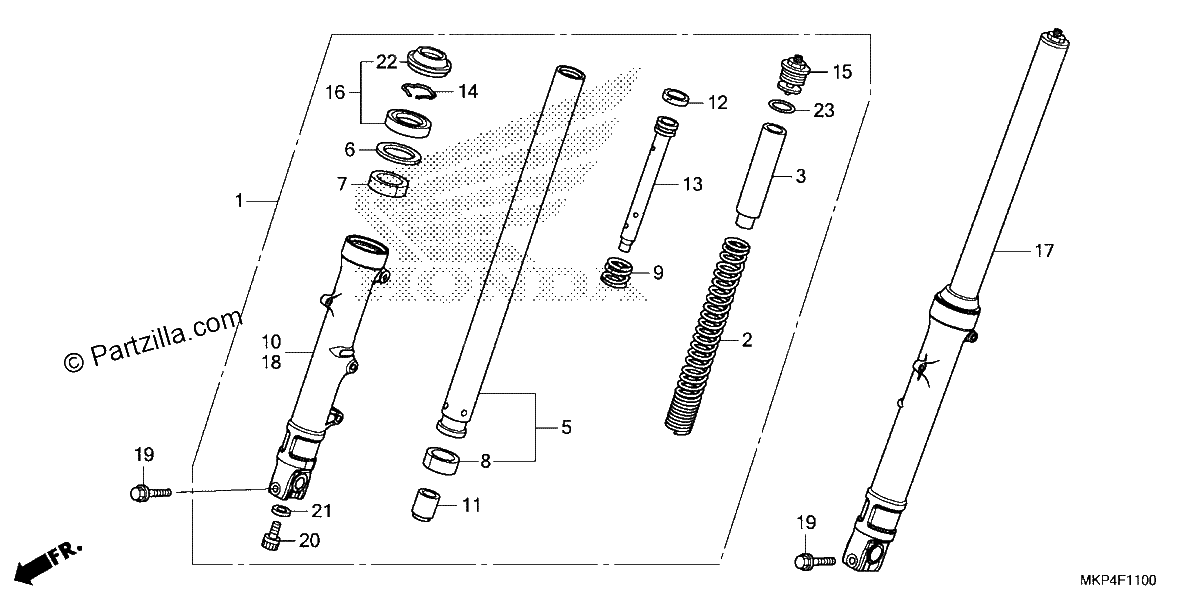

Diagrama de FRONT FORK 1

Repuestos

#001
51400-MKP-J81
FORK ASSY., R. FR. (SHOWA)
$517.15¢258 575
1
#002
51401-MKP-J81
SPRING, FR. FORK
$45.43¢22 713
1
#003
51402-MGZ-J01
COLLAR, SPRING
$20.74¢10 369
1
#005
51410-MKP-J81
PIPE, FR. FORK
$90.19¢45 094
1
#006
51412-MB4-003
RING, BACK-UP (SHOWA)
$11.29¢5 644
1
#007
51414-MFJ-A51
BUSH, GUIDE
$8.80¢4 400
1
#008
51415-MFJ-A51
BUSH, SLIDER
$8.80¢4 400
1
#009
51416-KF0-003
SPRING, FR. REBOUND (SHOWA)
$9.36¢4 681
1
#010
51420-MKP-J81
CASE, R. (LOWER)
$185.23¢92 613
1
#011
51432-MV9-003
PIECE, OIL LOCK (SHOWA)
$28.82¢14 413
1
#012
51437-KV3-701
RING, PISTON
$8.73¢4 363
1
#013
51440-MKP-J81
PIPE, SEAT
$14.30¢7 150
1
#014
51447-KA4-711
RING, OIL SEAL STOPPER (SHOWA)
$5.47¢2 738
1
#015
51450-MR8-003
BOLT ASSY., FR. FORK
$146.31¢73 156
1
#016
51490-MKL-D81
SEAL SET, FR. FORK
$29.18¢14 588
1
#017
51500-MKP-J81
FORK ASSY., L. FR. (SHOWA)
$509.45¢254 725
1
#018
51520-MKP-J81
CASE, L. (LOWER)
$185.70¢92 850
1
#019
90109-MR7-000
BOLT, FLANGE (8X45)
$5.99¢2 994
1
#020
90116-KV3-701
BOLT, SOCKET (8MM) (SHOWA)
$4.71¢2 356
1
#021
90544-283-000
WASHER, SPECIAL (8MM) (SHOWA)
$3.65¢1 825
1
#022
91251-MKL-D81
DUST SEAL
$12.39¢6 194
1
#023
91356-KF0-003
O-RING (33.2X2.4)
$4.56¢2 281
1
